Elevance® Delivery Sota Camera Kits
|
Mounted To |
Elevance® Standard Delivery | Elevance® Continental-Style Delivery |
| Serial Number | All | All |
No longer in production. Some service parts may not be available for this product.

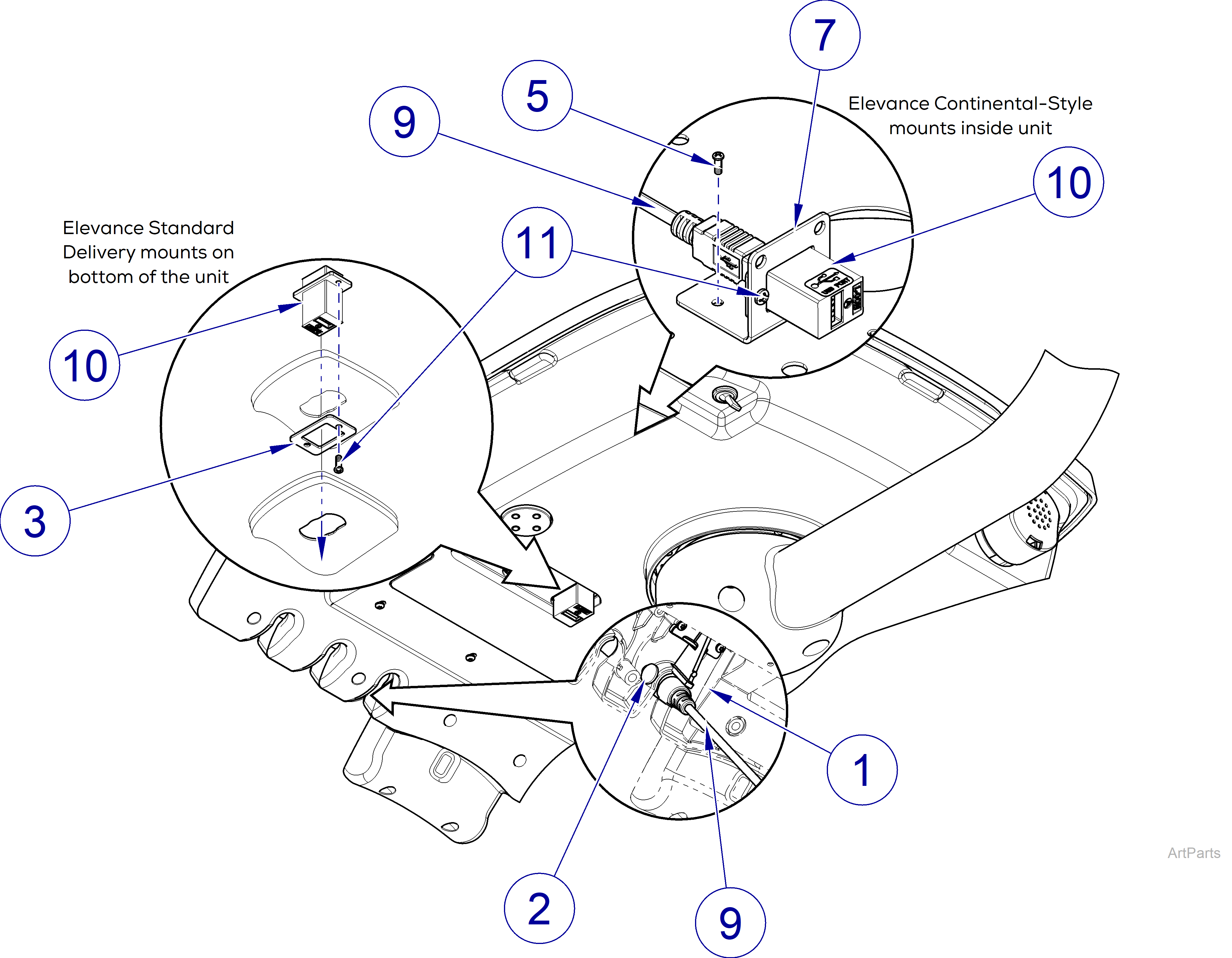

| Elevance® Delivery Sota Camera Kits | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-4207-00 | Holder Assembly | 1 |
|
2 |
016-1155-00 |
Magnet | NLA |
|
3 |
050-7181-00 | Mount Bracket | 1 |
|
4 |
064-0026-00 |
Gasket Maker - Not Shown | NSS |
|
5 |
040-0006-97 | Pan Heads Phillips Screw | 1 |
|
6 |
016-0958-01 | Magnet - Pressed into top cover - Not Shown | 2 |
|
7 |
050-8725-00-216 | Mount Bracket | 1 |
|
8 |
015-0013-02 | Cable Tie - Not Shown | AR |
|
9 |
002-1096-00 |
Camera Kit - Includes cord and handpiece | NLA |
|
10 |
015-3083-00 | USB Port | 1 |
|
11 |
042-0168-00 | Screw | 2 |
|
12 |
015-2945-02 | USB Cable Extension - Not Shown | 1 |
|
13 |
153783-001 |
Elevance® Standard Delivery Sota Camera - Includes Items 1 thru 4, 9 thru 12 | NLA |
|
14 |
153913-001 |
Elevance® Continental-Style Delivery Sota Camera - Includes Items 5 thru 8, 9 thru 12 | NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
