Elevance® Delivery Bien Air Dual Electric Handpiece Assembly
|
Mounted To |
Elevance® Dental Chair |
| Serial Number | V2200 thru Present |

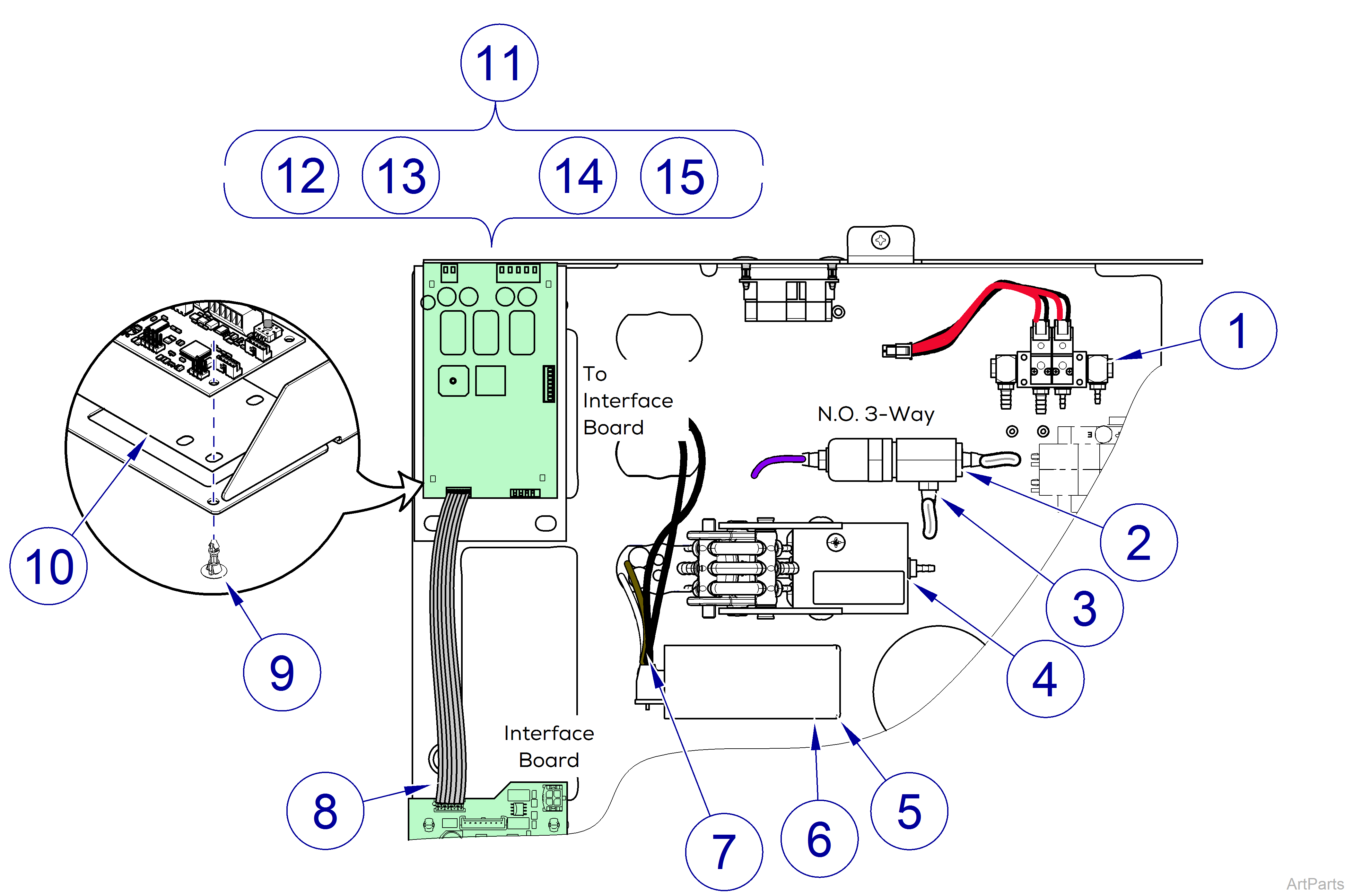

| Elevance® Delivery Bien Air Dual Electric Handpiece Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-2067-00 | Endo Dual, Solenoid Valve Kit - Normally Open, N.O. | 1 |
|
2 |
029-3519-00 | Pilot Valve - Includes gasket 117660 and fitting 109714 | 1 |
|
3 |
117349 | Fitting #10-32 x 1/8 | 3 |
|
4 |
002-1941-00 | Kink Valve | 1 |
|
5 |
053-0105-33 | Loop Fastener | 1 |
|
6 |
053-0131-31 | Hook Fastener | 1 |
|
7 |
176396 |
Black Wire | NSS |
|
8 |
015-2226-00 | Ribbon Harness | 1 |
|
9 |
053-1920-00 | Standoff | 1 |
|
10 |
053-2166-02 | PCB Barrier | 4 |
|
11 |
002-1472-00 |
Dual Electric Motor Kit - Includes items 12 thru 19 | NSS |
|
12 |
015-2990-00 | Surf Motor Tubing, MX2 - Not Shown | 2 |
|
13 |
015-2989-00 | Motor, MX2 - Not Shown | 2 |
|
14 |
015-2988-00 |
PC Board DMX2 Pro | NSS |
|
15 |
015-2954-00 | Board Module 24V - 32V | 1 |
|
16 |
015-2960-00 | Board Relay - Not Shown | 1 |
|
17 |
015-3387-00 |
Analog Cable - Not Shown | NSS |
|
18 |
029-2544-00 | Shuttle Valve - Not Shown | 1 |
|
19 |
015-2961-00 | Bleed Valve - Not Shown | 1 |
|
20 |
015-1581-00 | EMI Suppression Core - Not Shown | 1 |
|
21 |
002-10665-00 | Actuator Assembly - Not Shown | 1 |
|
22 |
014-0374-00 | Barb Fitting 1/8 X 1/8 - Not Shown | 1 |
|
23 |
014-0735-00 | Check Valve - Not Shown | 1 |
|
24 |
014-0598-00 | Barbed Tee Fitting 1/16 x 1/8 - Not Shown | 3 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
