Elevance® Standard Delivery and Elevance® Continental-Style Delivery Satelec Scaler
|
Mounted To |
Elevance® Dental Chair |
| Serial Number | All |

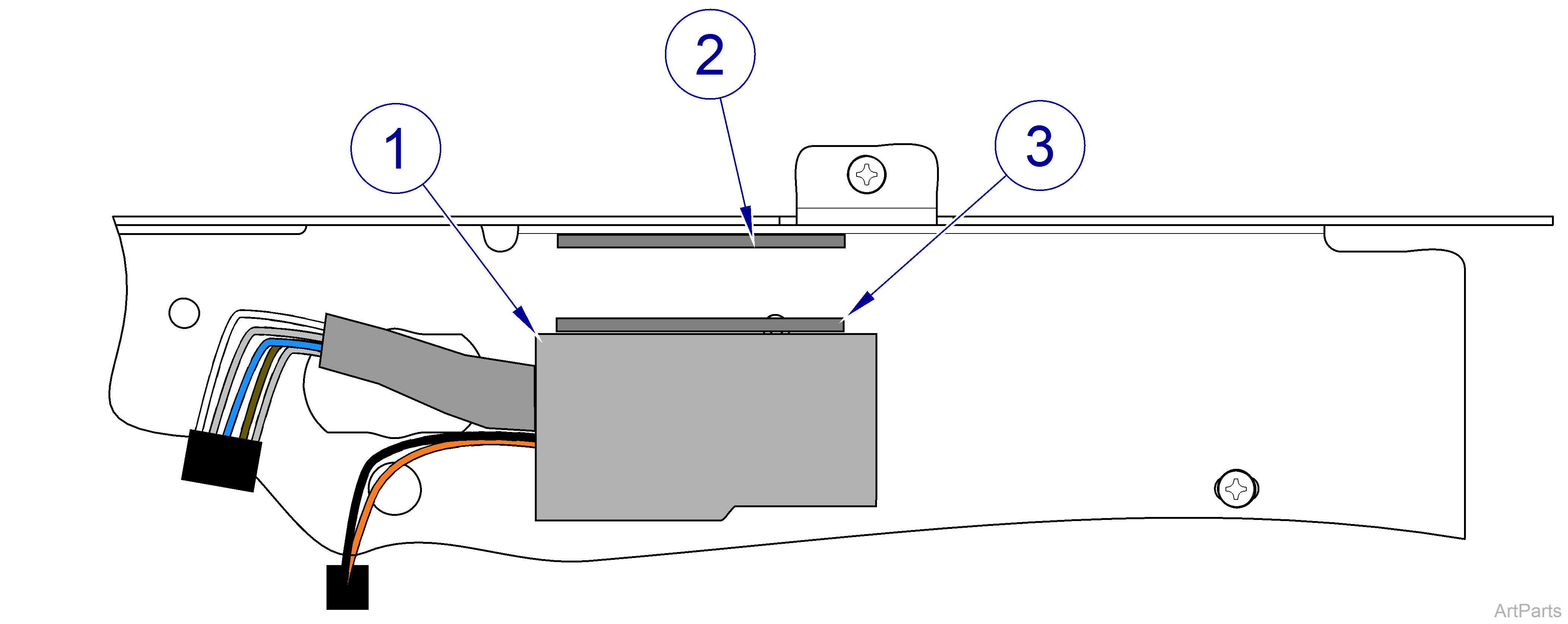

| Elevance® Standard Delivery Satelec Scaler | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
| 153782-001 | Satelec Scaler - No LED | 1 | |
| 153782-002 | Satalec Scaler - w/ LED | 1 | |
|
1a |
Satelec Scaler Kit Options | ||
| 002-1547-00 | Satelec Scaler Kit - Includes handpiece, cover, and controller harness - No LED | 1 | |
| 002-1547-01 | Satelec Scaler Kit - Includes handpiece, cover, and controller harness - w/ LED | 1 | |
|
2 |
053-0105-33 | Loop Fastener | 1 |
|
3 |
053-0131-31 | Hook Fastener | 1 |
|
4 |
002-1941-00 | Kink Valve Assembly - Not Shown | 1 |
|
5 |
002-10665-00 | Actuator Assembly - Not Shown | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
| Elevance® Continental-Style Delivery Satelec Scaler | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
| 153922-001 | Satelec Scaler - Includes items 1 thru 11 - No LED | 1 | |
| 153922-002 | Satelec Scaler - Includes items 1 thru 11 - w/ LED | 1 | |
|
1 |
Satelec Scaler Kit Options | ||
| 002-1547-00 | Satelec Scaler Kit - Includes handpiece, cover, and controller harness - No LED | 1 | |
| 002-1547-01 | Satelec Scaler Kit - Includes handpiece, cover, and controller harness - w/ LED | 1 | |
|
2 |
053-0105-33 | Loop Fastener | 1 |
|
3 |
053-0131-31 | Hook Fastener | 1 |
|
4 |
002-1941-00 | Kink Valve Assembly - Not Shown | 1 |
|
5 |
029-5594-00 | Actuator Assembly - Not Shown | 1 |
| 6 | Strain Relief | 1 | |
| 7 | Hinge Pivot | 1 | |
| 8 | Hinge Bearing | 2 | |
| 9 | Tension Spring | 1 | |
| 10 | Linkage | 1 | |
| 11 | Screw | 2 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
