Delivery Standard Syringes

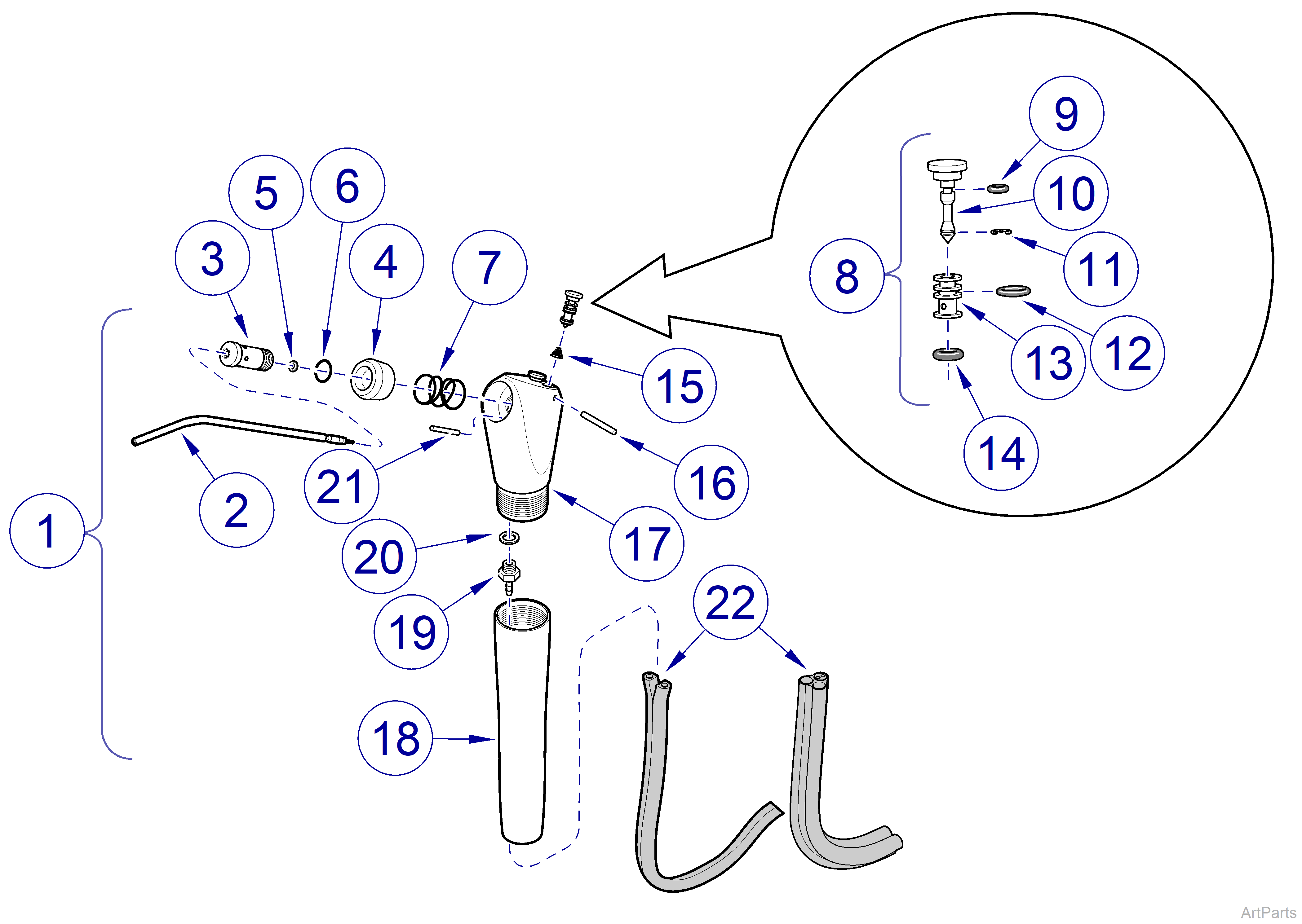

Quick Clean Standard Syringe
| Delivery Standard Syringe - Quick Clean | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
120795 | Quick Clean Standard Syringe - includes items 2 thru 21 | 1 |
|
2 |
120514 | Syringe Tip - DCI# 3060 | 1 |
|
3 |
016-1029-00 | Tip Adapter Assembly - DCI# 3065 - includes item 4 | 1 |
|
4 |
Tip Collar | NSS | |
|
5 |
016-0991-00 | O-ring - DCI# 2255 - Package of 12 | 1 |
|
6 |
016-0991-04 | O-ring - DCI# 2202 - Package of 12 | 1 |
|
7 |
016-0989-00 | Tip Adapter Spring- DCI# 9677 | 1 |
|
8 |
152055 | Button Cartridge Kit - Includes Items 9 thru 14 | 1 |
|
9 |
016-0991-01 | O-ring - DCI# 2211 - Package of 12 | 2 |
|
10 |
120903 | Button Valve - DCI# 3085 | 2 |
|
11 |
016-0990-00 | Retaining Ring - DCI# 9601 | 2 |
|
12 |
016-0991-03 | O-ring - DCI# 2212 - Package of 12 | 2 |
|
13 |
Valve | NSS | |
|
14 |
016-0991-02 | O-ring - DCI# 2203 - Package of 12 | 2 |
|
15 |
016-1032-00 | Syringe Button Spring- DCI# 9670 | 1 |
|
16 |
016-0988-00 | Pin - DCI# 9648 | 1 |
|
17 |
Syringe Body | NSS | |
|
18 |
016-1031-00 | Syringe Handle - DCI# 3491 | 1 |
|
19 |
Barb Fitting - DCI# 0084 - Package of 10 | NSS | |
|
20 |
Sealing Gasket- DCI# 0085 - Package of 10 | NSS | |
|
21 |
016-1030-00 | Tip Adapter Pin- DCI# 9659 | 1 |
|
22 |
Refer to: | Syringe Tubing | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

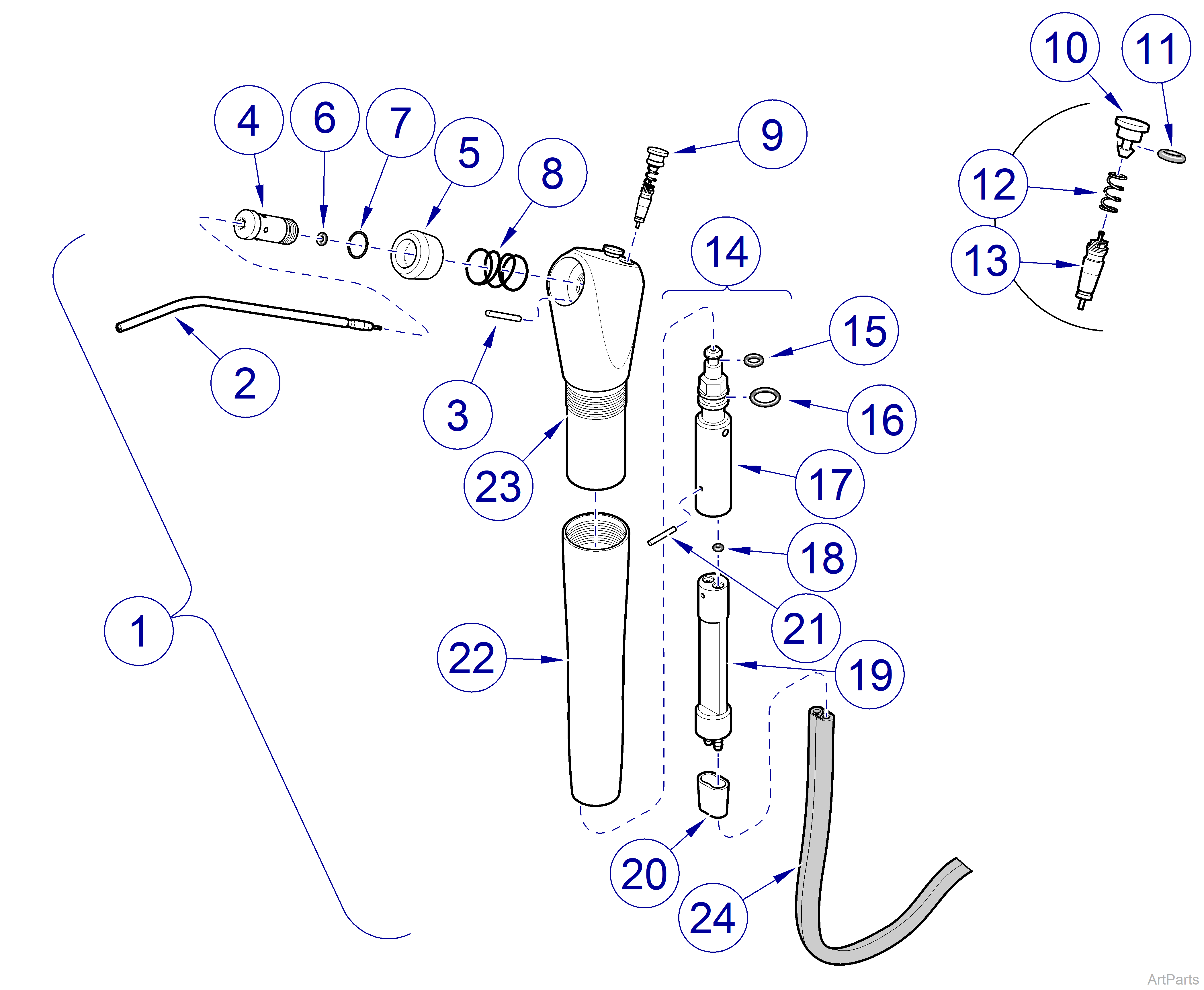

AutoClavable Standard Syringe
| Delivery Standard Syringes - AutoClavable | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
016-0934-01 | AutoClavable Standard Syringe - includes items 2 thru 23 | 1 |
|
2 |
120514 | Syringe Tip - DCI# 3060 | 1 |
|
3 |
016-1030-00 | Tip Adapter Pin- DCI# 9659 | 1 |
|
4 |
Tip, AutoClavable Adapter Assembly - DCI# 3071 - includes item 5 | NSS | |
|
5 |
Tip Collar | NSS | |
|
6 |
O-ring - DCI# 2252 - Package of 12 | NSS | |
|
7 |
O-ring - DCI# 2259 - Package of 12 | NSS | |
|
8 |
Tip Adapter Spring- DCI# 9677 | NSS | |
|
9 |
Button Cartridge Kit - DCI# 3077 - includes items 10 thru 13 | NSS | |
|
10 |
Button | NSS | |
|
11 |
O-ring - DCI# 2266 - Package of 12 | NSS | |
|
12 |
Syringe Button Spring- DCI# 9674 | NSS | |
|
13 |
Valve Core - DCI# 3090 - Package of 10 | NSS | |
|
14 |
Quick Disconnect Assembly - DCI# 3320 - includes items 15 thru 21 | NSS | |
|
15 |
016-0991-02 | O-ring - DCI# 2203 - Package of 12 | 1 |
|
16 |
O-ring - DCI# 2260 - Package of 12 | NSS | |
|
17 |
Quick Disconnect Housing | NSS | |
|
18 |
O-ring - DCI# 2230 - Package of 12 | NSS | |
|
19 |
Quick Disconnect Piston | NSS | |
|
20 |
Tubing Sleeve - DCI# 3036 | NSS | |
|
21 |
Pin | NSS | |
|
22 |
016-1029-00 | AutoClavable Syringe Handle- DCI# 3074 | 1 |
|
23 |
016-1030-00 | AutoClavable Syringe Body | 1 |
|
24 |
Refer to: | Syringe Tubing | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

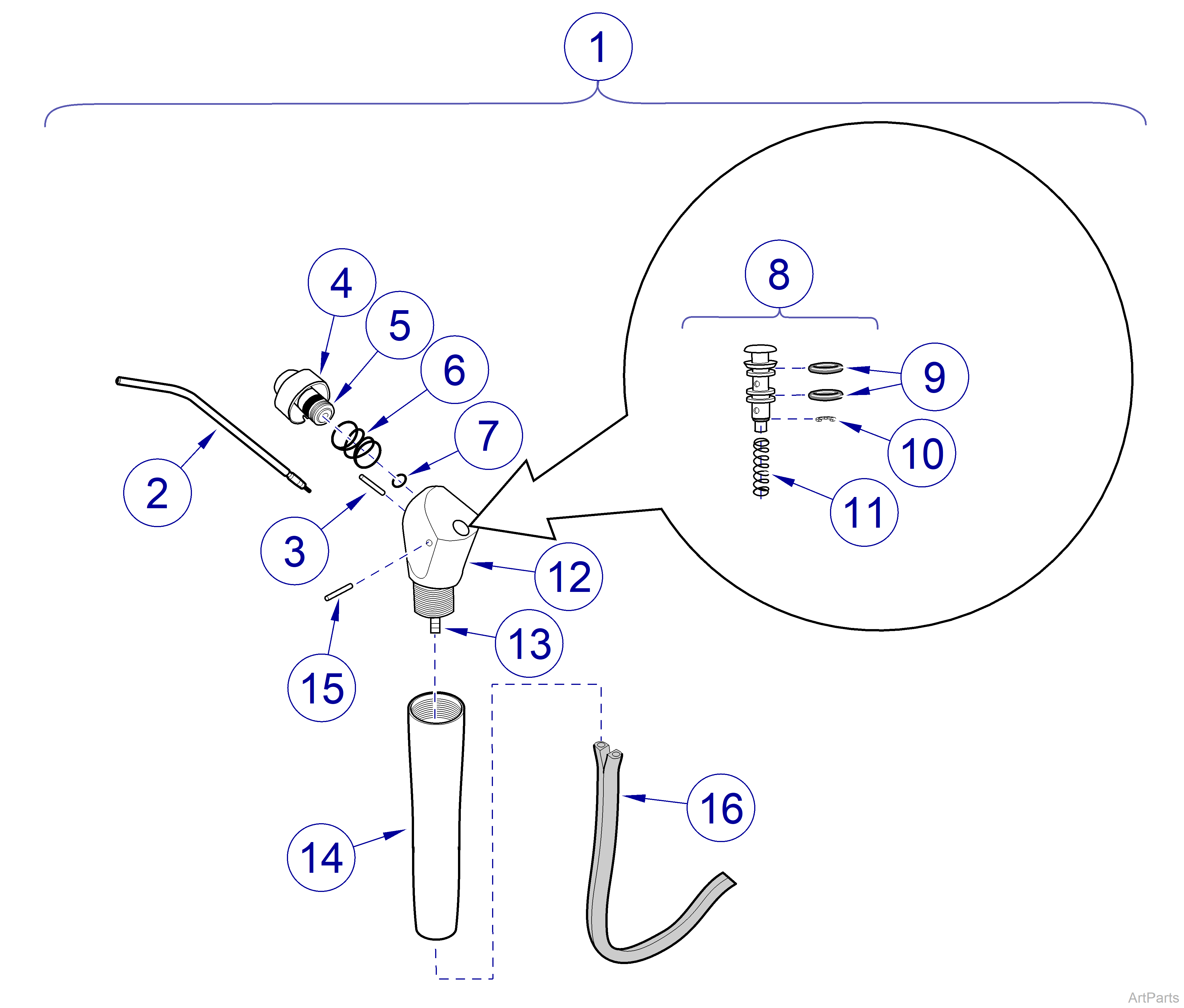

Precision Comfort® One-Button Syringe
| Delivery Standard Syringes - Precision Comfort | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
016-1753-00 | One-Button Syringe - includes items 2 thru 15 | 1 |
|
2 |
Syringe Tip - DCI # 3180 or 3060 | NSS | |
|
3 |
016-1030-00 | Tip Adapter Pin - DCI # 9659 | 1 |
|
4 |
016-1029-00 | Tip Adapter Assembly - DCI # 3065 | 1 |
|
5 |
016-0991-04 | O-Ring - DCI # 2202 | 1 |
|
6 |
016-0989-00 | Tip Adapter Spring - DCI # 9677 | 1 |
|
7 |
O-Ring (DCI # 2201) | NSS | |
|
8 |
Button Assembly - DCI # 3625 | NSS | |
|
9 |
O-Ring - DCI # 2301 | NSS | |
|
10 |
Retaining Ring - DCI # 3633 | NSS | |
|
11 |
Syringe Button Spring | NSS | |
|
12 |
Syringe Body | NSS | |
|
13 |
10-32 Barb and Washer - DCI # 0075 | NSS | |
|
14 |
016-1031-00 | Syringe Handle - DCI # 3491 | 1 |
|
15 |
016-0988-00 | Pin - DCI # 9648 | 1 |
|
16 |
Refer to: | Syringe Tubing | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
