Delivery Continental Syringes

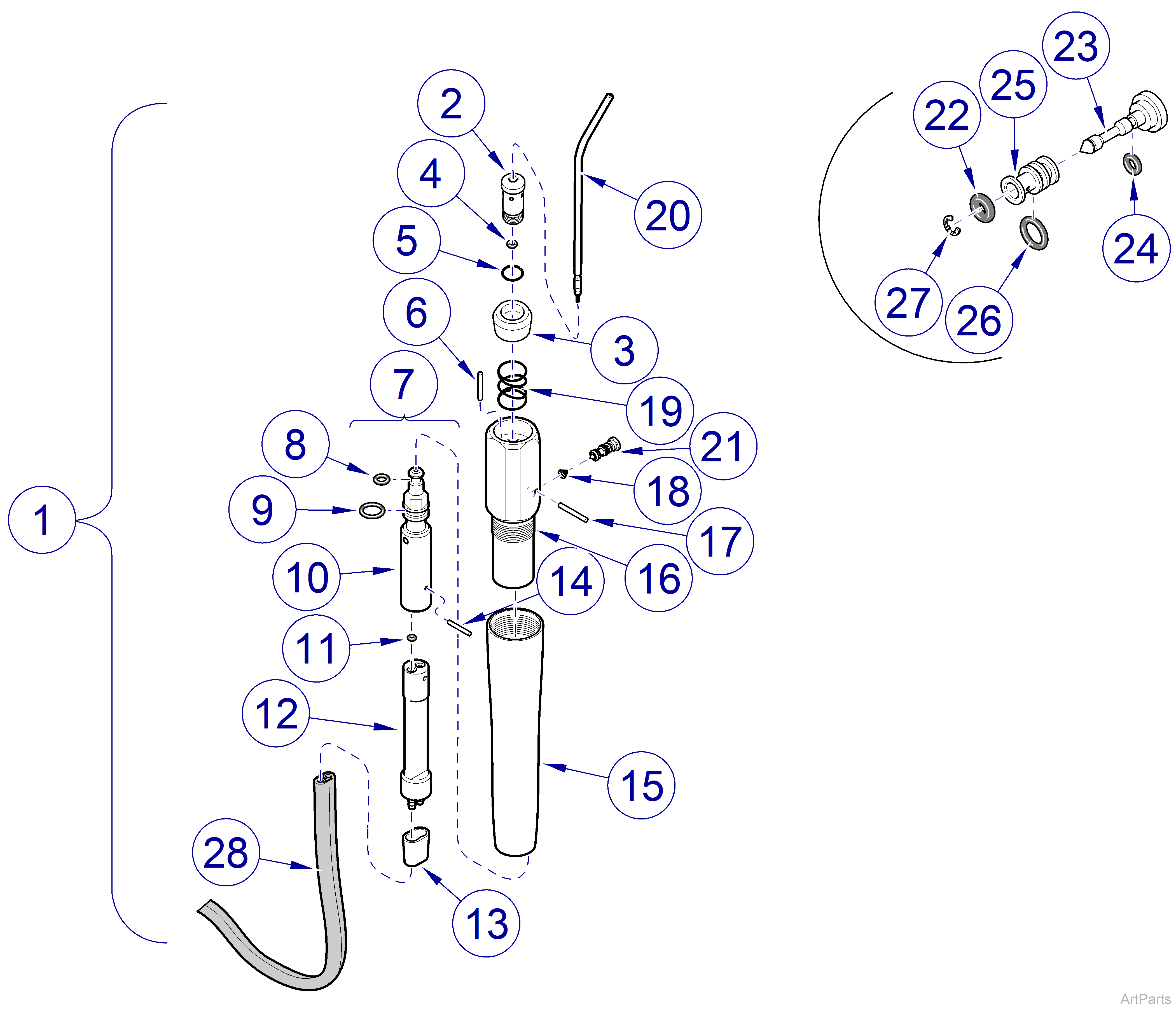

Quick Clean Continental Syringe
| Delivery Continental Syringes | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
120796 | Quick Clean Continental Syringe - includes items 2 thru 21 | 1 |
|
2 |
016-1029-00 | Tip Adapter Assembly - DCI# 3065 - includes item 3 | 1 |
|
3 |
Tip Collar | NSS | |
|
4 |
016-0991-00 | O-ring - DCI# 2255 - Package of 12 | 1 |
|
5 |
016-0991-04 | O-ring - DCI# 2202 - Package of 12 | 1 |
|
6 |
016-1030-00 | Pin, Tip Adaptor - DCI# 9659 | 1 |
|
7 |
Syringe Body | NSS | |
|
8 |
117660 | Sealing Gasket | 2 |
|
9 |
Barb Fitting - DCI# 0084 - Package of 10 | NSS | |
|
10 |
016-1031-00 | Syringe Handle - DCI# 3491 | 1 |
|
11 |
120514 | Syringe Tip | 1 |
|
12 |
016-0989-00 | Tip Adaptor Spring - DCI# 9677 | 1 |
|
13 |
152055 | Button Cartridge Kit - includes items 14 thru 19 | 1 |
|
14 |
016-0990-00 | Retaining Ring - DCI# 9601 | 2 |
|
15 |
120903 | Button Valve - DCI# 3085 | 2 |
|
16 |
016-0991-01 | O-ring - DCI# 2211 - Package of 12 | 2 |
|
17 |
Valve | NSS | |
|
18 |
016-0991-03 | O-ring - DCI# 2212 - Package of 12 | 2 |
|
19 |
016-0991-02 | O-ring - DCI# 2203 - Package of 12 | 2 |
|
20 |
016-1032-00 | Syringe Button Spring- DCI# 9670 | 1 |
|
21 |
016-0988-00 | Pin - DCI# 9651 | 1 |
|
22 |
Refer to: | Syringe Tubing | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

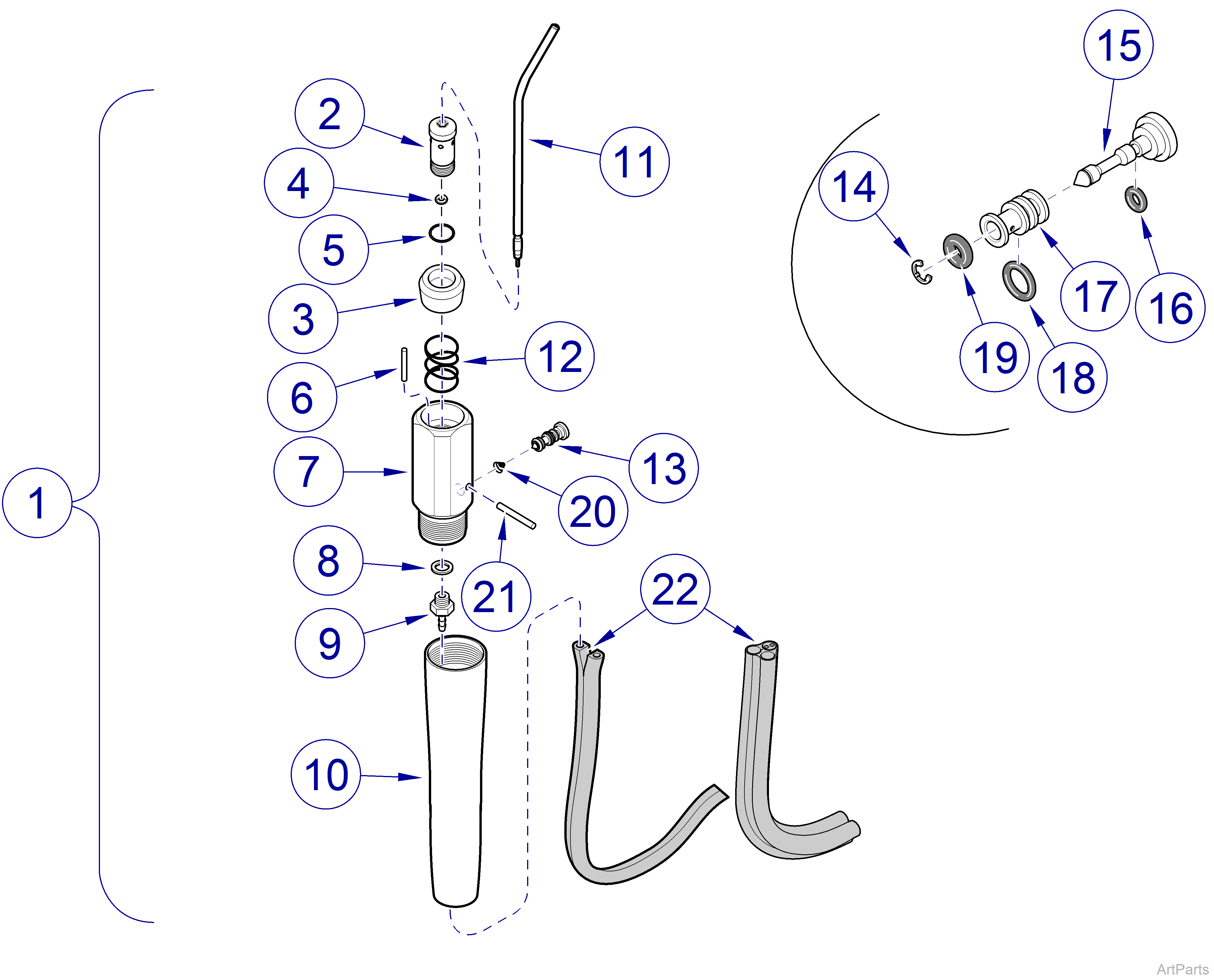

AutoClavable Continental Syringe
| Delivery Continental Syringes | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
016-0934-00 | AutoClavable Continental Syringe - includes items 2 thru 27 | 1 |
|
2 |
Tip, AutoClavable Adapter Assembly - DCI# 3071 - includes item 3 | NSS | |
|
3 |
Tip Collar | NSS | |
|
4 |
O-ring - DCI# 2252 - Package of 12 | NSS | |
|
5 |
O-ring - DCI# 2259 -Package of 12 | NSS | |
|
6 |
016-1030-00 | Tip Adaptor Pin- DCI# 9659 | 1 |
|
7 |
Quick Disconnect Assembly - DCI# 3320 - includes items 8 thru 14 | NSS | |
|
8 |
016-0991-02 | O-ring - DCI# 2203 - Package of 12 | 1 |
|
9 |
O-ring - DCI# 2260 - Package of 12 | NSS | |
|
10 |
Quick Disconnect Housing | NSS | |
|
11 |
O-ring - DCI# 2230 -Package of 12 | NSS | |
|
12 |
Quick Disconnect Piston | NSS | |
|
13 |
Tubing Sleeve - DCI# 3036 | NSS | |
|
14 |
Pin | NSS | |
|
15 |
016-0991-02 | AutoClavable Syringe Handle - DCI# 3074 | 1 |
|
16 |
Syringe Body, AutoClavable | NSS | |
|
17 |
Syringe Button Pin - DCI# 9651 | NSS | |
|
18 |
016-1032-00 | Syringe Button Spring - DCI# 9670 | 1 |
|
19 |
Tip Adaptor Spring - DCI# 9677 | NSS | |
|
20 |
120514 | Syringe Tip - DCI# 3060 | 1 |
|
21 |
Button Cartridge Kit - DCI# 3086 - includes items 22 thru 27 | NSS | |
|
22 |
O-ring - DCI# 2242 - Package of 12 | NSS | |
|
23 |
Button Cartridge | NSS | |
|
24 |
O-ring - DCI# 2263 - Package of 12 | NSS | |
|
25 |
Valve | NSS | |
|
26 |
O-ring - DCI# 2264 - Package of 12 | NSS | |
|
27 |
Retaining Ring - DCI# 9601 | NSS | |
|
28 |
Refer to: | Syringe Tubing | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
