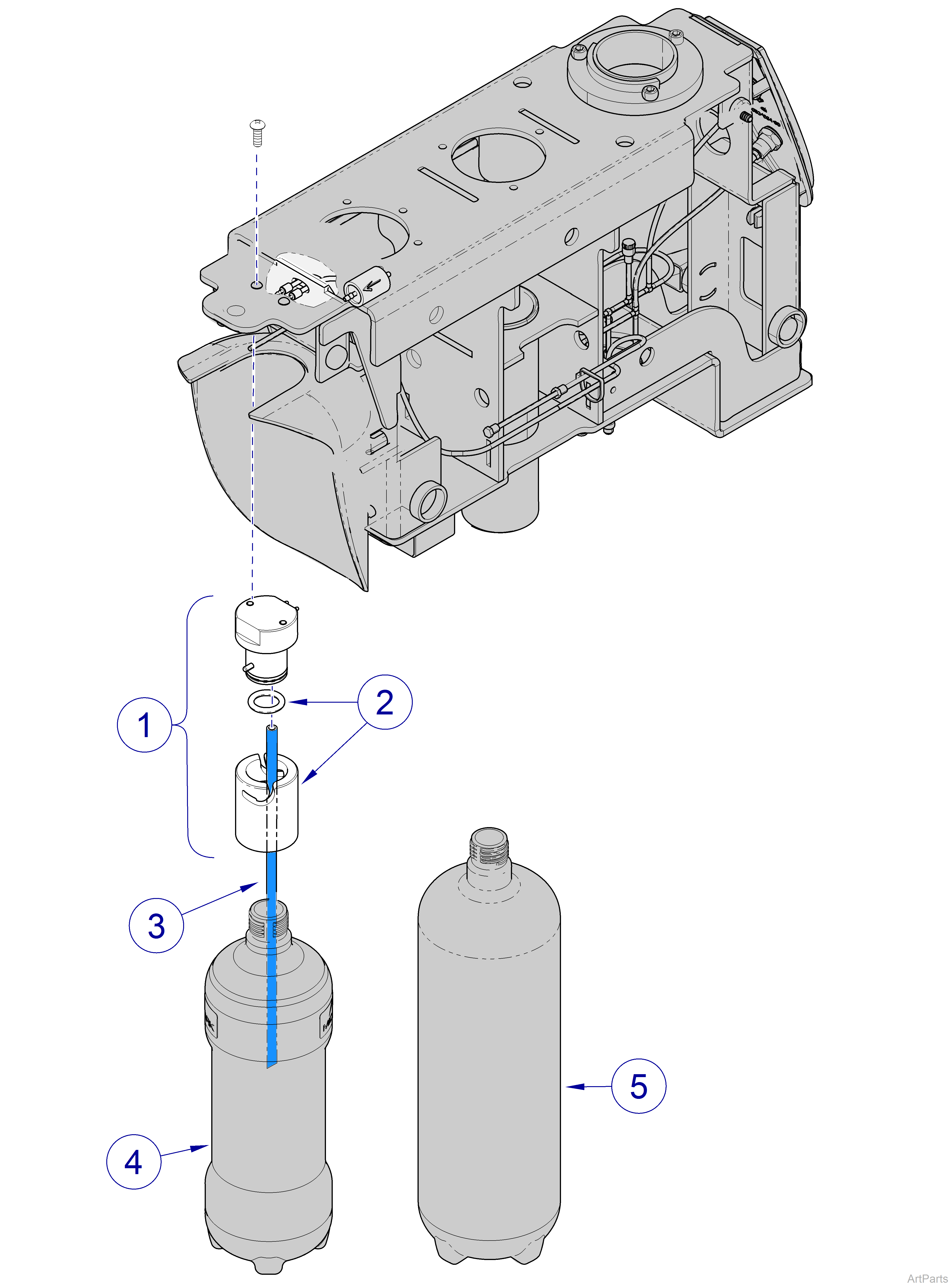

Elevance® Console Water Bottle Quick Disconnect Cap Assembly
|
Mounted To |
Elevance Chair |
| Serial Number | All |
| Elevance® Console Water Bottle Quick Disconnect Cap Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-3977-00 | Water Bottle Quick Disconnect Cap Assembly - Includes items 2 thru 3 | 1 |
|
2 |
029-7095-00 | Cap Assembly - Includes O-ring, 014-0176-52 | 1 |
|
3 |
177524 | 1/4” O.D. Tubing Blue | 1 ft. |
|
4 |
002-0777-00 | Ref. 1L Water Bottle Kit | 1 |
|
5 |
122830 | Ref. Optional Water Bottle, 2 Liter | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
