Elevance® Assistant's Unit Console Mounted Assistant’s Arm
|
Mounted To |
Elevance® Console |
| Serial Number | All |

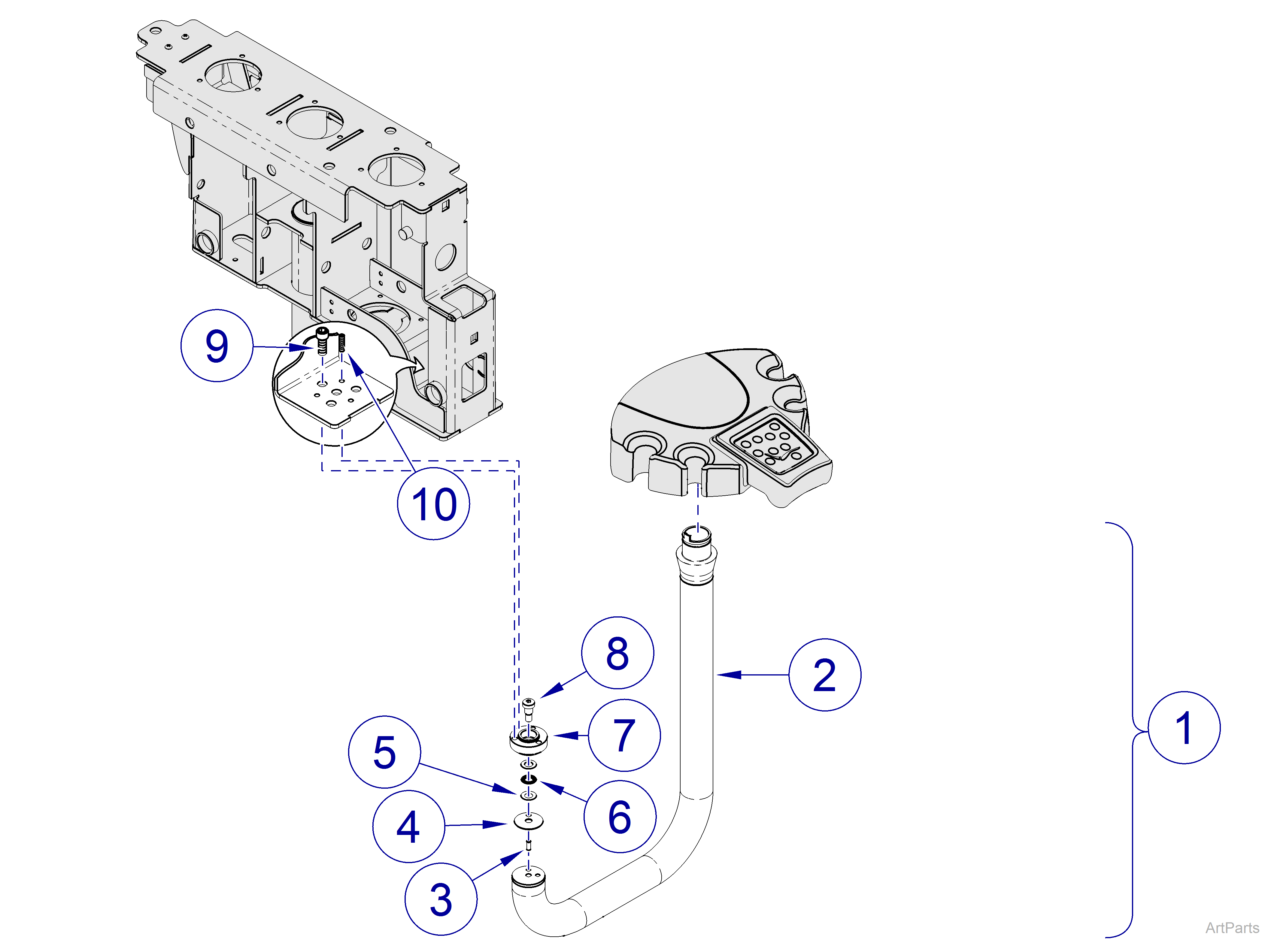

| Elevance® Assistant's Unit Console Mounted Assistant’s Arm | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-5370-00 |
Console Mounted Assistant’s Arm Assembly - includes items 2 - 8 |
NLA |
|
2 |
030-2003-00-216 |
Radius Arm | NLA |
|
3 |
042-0002-03 | Dowel Pin - Left Hand Shown - RH in Other Hole | 1 |
|
4 |
053-1116-00 | Washer - 1.75 O.D. x .06 Thick | 1 |
|
5 |
120712 | Washer | 2 |
|
6 |
110207 | Bearing - .502 I.D. x .927 O.D. | 1 |
|
7 |
057-0595-50 | Adapter Pivot | 1 |
|
8 |
117471 | Shoulder Screw - 3/8”-16 x 1.125 | 1 |
|
9 |
040-0375-76 | Bolt - Socket Head Cap Screw | 3 |
|
10 |
040-0250-12 | Set Screw | 3 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
