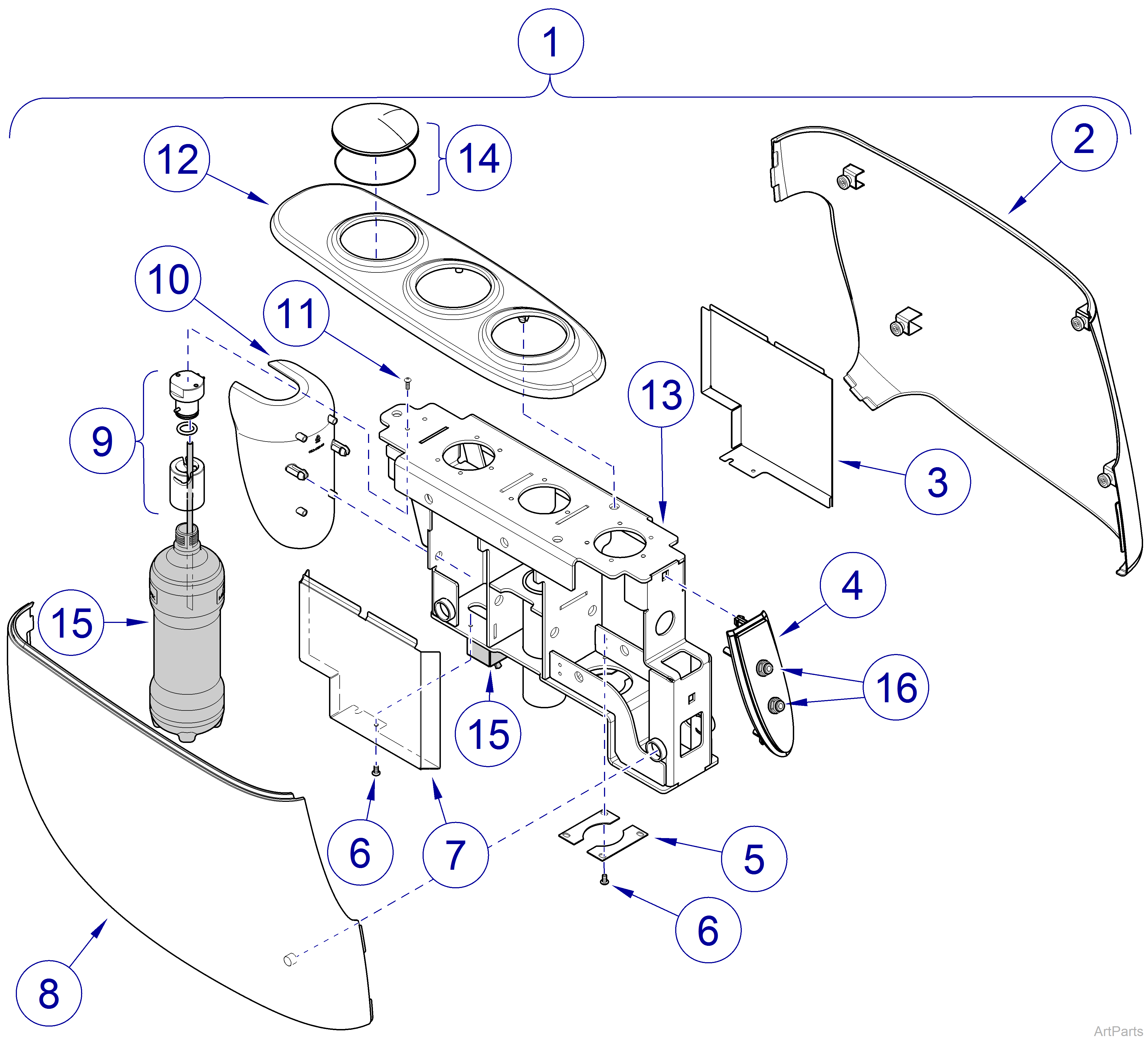

Elevance® Console Assembly
|
Mounted To |
Elevance Chair |
| Serial Number | All |
| Elevance® Console Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-3976-00 |
Console Assembly - Includes Items 2 thru 14 |
NLA |
|
2 |
029-4456-00 | LH Side Cover Assembly | 1 |
|
3 |
050-8360-01-216 | LH Metal Cover | 1 |
|
4 |
053-1884-00-216 | Front Cover | 1 |
|
5 |
120995-00 | Umbilical Retainer | 2 |
|
6 |
040-0010-109 | Screw #10-24 x 3/8” Pan Head Phillips | 6 |
|
7 |
050-8360-00-216 | RH Metal Cover | 1 |
|
8 |
029-4456-01 | RH Side Cover Assembly | 1 |
|
9 |
029-3977-00 | Quick Disconnect Cap Assembly | 1 |
|
10 |
053-1721-00-216 | Console Bottle Cover | 1 |
|
11 |
120385 | Screw #8-32 x 1/2” Pan Head Phillips | 2 |
|
12 |
053-1720-00-216 | Console Top Cover | 1 |
|
13 |
030-1679-00-216 |
Console Frame |
NLA |
|
14 |
002-1871-00 | Console Cap Assembly | AR |
|
15 |
Refer to: | - | |
|
16 |
Refer to: | Air / Water Quick Connect Couplers | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
