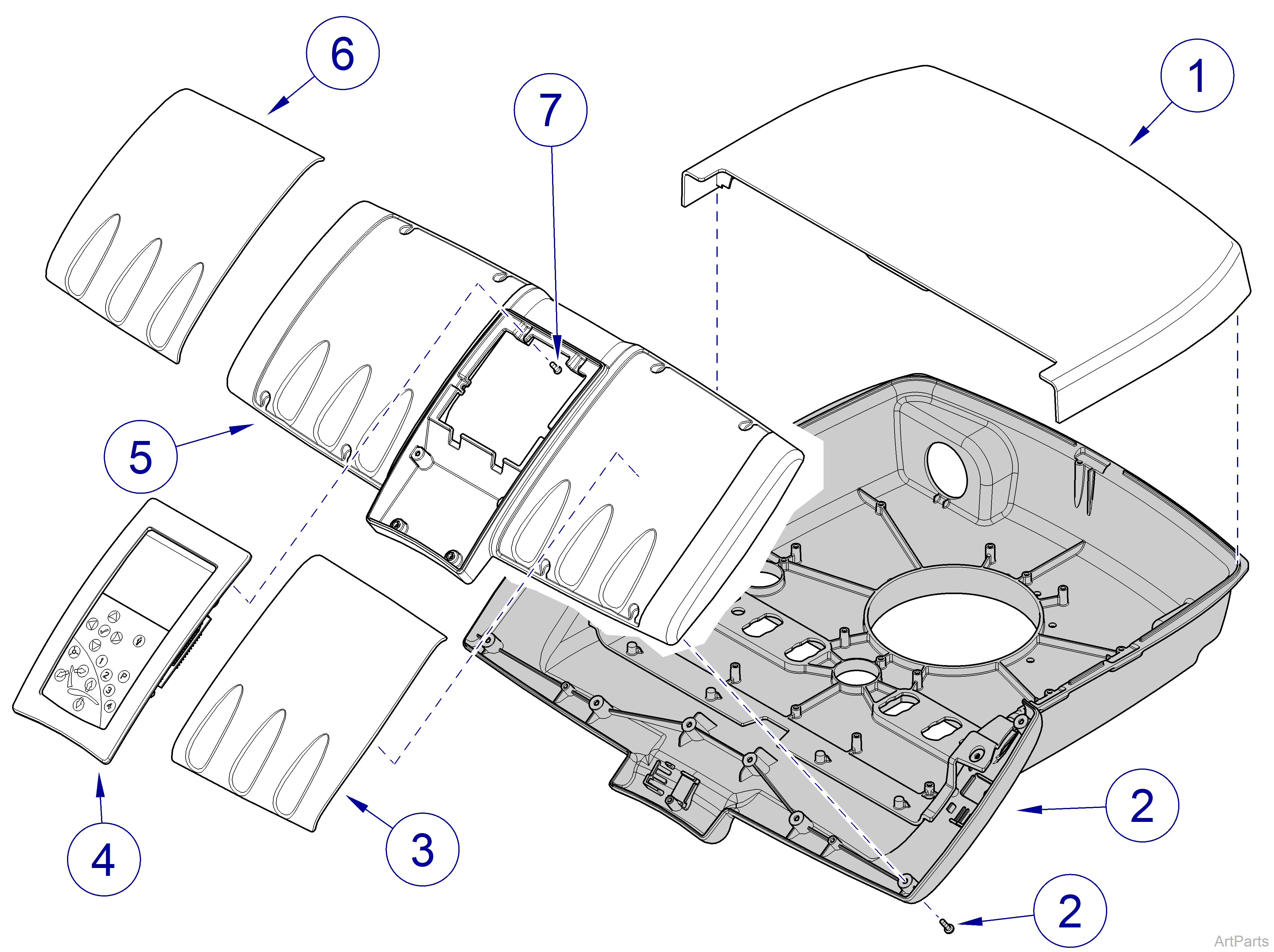

Elevance® Continental-Style Delivery Top Sub-Assembly and Lid
|
Model |
153800-003 |
| Serial Number | V1431117 thru Present |
| Elevance® Continental-Style Delivery Top Sub-Assembly and Lid | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-5596-00 | Lid Assembly | 1 |
|
2 |
Refer to: | Bottom Sub-Assembly | - |
|
3 |
053-2338-00-232 | Right Hand Tool Pad | 1 |
|
4 |
002-1593-06 | Integration Control Module® (ICM) Kit | 1 |
|
5 |
053-2334-00-216 | Top Cover | 1 |
|
6 |
053-2337-00-232 | Left Hand Tool Pad | 1 |
|
7 |
042-0168-00 | Screw M3.5 x 1.57 x 10mm | 8 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
