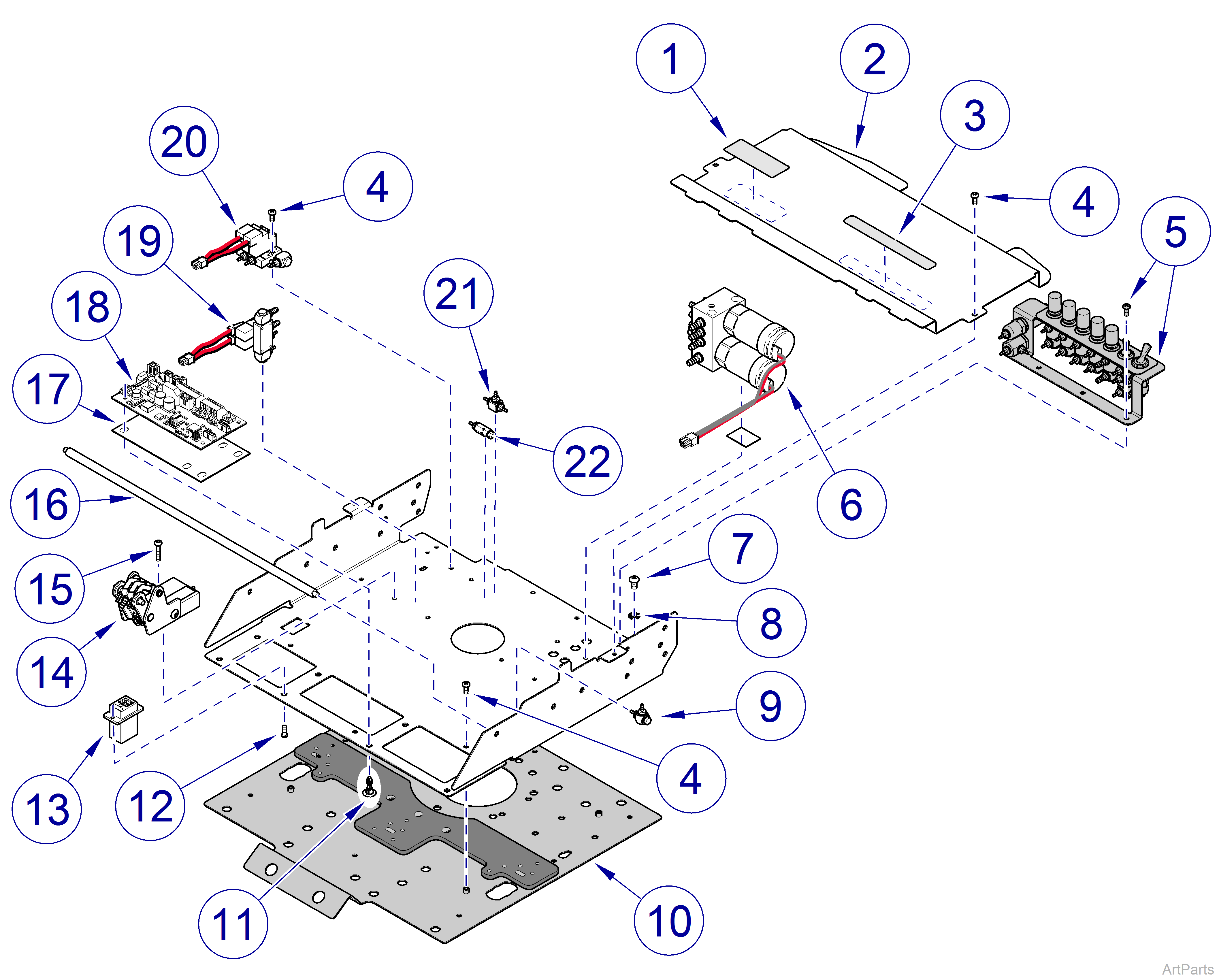

Elevance® Continental-Style Delivery Instrument Platform
Serial Number Range: V1431117 thru V2118037
|
Model |
153800-003 |
| Serial Number | V1431117 thru V2118037 |
| Elevance® Continental-Style Delivery Instrument Platform | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
061-1008-00 | Kink Valve Label | 1 |
|
2 |
050-8726-00-216 | Enclosure Lid | 1 |
|
3 |
061-0999-00 | ICM Label | 1 |
|
4 |
040-0006-97 | Screw 6-32 x 3/8” | 8 |
|
5 |
Refer to: | Control Valves | - |
|
6 |
002-2029-00 | Proportional Water Valve Replacement Kit | 1 |
|
7 |
040-0010-109 | Screw 10-24 x 3/8” | 1 |
|
8 |
P14718 | Lock Waster #10 | 1 |
|
9 |
029-5216-00 | Drive Air Bleed-off Tee Assembly | 1 |
|
10 |
Refer to: | Base Sub-Assembly | - |
|
11 |
053-2166-02 | PC Board Standoff | 4 |
|
12 |
042-0168-00 | Screw M3.5 x 1.57 | 2 |
|
13 |
015-3083-00 | B-A USB Adapter | 1 |
|
14 |
002-1941-00 | Kink Valve Kit - Includes Item 15 | 5 |
|
15 |
040-0006-73 | Screw 6-32 x 3/4” | 5 |
|
16 |
057-1334-00 | Tube Routing Bar | 1 |
|
17 |
053-1920-00 | PC Board Barrier | 1 |
|
18 |
002-1592-00 | PC Board Assembly | 1 |
|
19 |
002-2067-00 | Endo Valve Kit, Optional | 1 |
|
20 |
002-2073-00 | Dual Solenoid Valve Assembly | 1 |
|
21 |
117349 | Barb Fitting | 4 |
|
22 |
117660 | Gasket | 6 |
| 23 | 117351 | Brass Plug 10-32 | 2 |
| 24 | 029-3643-00 | Manifold Assembly w/ Quick Connect | 1 |
| 25 | 275184 | Foam Tape | AR |
| 26 | 029-2544-00 | Shuttle Valve | 1 |
| 27 | 117698 | Check Valve | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

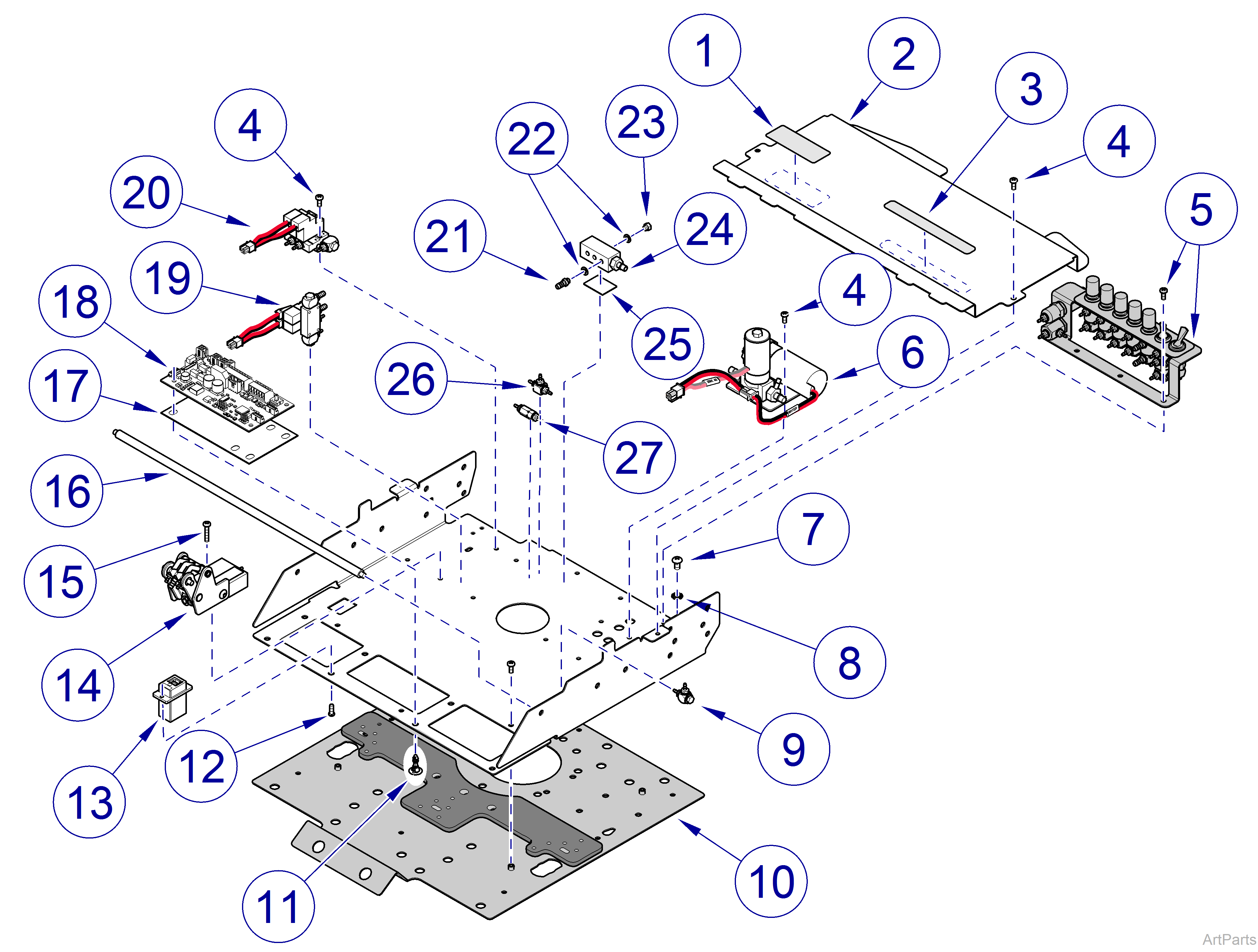

Serial Number Range: V2118037 thru V2216571
|
Model |
153800-003 |
| Serial Number | V2118037 thru V2216571 |
For water valve replacement only order 002-2029-00 replacement kit.
| Elevance® Continental-Style Delivery Instrument Platform | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
061-1008-00 | Kink Valve Label | 1 |
|
2 |
050-8726-00-216 | Enclosure Lid | 1 |
|
3 |
061-0999-00 | ICM Label | 1 |
|
4 |
040-0006-97 | Screw 6-32 x 3/8” | 6 |
|
5 |
Refer to: | Control Valves | - |
|
6 |
Air and Water Proportional Valve Assembly Kit - Includes Manifold Assembly and Hook and Loop Mounting Tabs |
1 | |
|
7 |
040-0010-109 | Screw 10-24 x 3/8” | 1 |
|
8 |
P14718 | Lock Waster #10 | 1 |
|
9 |
029-5216-00 | Drive Air Bleed-off Tee Assembly | 1 |
|
10 |
Refer to: | Base Sub-Assembly | - |
|
11 |
053-2166-02 | PC Board Standoff | 4 |
|
12 |
042-0168-00 | Screw M3.5 x 1.57 | 2 |
|
13 |
015-3083-00 | B-A USB Adapter | 1 |
|
14 |
002-1941-00 | Kink Valve Kit - Includes Item 15 | 5 |
|
15 |
040-0006-73 | Screw 6-32 x 3/4” | 5 |
|
16 |
057-1334-00 | Tube Routing Bar | 1 |
|
17 |
053-1920-00 | PC Board Barrier | 1 |
|
18 |
002-1592-00 | PC Board Assembly | 1 |
|
19 |
002-2067-00 | Endo Valve Kit, Optional | 1 |
|
20 |
002-2073-00 | Dual Solenoid Valve Assembly | 1 |
|
21 |
029-2544-00 | Shuttle Valve | 1 |
|
22 |
117698 | Check Valve | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

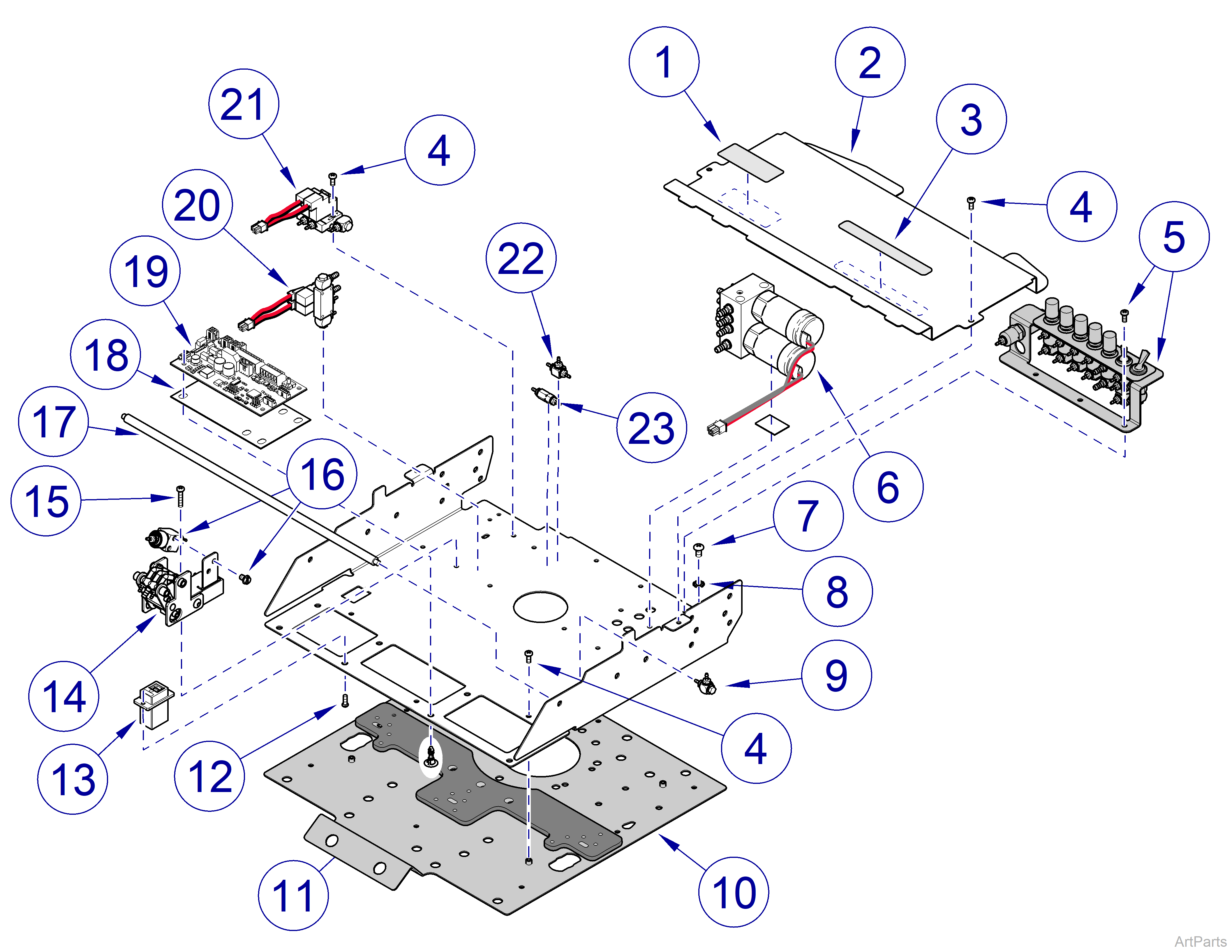

Serial Number Range: V2216572 thru Present
|
Model |
153800-003 |
| Serial Number | V2216572 thru Present |
For water valve replacement only order 002-2029-00 replacement kit.
| Elevance® Continental-Style Delivery Instrument Platform | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
061-1008-00 | Kink Valve Label | 1 |
|
2 |
050-8726-00-216 | Enclosure Lid | 1 |
|
3 |
061-0999-00 | ICM Label | 1 |
|
4 |
040-0006-97 | Screw 6-32 x 3/8” | 6 |
|
5 |
Refer to: | Control Valves | - |
|
6 |
Air and Water Proportional Valve Assembly Kit - Includes Manifold Assembly and Hook and Loop Mounting Tabs |
1 | |
|
7 |
040-0010-109 | Screw 10-24 x 3/8” | 1 |
|
8 |
P14718 | Lock Waster #10 | 1 |
|
9 |
029-5216-00 | Drive Air Bleed-off Tee Assembly | 1 |
|
10 |
Refer to: | Base Sub-Assembly | - |
|
11 |
053-2166-02 | PC Board Standoff | 4 |
|
12 |
042-0168-00 | Screw M3.5 x 1.57 | 2 |
|
13 |
015-3083-00 | B-A USB Adapter | 1 |
|
14 |
002-10493-00 | Kink Valve Kit - Includes Item 15 | 5 |
|
15 |
040-0006-125 |
Screw 6-32 x 3/4” | NSS |
|
16 |
2-Way Pilot Valve Kit | 1 | |
|
17 |
057-1334-00 | Tube Routing Bar | 1 |
|
18 |
053-1920-00 | PC Board Barrier | 1 |
|
19 |
002-1592-00 | PC Board Assembly | 1 |
|
20 |
002-2067-00 | Endo Valve Kit, Optional | 1 |
|
21 |
002-2073-00 | Dual Solenoid Valve Assembly | 1 |
|
22 |
029-2544-00 | Shuttle Valve | 1 |
|
23 |
117698 | Check Valve | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
