Elevance® Cuspidor Chair Mounting Arm
|
Mounted To |
Elevance Chair |
| Serial Number | V2200 thru Present |

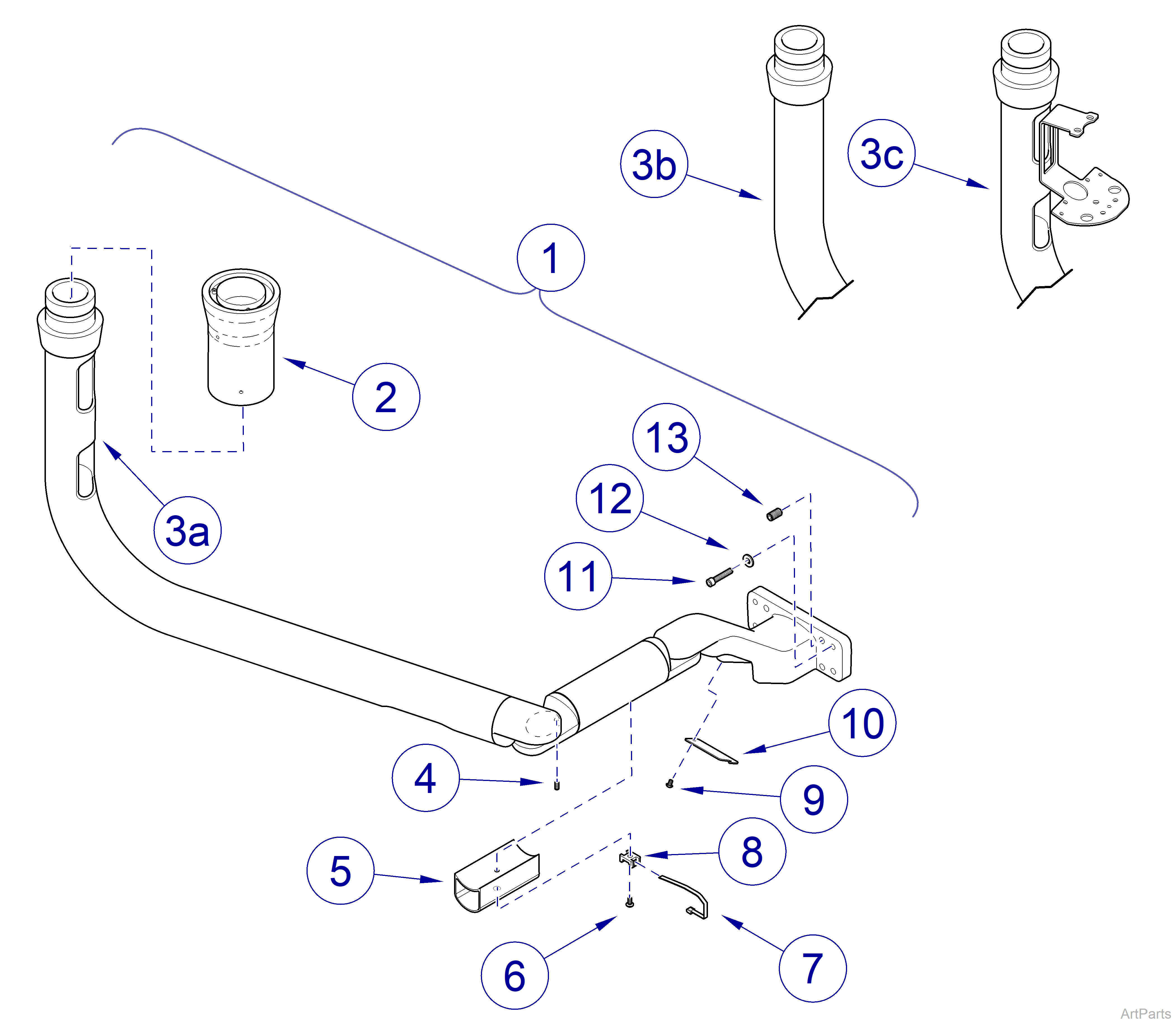

| Elevance® Cuspidor Chair Mounting Arm | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
| 1 | Rear Cuspidor Arm Assembly Options | ||
|
1a |
029-5213-00 |
With slot - Includes Items 2 thru 13 |
NLA |
| 1b |
029-5213-01 |
Without slot - Includes items 2 thru 4 and 9 thru 13 |
NLA |
| 1c |
029-5213-02 |
With slot for European Models - Includes Items 2 thru 4 and 9 thru 13 | NLA |
| 2 | LR Cuspidor Bearing Assembly Options | ||
|
2a |
LR Cuspidor Bearing Assembly - Used on 1a |
1 | |
| 2b | 029-4761-01 | LR Cuspidor Bearing Assembly - Used on 1b and 1c | 1 |
| 3 | LR Cuspidor Arm Weldment Options | ||
| 3a | LR Cuspidor Arm Weldment - Used on 1a | NSS | |
| 3b | LR Cuspidor Arm Weldment - Used on 1b | NSS | |
| 3c | LR Cuspidor Arm Weldment - Used on 1c | NSS | |
| 4 | 121428 | Set Screw - Nylon-tipped | 1 |
| 5 | 021-0079-00-216 | Tubing Containment Extrusion | 1 |
| 6 | 040-0010-109 | Screw #10-24 x 3/8" | 1 |
| 7 | 102308 | Cable Tie | 1 |
| 8 | 016-0889-00 | Cable Tie Mounting Platform | 1 |
| 9 | 040-0008-97 | Screw #8-32 Pan Head | 2 |
| 10 | 050-7601-00-216 | Rear Assistant’s Bottom Plate | 1 |
| 11 | 040-0250-135 | Cap Screw 1/4-20 x 1-1/4" | 4 |
| 12 | 045-0001-156 | Washer 1/4” Type ‘A’ Plain | 4 |
| 13 | 040-0375-83 | Set Screw 3/8-16 x 3/4” | 4 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
