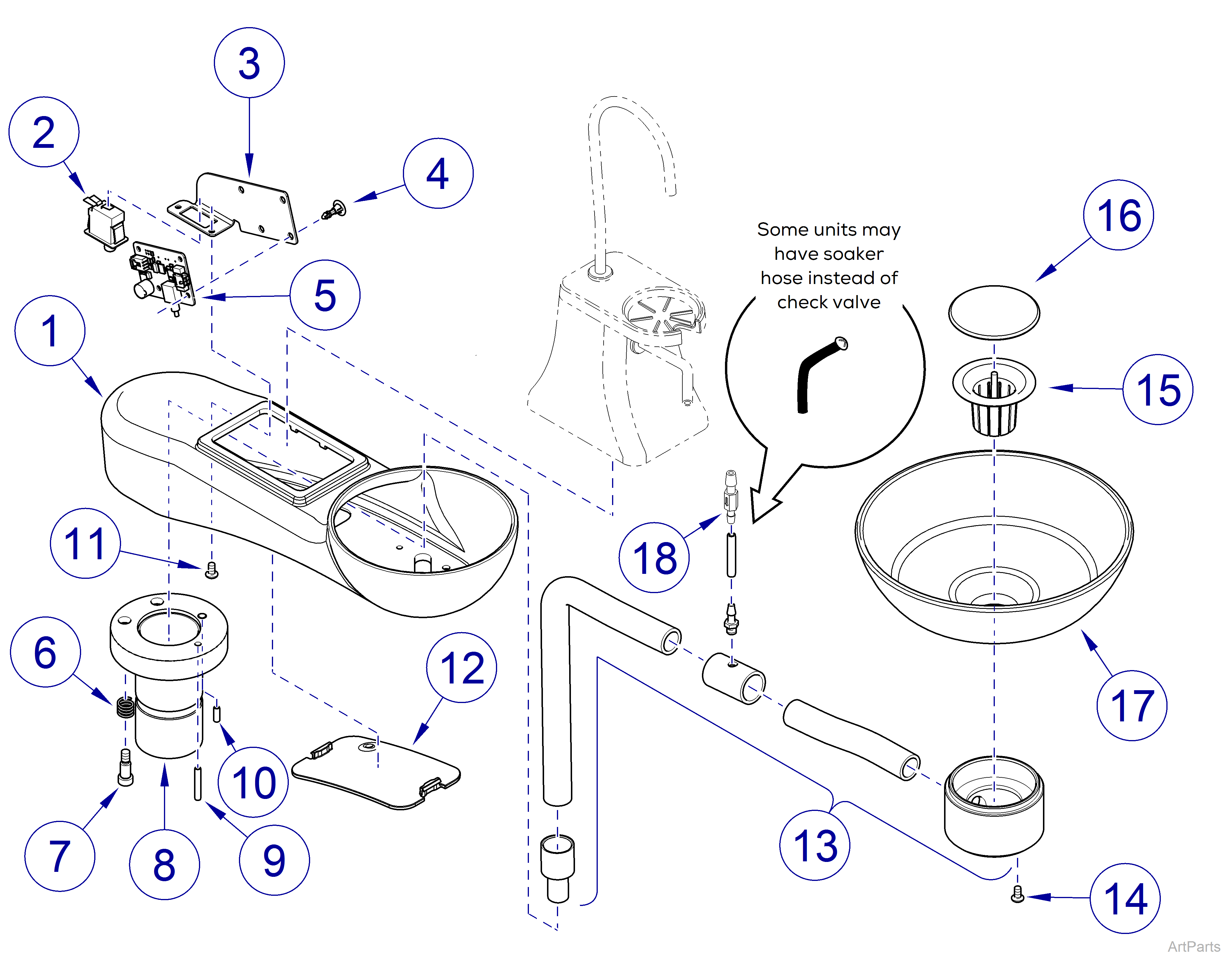

Elevance® Cuspidor Bottom
|
Model |
All |
| Serial Number | All |
| Elevance® Cuspidor Bottom | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Base Casting Options |
||
|
020-0311-00-216 |
Base Casting: w/o assistant’s unit | NLA | |
| 020-0311-02-216 | Base Casting: w/ assistant’s unit | 1 | |
|
2 |
015-1055-00 | Switch | 1 |
|
3 |
050-7193-00 | Switch Bracket | 1 |
|
4 |
053-2166-02 | Standoff | 4 |
|
5 |
015-2117-00 | PCB Control Assembly | 1 |
|
6 |
025-0042-16 | Spring | 2 |
|
7 |
042-0014-52 | Shoulder Screw | 2 |
|
8 |
030-1756-00-216 | Mount Post Weldment | 1 |
|
9 |
042-0001-22 | Stop Rotation Pin | 1 |
|
10 |
040-0250-60 | Set Screw | 1 |
|
11 |
040-0010-145 | Screw, Pan Head Phillips #10-24 x 1/2 | 2 |
|
12 |
053-1860-00-216 | Casting Cover | 1 |
|
13 |
029-4213-00 | Drain Tube Assembly | 1 |
|
14 |
040-0010-109 | Screw, Pan Head Phillips #10-24 x 3/8 | 2 |
|
15 |
053-1944-00 | Disposable Trap | 1 |
|
16 |
053-1980-00-216 | Drain Deflector | 1 |
|
17 |
Refer to: | Cuspidor Bowl | - |
| 18 | 002-10430-00 | Check Valve Kit | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
