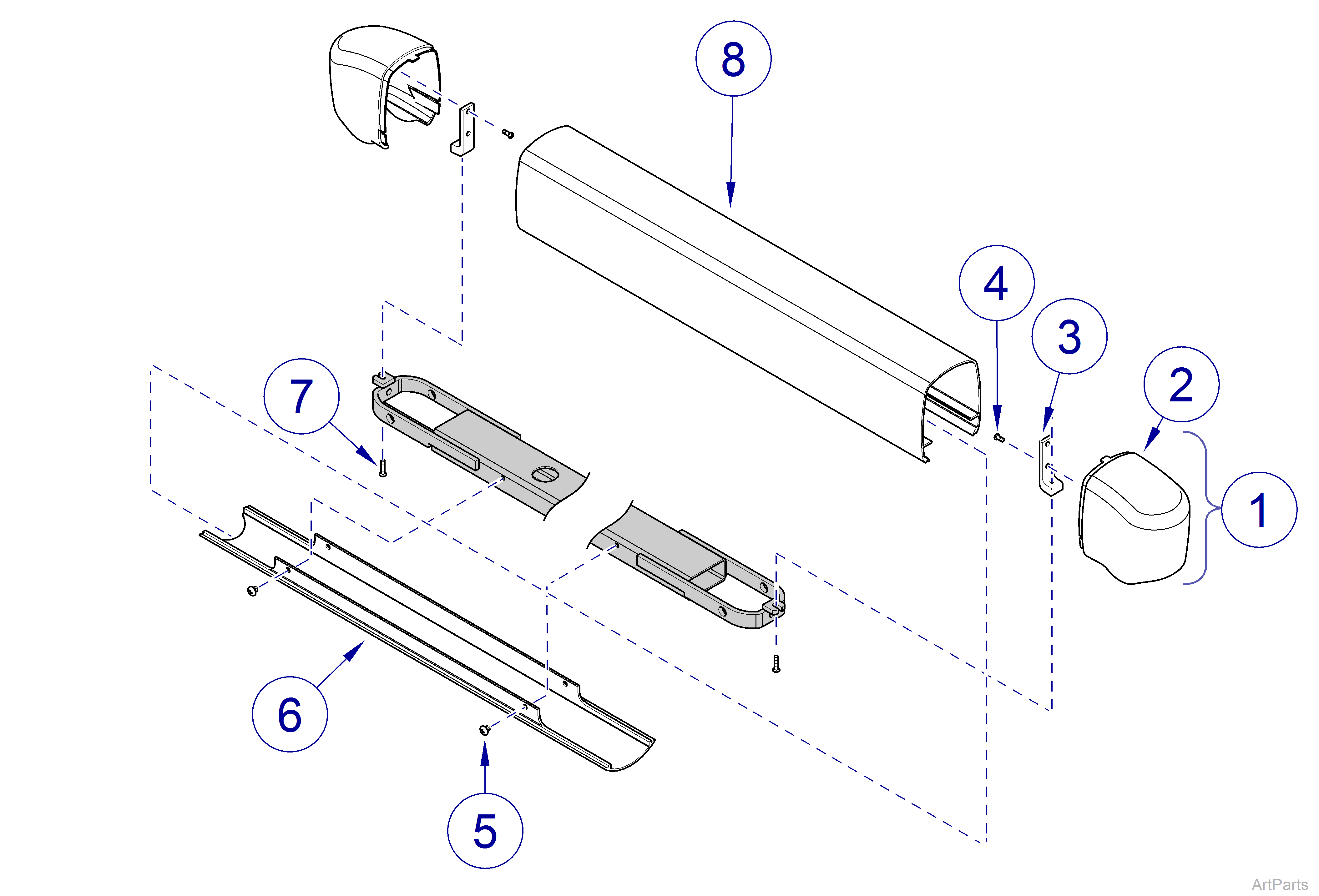

Elevance® Delivery Flex Arm Covers and End Caps

Mounted To

 Console/LR/Rear Mounted on Elevance Dental Chair
Serial Number All

Delivery Unit Flex Arm, Covers and End Caps

Elevance® Delivery Flex Arm Covers and End Caps
Item Part Number Description Qty

1

 029-4271-00 End Cap Assembly - includes Items 2 - 4 2

2

053-1728-00-216

 End Cap NLA

3

057-1313-00

 Bracket NLA

4

 042-0168-00 Screw 2

5

 040-0010-161 Screw - Pan Head Phillips 4

6

 021-0071-00-216 Lower Cover 1

7

 040-0006-86 Screw - Hex Socket Button Head 2

8

 021-0070-00-216 Upper Cover 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
