Elevance® Delivery Fixed Arm Post

Mounted To

 Console/LR/Rear Mounted on Elevance Dental Chair
Serial Number All

Elevance Delivery Flex Arm, Fixed Arm Post

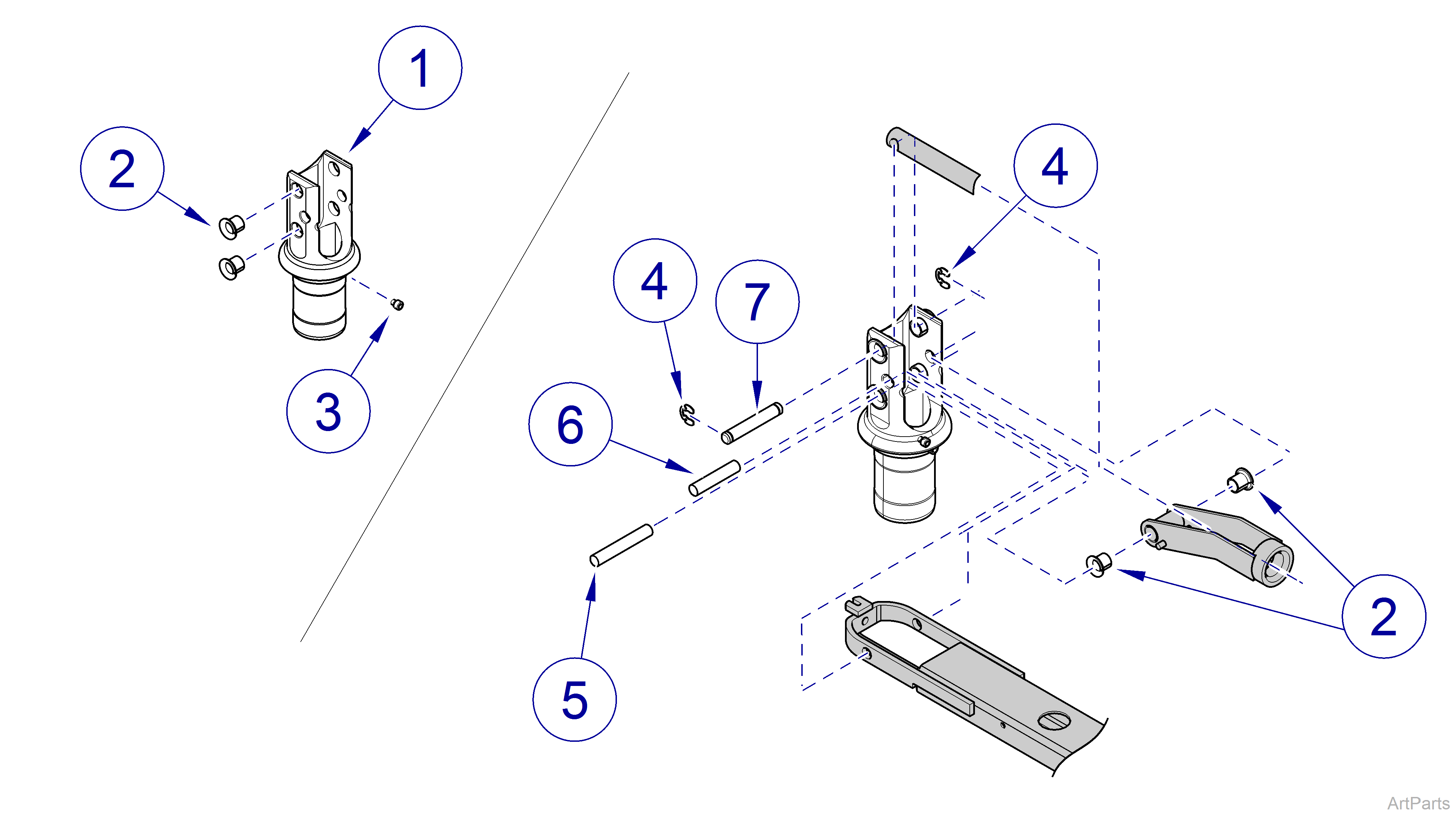

Elevance® Delivery Fixed Arm Post
Item Part Number Description Qty

1

 057-0939-00-216 Fixed Mount 1

2

 016-1570-01 Flange Bearing 11/16” Flange Diameter 6

3

 040-0008-74 Cap Screw #8-32 x 3/16” 1

4

 042-0065-01 Kilpring 3/8” 2

5

 057-0989-00 Pivot Pin 2-3/8” Length 1

6

 057-0608-00 Pivot Pin 1-7/8” Length 1

7

 042-0006-06 Clevis Pin 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
