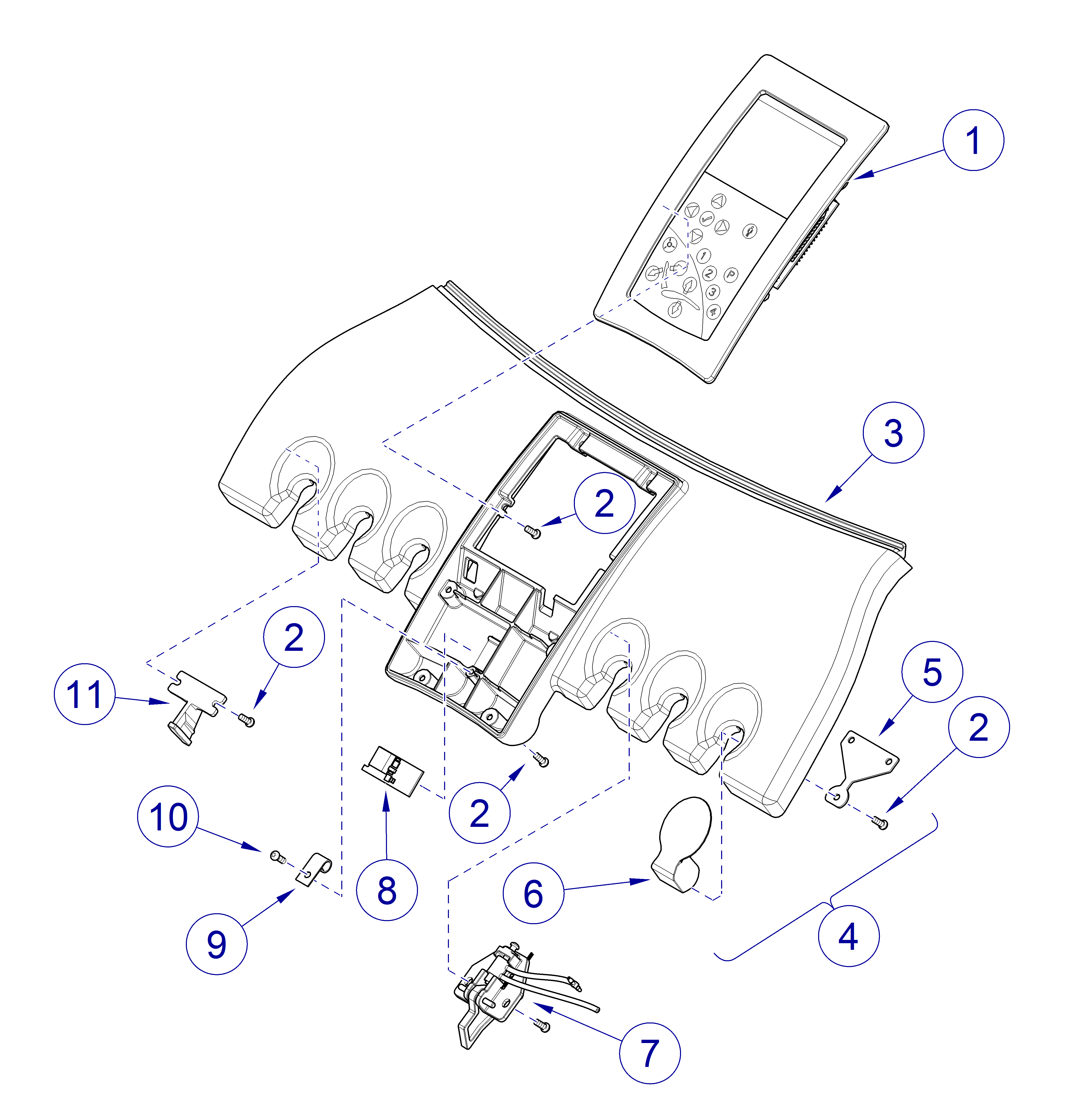

Elevance® Standard Delivery Unit Top Assembly
|
Model |
153800-001 |
| Serial Number | All |
| Elevance® Standard Delivery Unit Top Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1593-06
|
Integration Control Module® (ICM) Kit - Serial Number required to order | 1 |
|
2 |
042-0168-00 | Screw M3.5 x 1.57 x 10M, Pan Head - Used with Item 1 | 7 |
|
3 |
Top Cover Options |
||
|
Top Cover: 6 Position Holder |
1 |
||
| 002-1598-00 | Top Cover: 4 Position Holder | 1 | |
|
4 |
153785-001 |
Instrument Holder Cap Assembly - Includes Items 2 (Qty 3), 5 and 6 | NLA |
|
5 |
050-7207-00-216 | Instrument Holder Cap Mount Plate | 1 |
|
6 |
053-1870-00-216 | Instrument Holder Cap | 1 |
|
7 |
002-10665-00 | Actuator Assembly- Includes tubing, harness (015-2222-00), and screws | 1 |
|
8 |
015-2115-00 | E-Field Sensor PCB | 1 |
|
9 |
053-1893-00 | E-Field Sensor Retainer Clip | 1 |
|
10 |
042-0168-04 | Screw M3.5 x 1.57 x 10M, Torx Head - Used with Item 9 | 1 |
|
11 |
029-4207-00 | Instrument Holder Plug Assembly- Includes Item 2, Qty 2 for each | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
