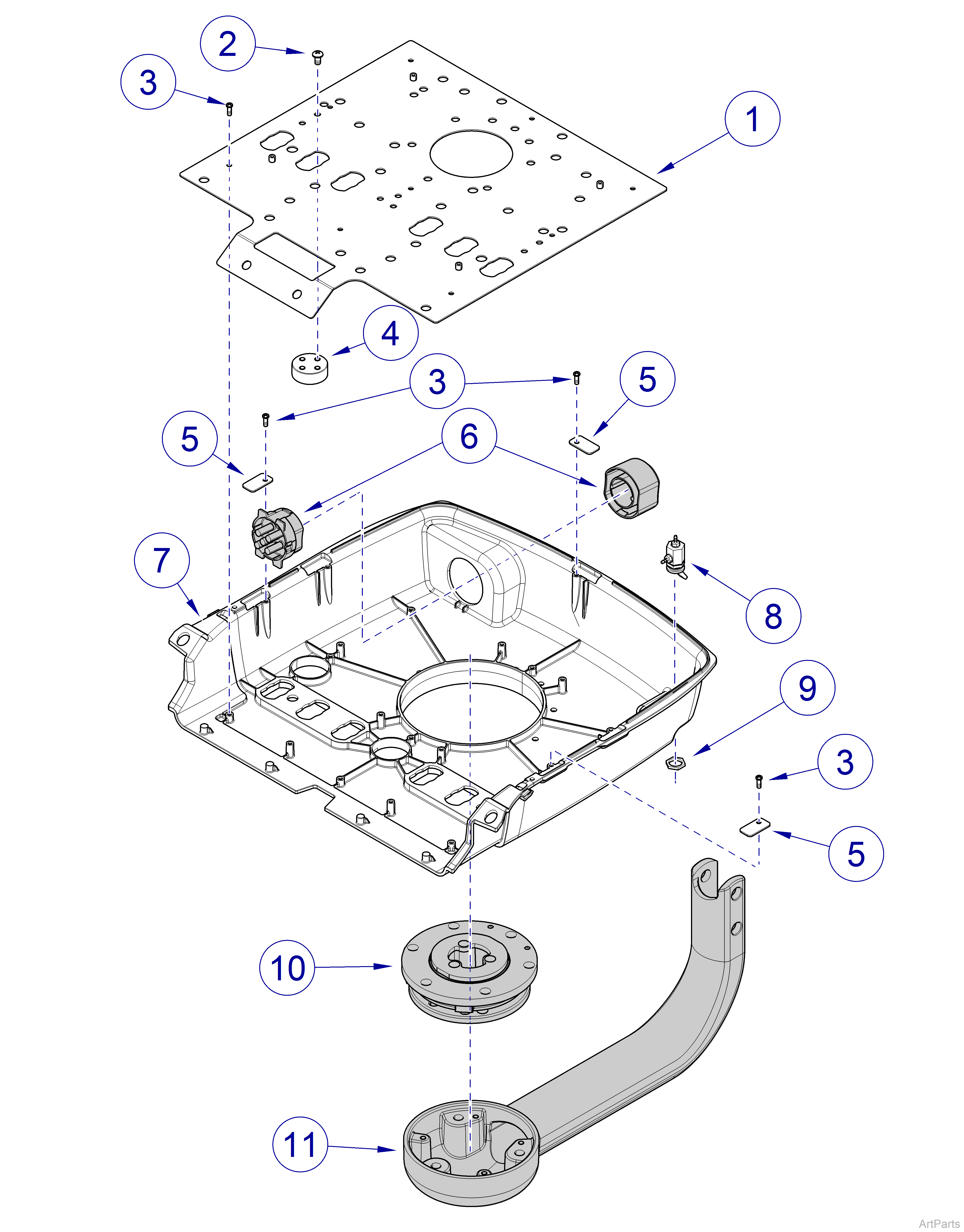

Elevance® Standard Delivery Unit Base Assembly
Serial Number Range: V2200 thru V1466391
|
Model |
153800-001 |
| Serial Number | V2200 thru V1466391 |
| Elevance® Standard Delivery Unit Base Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
050-7021-00-216 |
Mount Plate | NLA |
|
2 |
040-0010-109 | Screw Pan Head Phillips - Apply Item 12 | 4 |
|
3 |
042-0168-00 | Screw M3.5 x 1.57 X 10M | 12 |
|
4 |
057-0967-00 | Accessory Mount Post | 2 |
|
5 |
050-7168-00 | Magnet Strike Plate | 3 |
|
6 |
Refer to: | Air / Oil Separator Assembly | - |
|
7 |
053-1783-00-216 |
Base Cover | NLA |
|
8 |
120169 | Master Toggle Switch | 1 |
|
9 |
120387 | Nut | 1 |
|
10 |
Refer to: | Bearing Components | - |
|
11 |
Refer to: | Delivery Unit Post | - |
|
12 |
Thread-locking Adhesive - Not Shown | AR | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

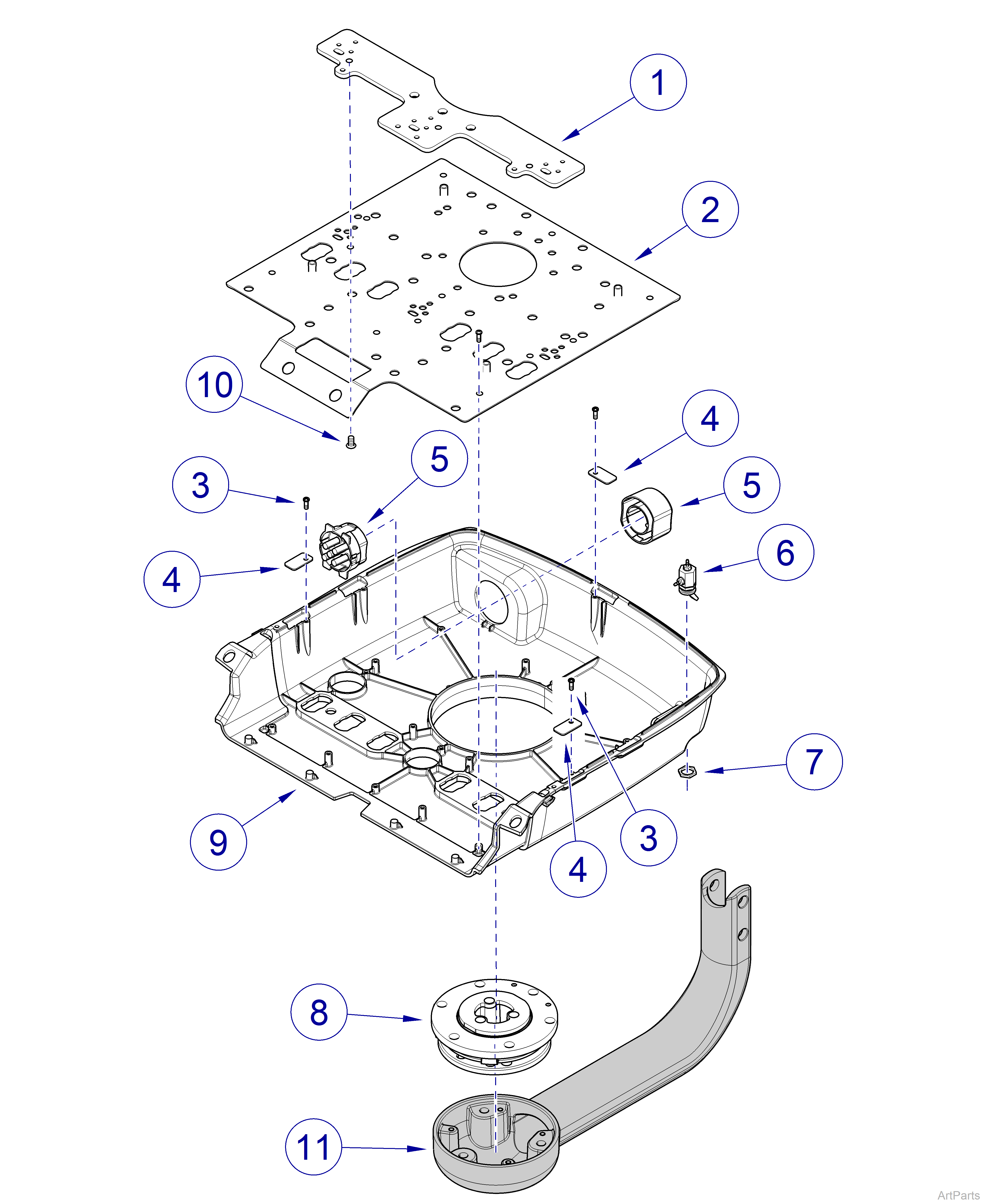

Serial Number Range: V1466392 thru present
|
Model |
153800-001 |
| Serial Number | V1466392 thru present |
| Elevance® Standard Delivery Unit Base Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
050-8730-00 | Accessory Mount Plate | 1 |
|
2 |
050-9275-00-216 |
Mount Plate | NLA |
|
3 |
042-0168-00 | Screw M3.5 x 10mm | 12 |
|
4 |
050-7168-00 | Magnet Strike Plate | 3 |
|
5 |
Refer to: | Air / Oil Separator Assembly | - |
|
6 |
120169 | Master Switch | 1 |
|
7 |
120387 | Nut | 1 |
|
8 |
Refer to: | Bearing Components | - |
|
9 |
053-1783-00-216 |
Base Cover | NLA |
|
10 |
040-0010-161 | Screw 10-24 x 1/4" | 3 |
|
11 |
Refer to: | Delivery Unit Post | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
