Elevance® Assistant's Unit Handpiece Connection Wiring / Tubing Diagrams

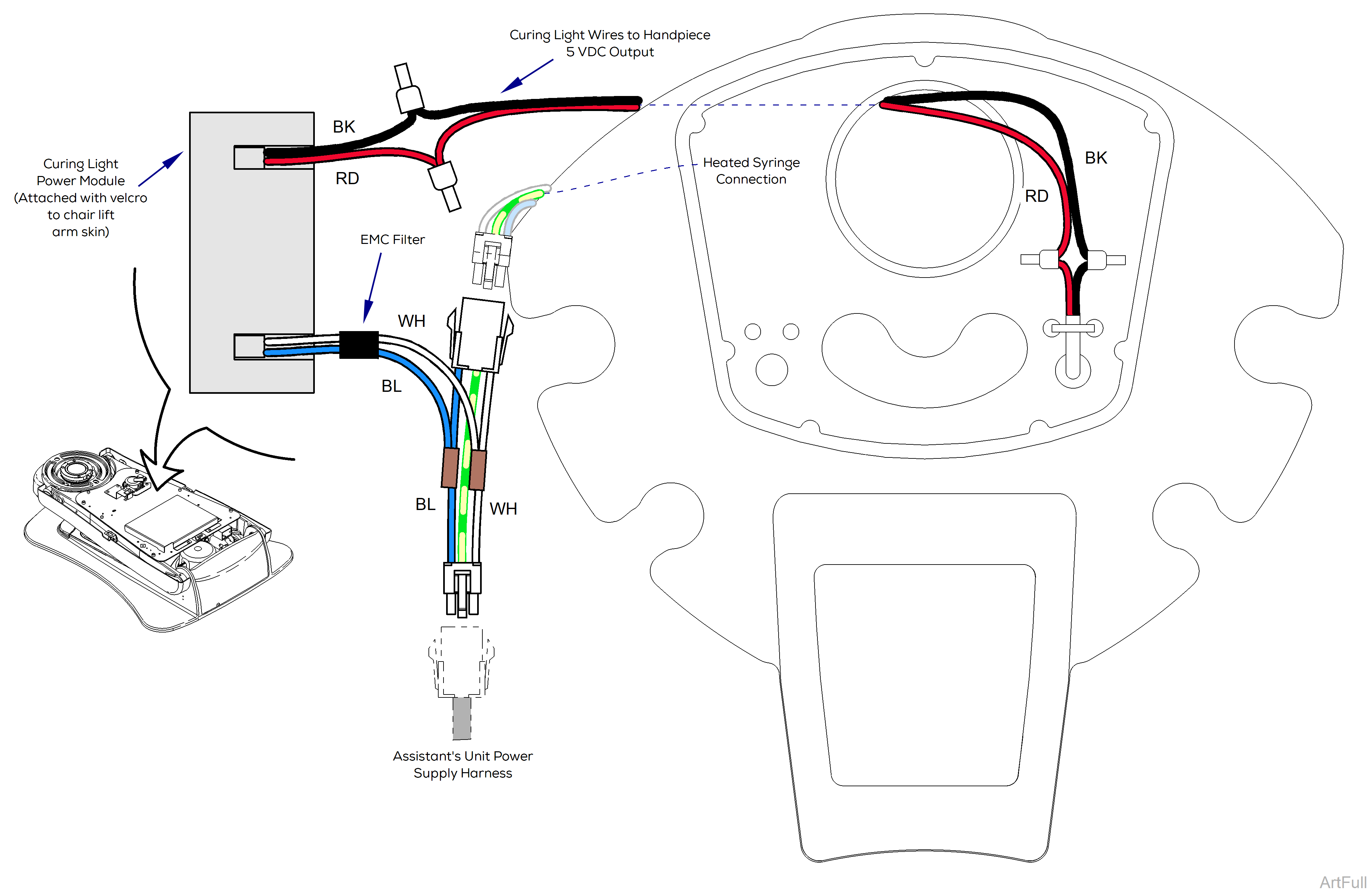

Curing Light Connections
Curing light is not air driven.
Syringe Connections

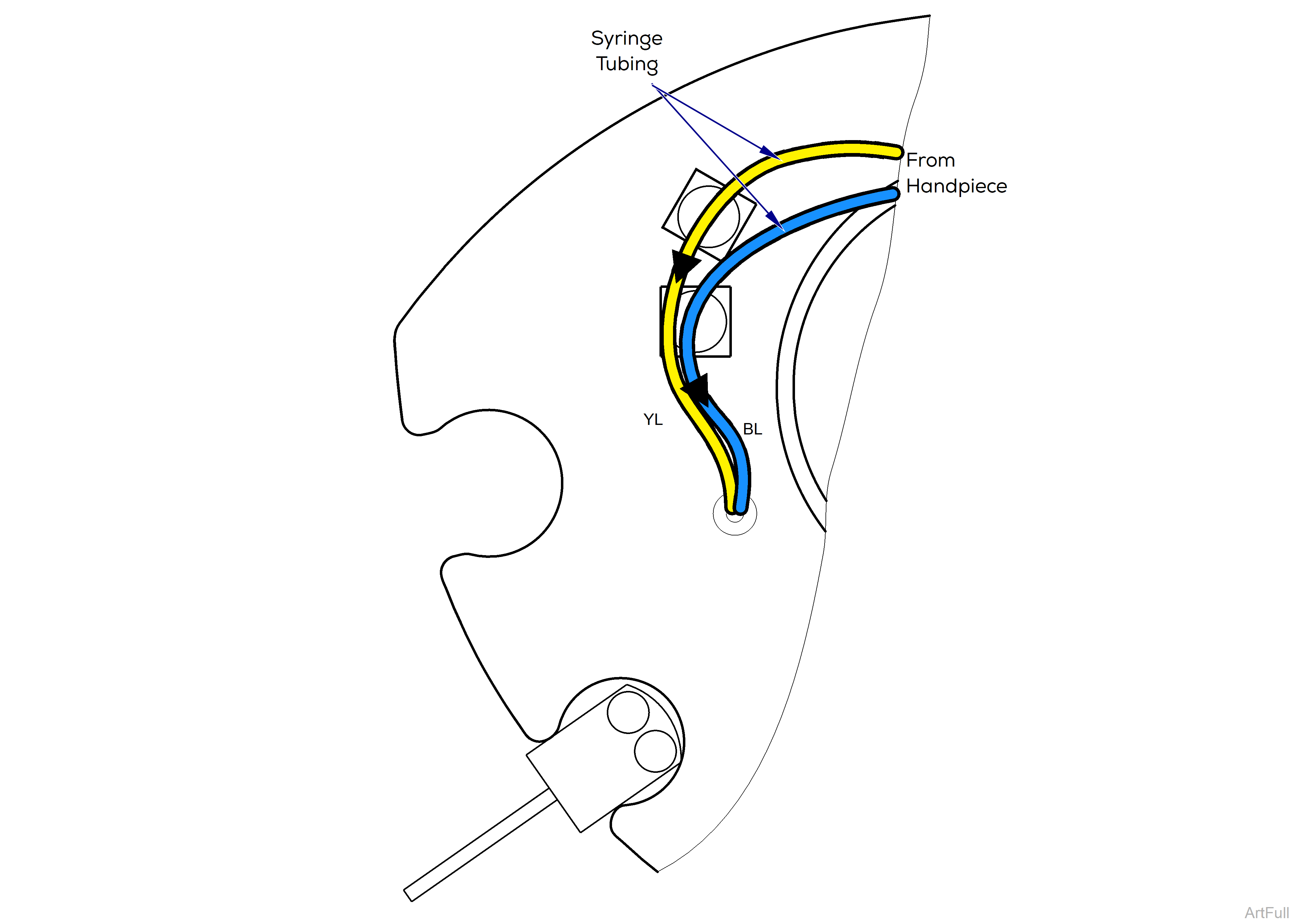

Regular Syringe
Equipment Alert
Route syringe tubing through pinch valves.

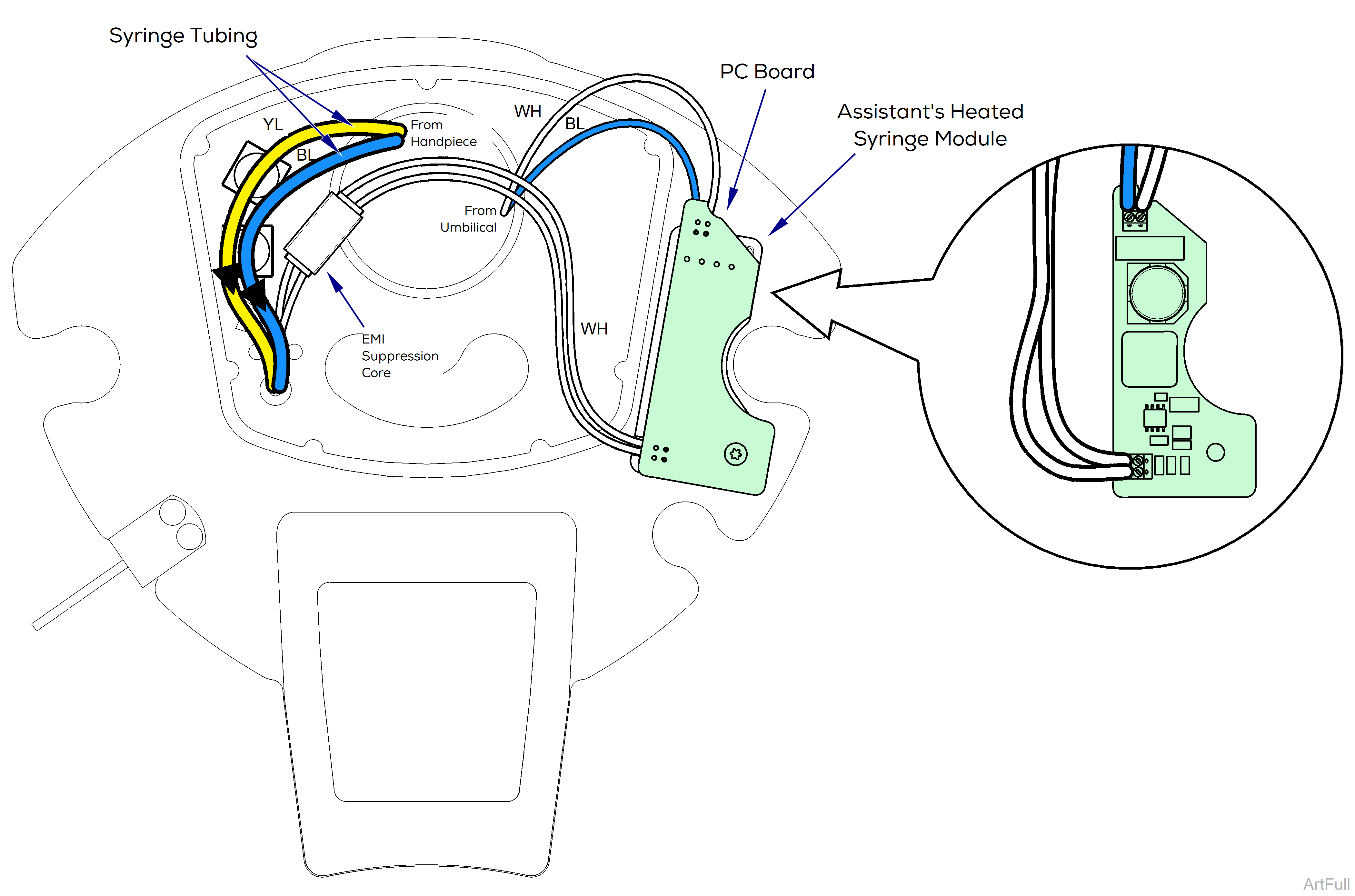

Heated Syringe
Equipment Alert
Route heated syringe wires through EMI suppression core. Route syringe tubing through pinch valves.
