Elevance® Dental Chair Rear Mounted, European Assistant's Unit Arm

Mounted To

 Elevance® Dental Chair
Serial Number V2200 thru Present

Rear Mtd. European Assistant’s Unit Arm

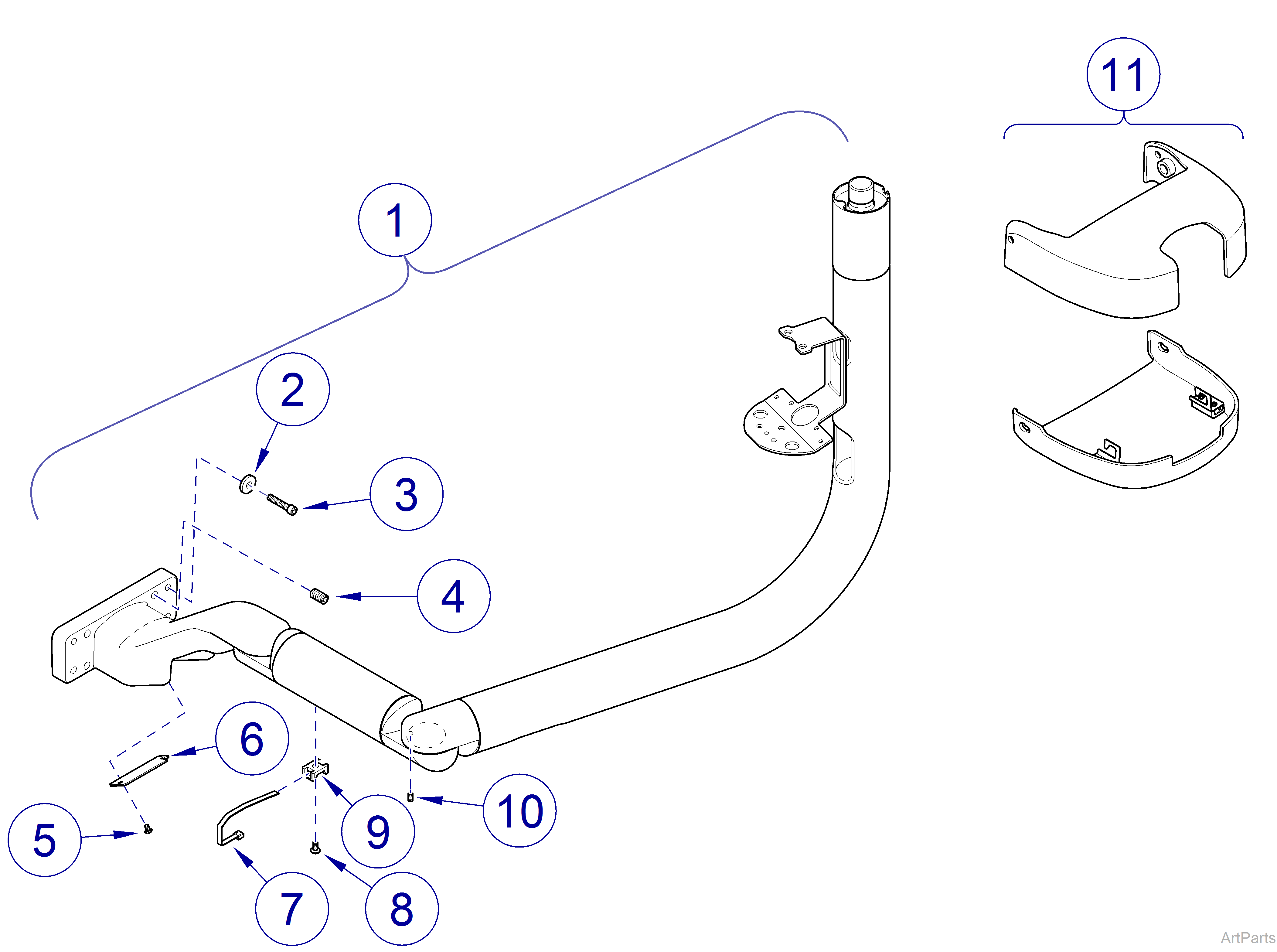

Elevance® Dental Chair Rear Mounted, European Assistant's Unit Arm
Item Part Number Description Qty

1

 029-5247-00 Rear Mtd. Asst’s Arm Assembly - Includes items 2 thru 10 1

2

 045-0001-156 Washer 1/4” Type ‘A’ Plain 4

3

 040-0250-135 Cap Screw 1/4-20 x 1-1/4" 4

4

 040-0375-83 Set Screw 3/8-16 x .75" Hex Socket 4

5

 040-0008-97 Screw #8-32 Pan Head 2

6

 050-7601-00-216 Bottom Plate 1

7

 102308 Cable Tie 1

8

 040-0010-109 Screw #10-24 x 3/8" Pan Head 2

9

 016-0889-00 Cable Tie Mounting Platform 1

10

 121428 Set Screw - Nylon-tipped 2

11

 029-4654-00 Pivot Cover Assembly without Quick Disconnect 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
