European Assistant's Unit Instrument Connections Wiring / Tubing Diagrams

Refer to: Color Abbreviation Chart

Mounted To

 All
Serial Number All

European Assistant's Unit Instrument Connection Wiring / Tubing Diagrams

Equipment Alert

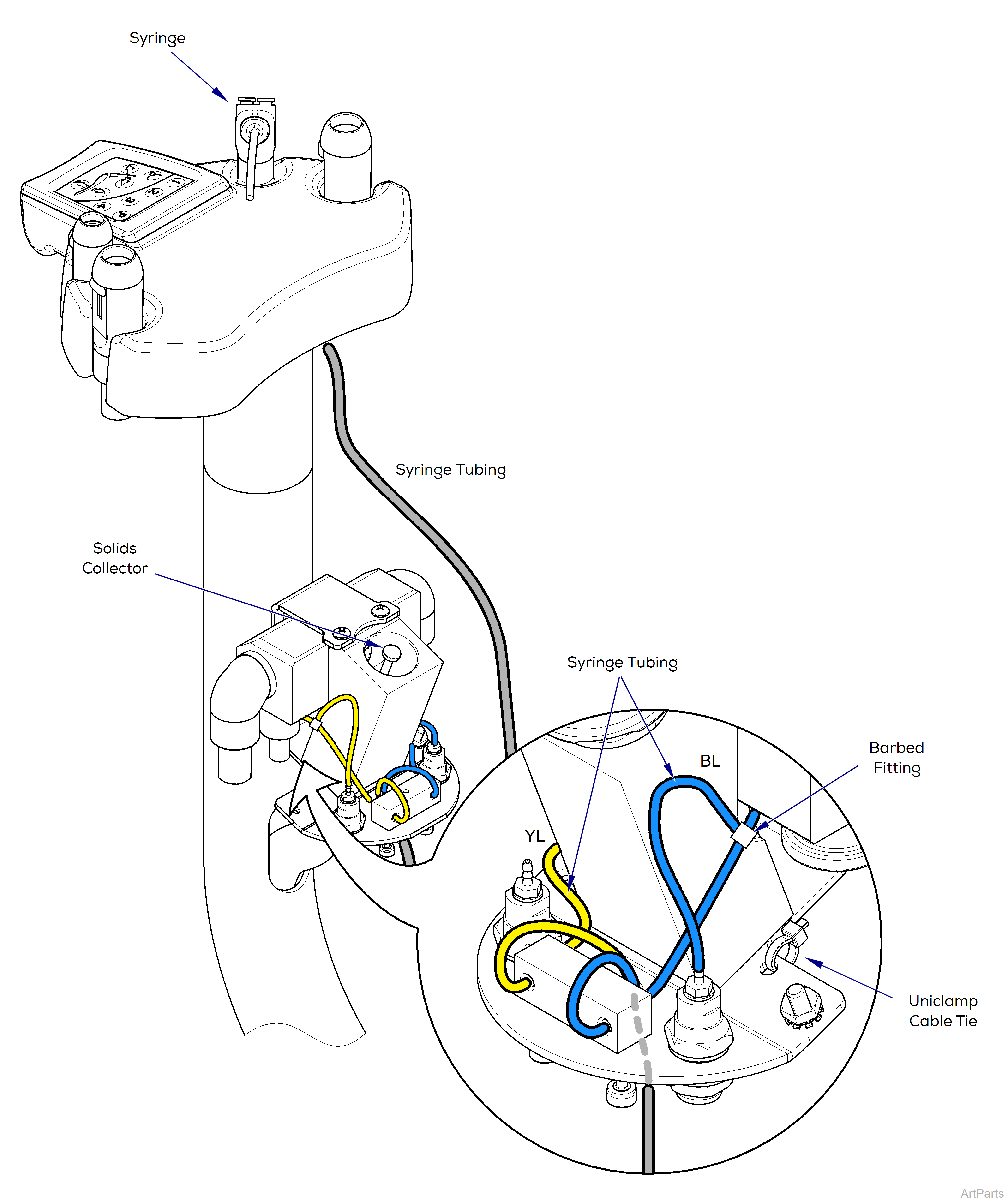

Yellow and blue syringe tubing is routed from the tees thru pinch blocks, then loops and connects to the syringe tubing in center hole on the solids collector bottom plate.

Mounted To

 All European Assistant's Units
Serial Number All

European Assistant's Unit Instrument Connection Wiring / Tubing Diagrams

Equipment Alert

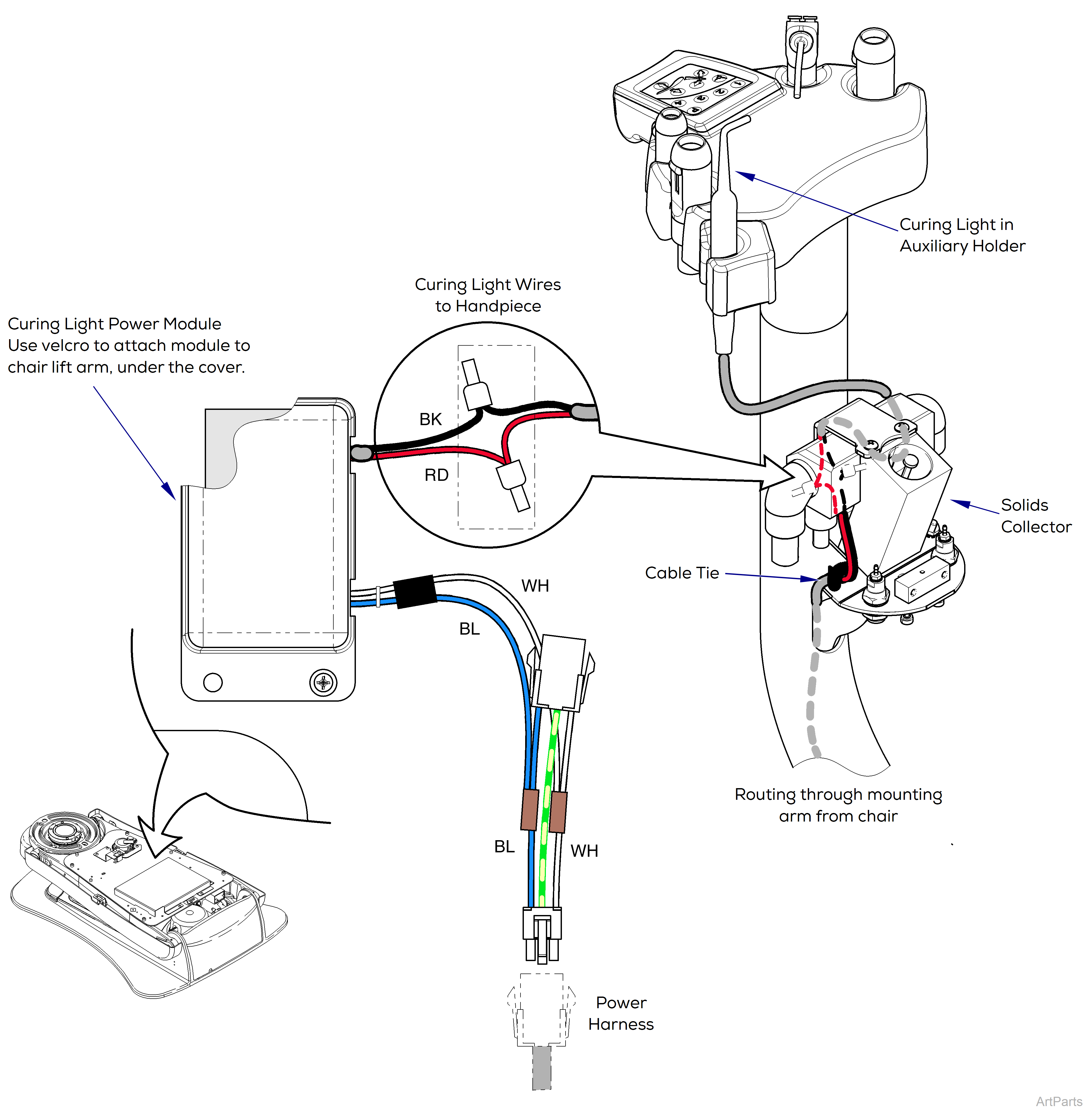

Curing light for European Assistant’s Unit requires an auxiliary holder.

Mounted To

 All European's Assistant's Units
Serial Number All

European Assistant's Unit Instrument Connection Wiring / Tubing Diagrams

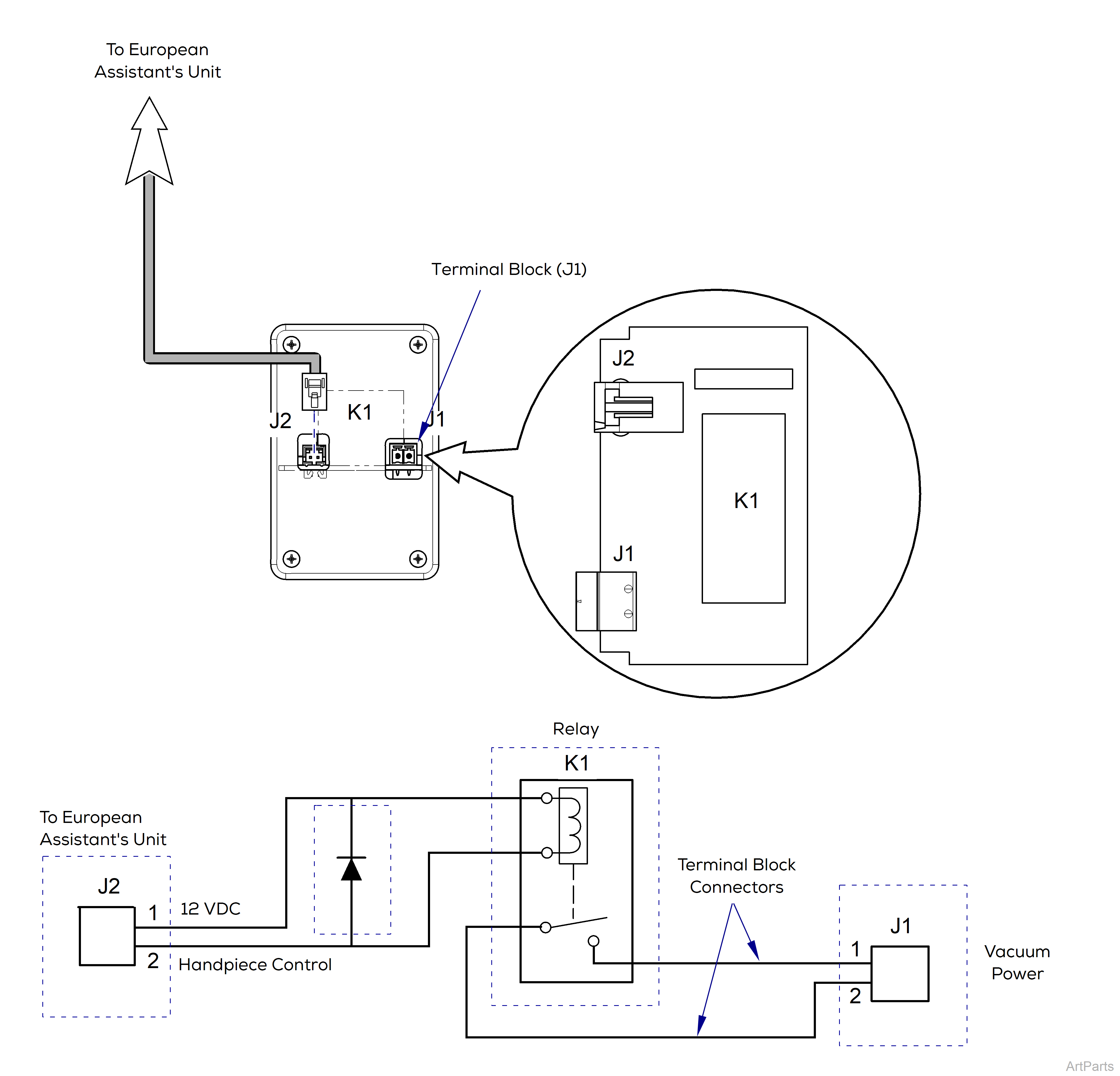

Terminal block to be connected to vacuum power.

Equipment Alert

When handpiece is pulled, pin 1 and pin 2 of the terminal block (J1) from the vacuum relay box are connected to each other. The positive terminal of the vacuum power should be placed in series with pin 1 and pin 2 of the terminal block.
