International (Whip) Delivery Unit Mounted Chair Control on Midmark® Chairs
|
Model |
153720-002 |
| Serial Number | All Units |

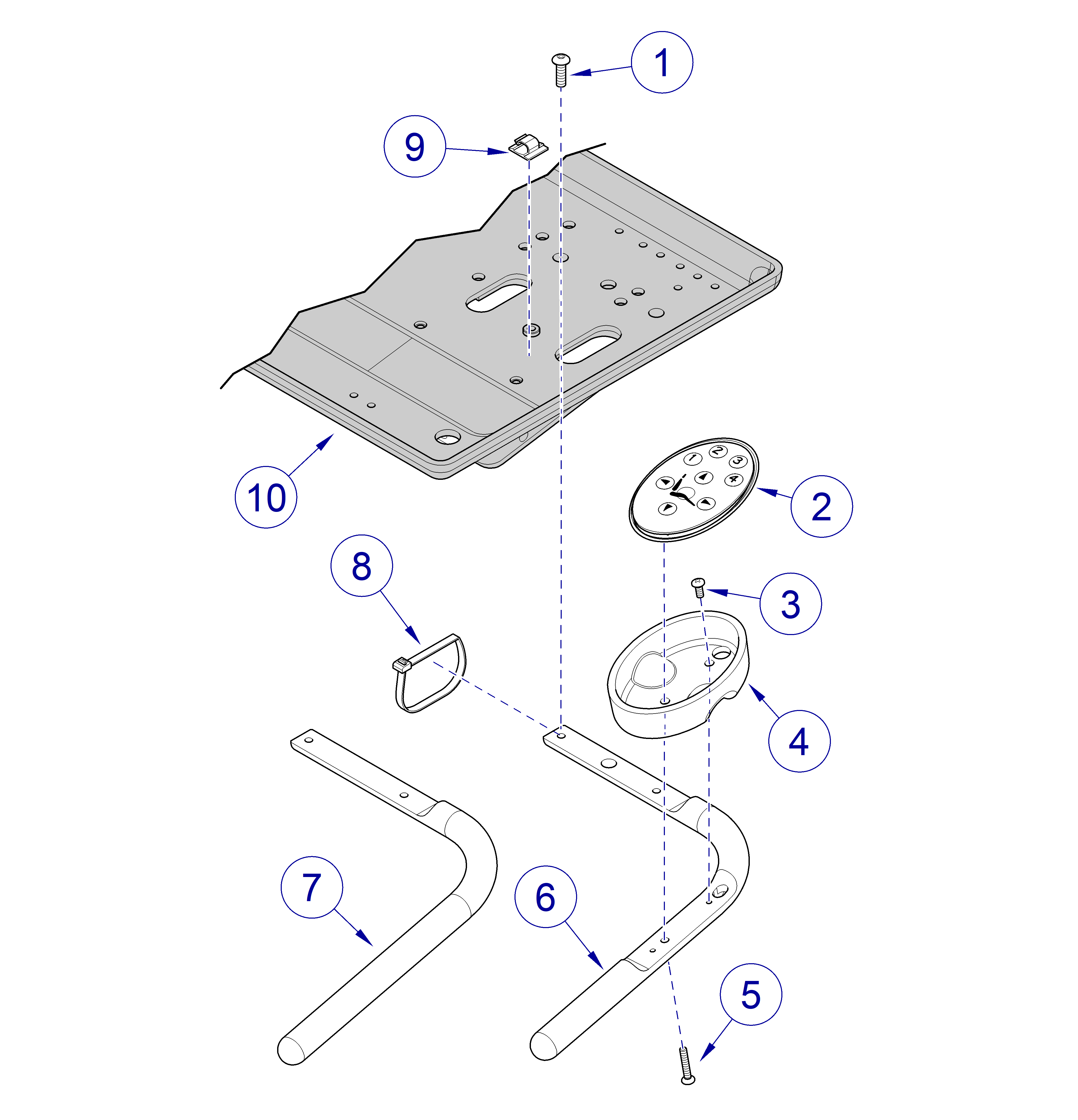

| International (Whip) Delivery Unit Mounted Chair Control on Midmark Chairs | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
| 029-2684-00 | Right Hand Whip Chair Control Assembly - Shown - Includes items 1 thru 9 | 1 | |
| 029-2685-00 | Left Hand Whip Chair Control Assembly - Not Shown - Includes items 1 thru 9 | 1 | |
|
1 |
040-0010-159 | Screw | 4 |
|
2 |
Touch Pad Assembly Options | ||
| 029-4998-00 | RH Touch Pad Assembly - Shown | 1 | |
| 029-4998-01 | LH Touch Pad Assembly - Not Shown | 1 | |
|
3 |
040-0006-97 | Screw | 2 |
|
4 |
053-1208-00 | Chair Control Housing | 1 |
|
5 |
040-0006-73 | Screw | 1 |
|
6 |
Chair Control Handle Options | ||
| 057-0650-50 | Right Hand Chair Control Handle - Shown | 1 | |
| 057-0651-50 | Left Hand Chair Control Handle - Not Shown | ||
|
7 |
Whip Handle Options | ||
| 122150-50 | Right Hand Whip Handle - Shown | 1 | |
| 122151-50 | Left Hand Whip Handle - Not Shown | 1 | |
|
8 |
102308 | Cable Tie | 1 |
|
9 |
109191 | Cable Clamp | 1 |
|
10 |
Refer to: | Bottom Cover - Whip Cover Components | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
