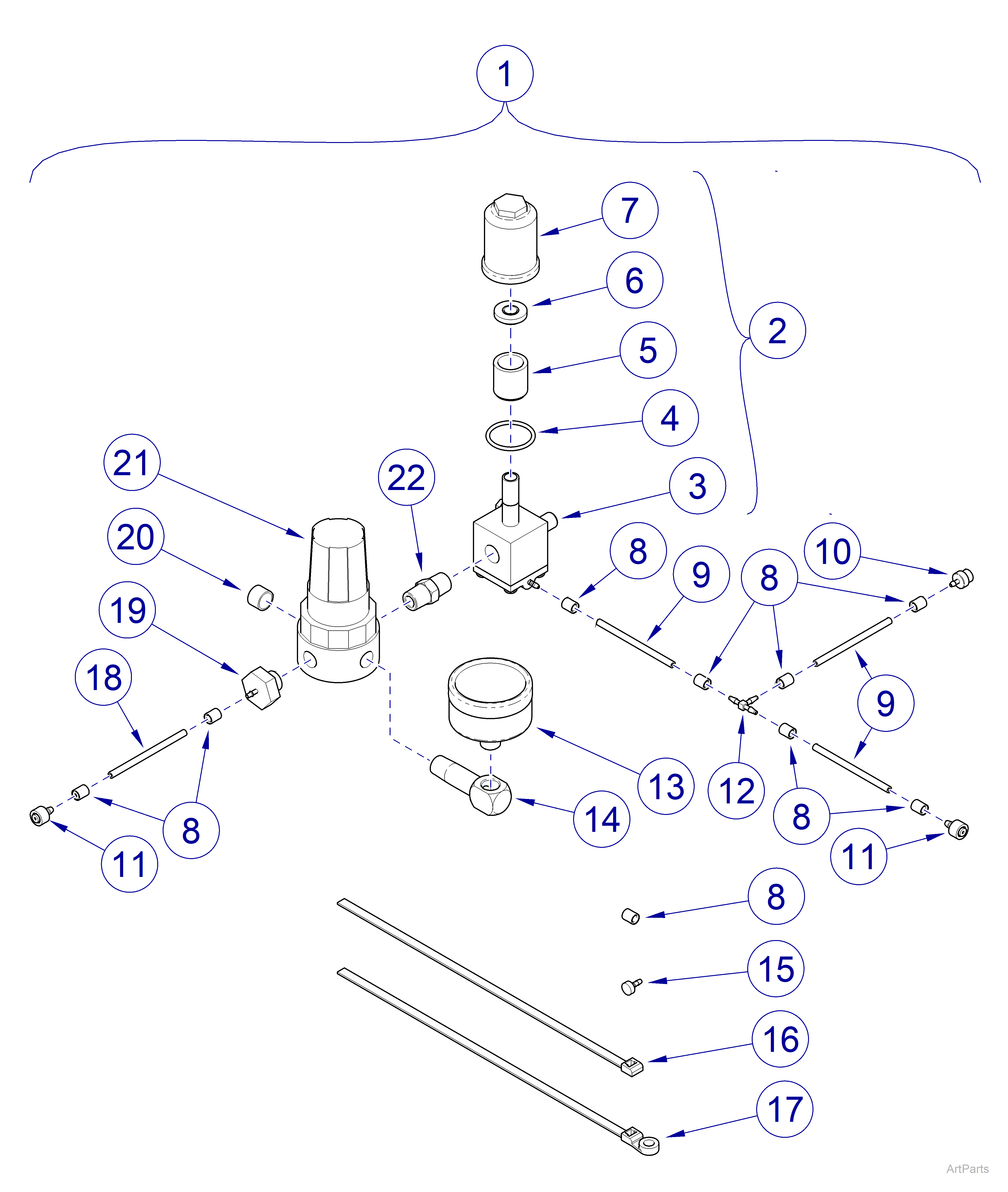

Junction Boxes Water Control Valve
Asepsis 21, Procenter and Elevance®
|
Model |
Asepsis 21, Procenter, Elevance® |
| Serial Number | All |
| Junction Boxes Water Control Valve | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1722-00 | Water Control Valve - includes items 2 thru 17 | 1 |
|
2 |
117351 | Plug #10-32 | 3 |
|
3 |
117660 | Gasket | 5 |
|
4 |
145349 | Water Regulator | 1 |
|
5 |
117662 | Pipe Plug, apply item 18 | 1 |
|
6 |
109714 | Barb Fitting #10-32 x 1/16” | 1 |
|
7 |
117477 | Barb Tee 1/16” | 1 |
|
8 |
177531 | Red Tube 1/8’ | 1 |
|
9 |
117479 | Uni-Clamp 1/8” | 1 |
|
10 |
029-2535-00 | Master Shutoff Valve Assembly - includes items 11 thru 14 | 1 |
|
11 |
053-1166-00 | 40 micron Filter | 1 |
|
12 |
014-0176-45 | O-Ring | 1 |
|
13 |
057-0606-00 | Filter Nut 5/16”-18 | 1 |
|
14 |
053-1167-00 | Filter Bowl | 1 |
|
15 |
P16629 | Close Nipple 1/8” NPT - apply item 18 | 1 |
|
16 |
122841 | Round Pressure Gauge | 1 |
|
17 |
117352 | Fitting - apply item 18 | 1 |
|
18 |
Thread Locking Adhesive - not shown | AR | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Midmark® Dental Delivery
|
Model |
Midmark® Dental Delivery |
| Serial Number | All |
| Water Regulator Kits | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Regulator Kits | ||
| 002-11493-02 | Water Regulator Kit - includes items 2 thru 21 | 1 | |
| 002-11493-00 | Air / Water Regulator Kit - includes items 2 thru 21 and Air Regulator Kit | 1 | |
|
2 |
029-2535-00 | Master Shutoff Valve - includes items 3 thru 7 | 1 |
|
3 |
Valve Body | NSS | |
|
4 |
014-0176-45 | O-Ring | 1 |
|
5 |
053-1166-00 | Filter | 1 |
|
6 |
057-0606-00 | Filter Nut | 1 |
|
7 |
053-1167-00 | Filter Bowl | 1 |
|
8 |
117479 | Uni-Clamp | 9 |
|
9 |
Red Tubing | 3 | |
|
10 |
057-0546-00 | Female Coupler | 1 |
|
11 |
029-2541-00 | Male Coupler | 2 |
|
12 |
117477 | Tee Fitting | 1 |
|
13 |
122841 | Pressure Gauge | 1 |
|
14 |
014-10351-00 | Long Elbow | 1 |
|
15 |
118915 | Plug | 1 |
|
16 |
102308 | Cable Tie | 3 |
|
17 |
015-0017-00 | Cable Tie | 2 |
|
18 |
177523 | Blue Tubing | 1 |
|
19 |
014-10117-00 | Barb Fitting | 1 |
|
20 |
117662 | Plug | 1 |
|
21 |
145349 | Water Regulator | 1 |
|
22 |
014-10066-00 | Pipe Nipple | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
