Junction Boxes Air Control Valve
Model Range Procenter Delivery Systems
Serial Number Range: Prior to V203633
|
Model |
Procenter Delivery Systems |
| Serial Number | Prior to V203633 |
|
Junction Boxes Air Control Valve |
|||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-2480-00 |
Air Control Assembly - includes items 2 thru 21 |
NLA |
|
2 |
050-4816-00 | Regulator Mounting Plate | 1 |
|
3 |
177551 | Brown Tubing | 1 |
|
4 |
P16629 | Nipple - apply item 22 | 1 |
|
5 |
177531 | Red Tubing | 1 |
|
6 |
029-2535-00 | Master Shut-Off Valve - includes items 7 thru 11 | 3 |
|
7 |
016-0980-00 | Diaphragm | 1 |
|
8 |
053-1166-00 | MSO Filter - 40 Micron | 1 |
|
9 |
014-0176-45 | O-Ring | 1 |
|
10 |
057-0606-00 | Filter Nut | 1 |
|
11 |
053-1167-00 | Filter Housing | 1 |
|
12 |
145756 | Air Regulator | 1 |
|
13 |
122159 | Air Label | 1 |
|
14 |
122841 | Round Pressure Guage | 1 |
|
15 |
002-0768-00 | Water Bottle Air Regulator - preset to 30 PSI |
1 |
|
16 |
117662 | Pipe Plug | 3 |
|
17 |
109714 | Barb Fitting #10-32 x 1/16” | AR |
|
18 |
117352 | Fitting | 3 |
|
19 |
117351 | Brass Plug | AR |
|
20 |
117660 | Gasket | 1 |
|
21 |
117349 | Barb Fitting #10-32 x 1/8” | 1 |
|
22 |
Thread Locking Adhesive - not shown | AR | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V203633 thru V1349187
|
Model |
Procenter Delivery Systems |
| Serial Number | V203633 thru V1349187 |
| Junction Boxes Air Control Valve | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1633-00 | Air Control Assembly - includes items 2 thru 21 | 1 |
|
2 |
050-4816-00 | Regulator Mounting Plate | 1 |
|
3 |
002-0768-00 | Water Bottle Air Regulator - preset to 30 PSI | 1 |
|
4 |
145756 | Air Regulator | 1 |
|
5 |
014-0553-00 | Barbed Fitting 3/16” x 1/8" | 1 |
|
6 |
P16629 | Nipple - apply item 22 | 1 |
|
7 |
177531 | Red Tubing | 1 |
|
8 |
029-2535-00 | Master Shut-Off Valve - includes items 9 thru 13 | 1 |
|
9 |
016-0980-00 | Diaphragm | 1 |
|
10 |
053-1166-00 | MSO Filter - 40 Micron | 1 |
|
11 |
014-0176-45 | O-ring | 1 |
|
12 |
053-1167-00 | Filter Nut | 1 |
|
13 |
057-0606-00 | Filter Housing | 1 |
|
14 |
117479 | Uni-clamp | 2 |
|
15 |
122159 | Air Label | 1 |
|
16 |
122841 | Pressure Gauge | 1 |
|
17 |
117662 | Pipe Plug | 2 |
|
18 |
109714 | Barb Fitting #10-32 x 1/16” | 4 |
|
19 |
117352 | Fitting | 3 |
|
20 |
117351 | Brass Plug | 7 |
|
21 |
117660 | Gasket | 10 |
|
22 |
Thread Locking Adhesive, not shown | AR | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Model Range Procenter and Elevance® Delivery Systems
Serial Number Range:V1348188 thru Present
|
Model |
Procenter Delivery Systems | Elevance® Delivery Systems |
| Serial Number | V1348188 thru Present | All |
| Junction Boxes Air Control Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
| 1 |
Procenter Units Options |
||
| 029-2663-04 |
For Procenter Units on Ultra Chairs - Air control assembly includes Items 2, 6 and 10 |
1 | |
| 029-2663-05 | For Procenter and Elevance® Units on Elevance® Chairs - Air control assembly includes Items 2, 6 and 10 | 1 | |
| 2 | Barb Fitting Options | ||
| 109714 | #10-32 Barb Fitting x 1/16” For Procenter Units on Ultra Chairs | 1 | |
| 117349 | #10-32 Barb Fitting x 1/8” For Procenter and Elevance® Units on Elevance® Chairs | 1 | |
| 3 | 117352 | T-Cross Fitting | 1 |
| 4 | 117660 | Gasket | 5 |
| 5 | 117351 | Plug #10-32 | 2 |
| 6 | 145756 |
Air Regulator |
1 |
| 7 | 014-0553-00 | Barb Fitting 3/4" x 1/8" NPT | 1 |
| 8 | P16629 | Close Nipple 1/8" NPT | 1 |
| 9 | 122841 | Round, Pressure Gauge | 1 |
| 10 | 029-2535-00 | Master Shutoff Valve Assembly - includes items 11-14 | 1 |
| 11 | 053-1166-00 | Filter, 40 micron | 1 |
| 12 | 057-0606-00 | Filter Nut 5/16”-18 | 1 |
| 13 | 014-0176-45 | O-Ring | 1 |
| 14 | 053-1167-00 | Filter Bowl | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

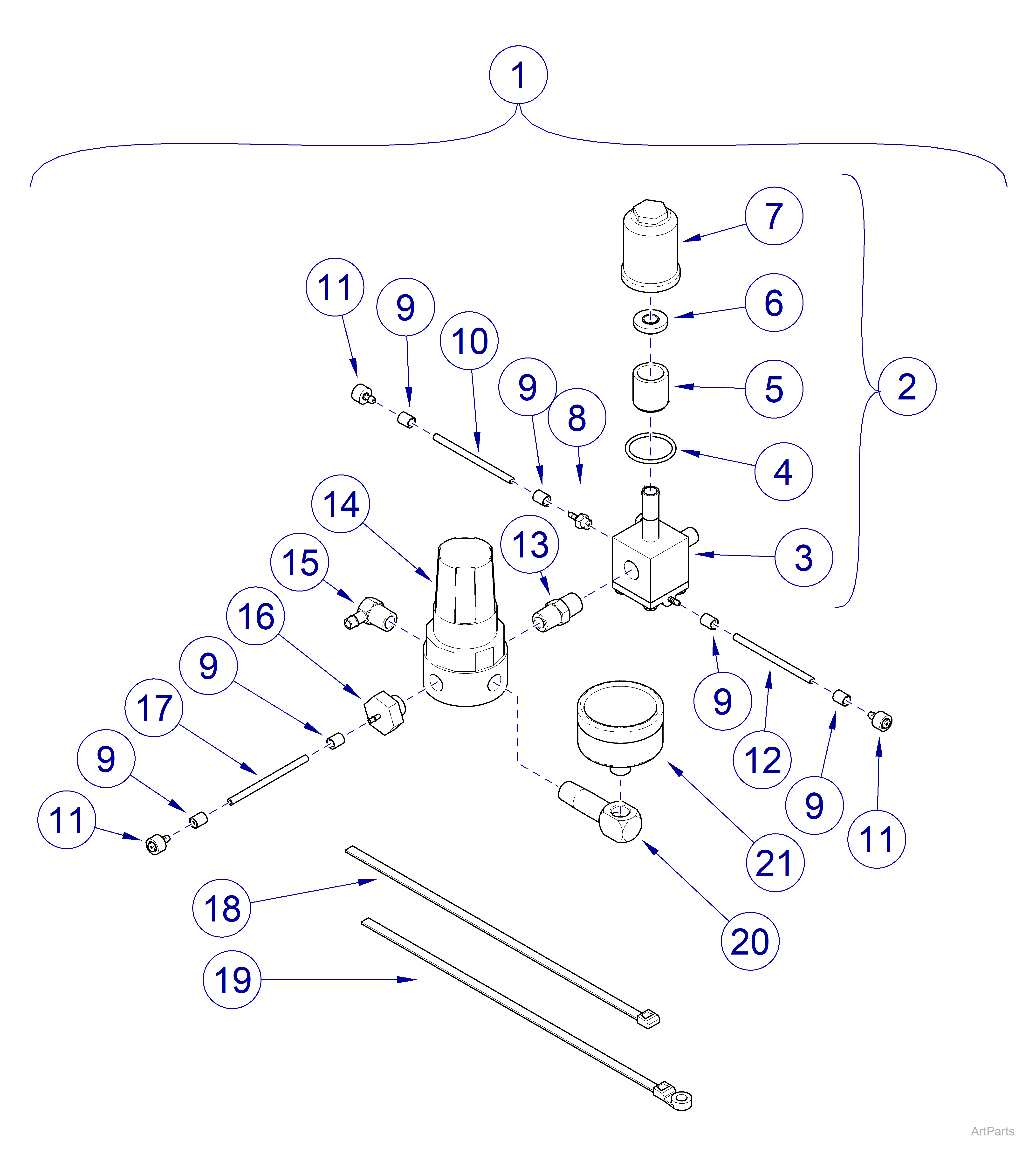

Model Range Midmark® Dental Delivery
Serial Number Range:All
|
Model |
Midmark® Dental Delivery |
| Serial Number | All |
| Air Regulator Kits | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Regulator Kits | ||
| 002-11493-01 | Air Regulator Kit - includes items 2 thru 21 | 1 | |
| 002-11493-00 | Air / Water Regulator Kit - includes items 2 thru 21 and Water Regulator Kit | 1 | |
|
2 |
029-2535-00 | Master Shutoff Valve - includes items 3 thru 7 | 1 |
|
3 |
Valve Body | NSS | |
|
4 |
014-0176-45 | O-Ring | 1 |
|
5 |
053-1166-00 | Filter | 1 |
|
6 |
057-0606-00 | Filter Nut | 1 |
|
7 |
053-1167-00 | Filter Bowl | 1 |
|
8 |
109714 | Barb Fitting | 1 |
|
9 |
117479 | Uni-Clamp | 6 |
|
10 |
Purple Tubing | 1 | |
|
11 |
029-2541-00 | Male Coupler | 3 |
|
12 |
Red Tubing | 1 | |
|
13 |
014-10066-00 | Pipe Nipple | 1 |
|
14 |
145756 | Air Regulator | 1 |
|
15 |
014-10355-00 | 90-degree Elbow | 1 |
|
16 |
014-10117-00 | Barb Fitting | 1 |
|
17 |
Yellow Tubing | 1 | |
|
18 |
102308 | Cable Tie | 3 |
|
19 |
015-0017-00 | Cable Tie | 2 |
|
20 |
014-10351-00 | Long Elbow | 1 |
|
21 |
122841 | Pressure Gauge | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
