Midmark® 1000 Capacitor Test and Repair

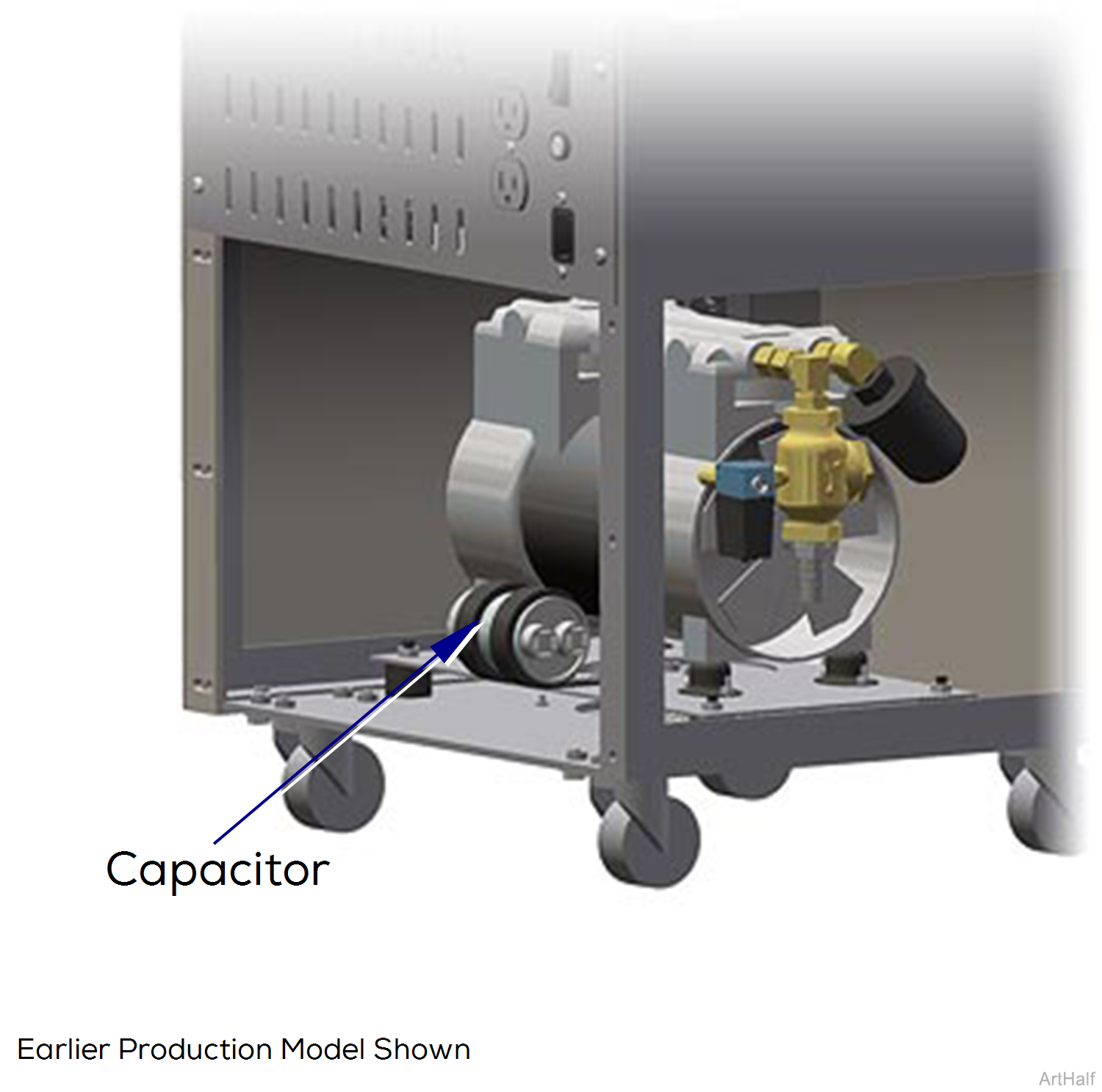

Midmark® 1000 Capacitor

The capacitor is located in the lower compartment. The run capacitor aids in running efficiency. It creates a phase shift to give more power to the compressor.

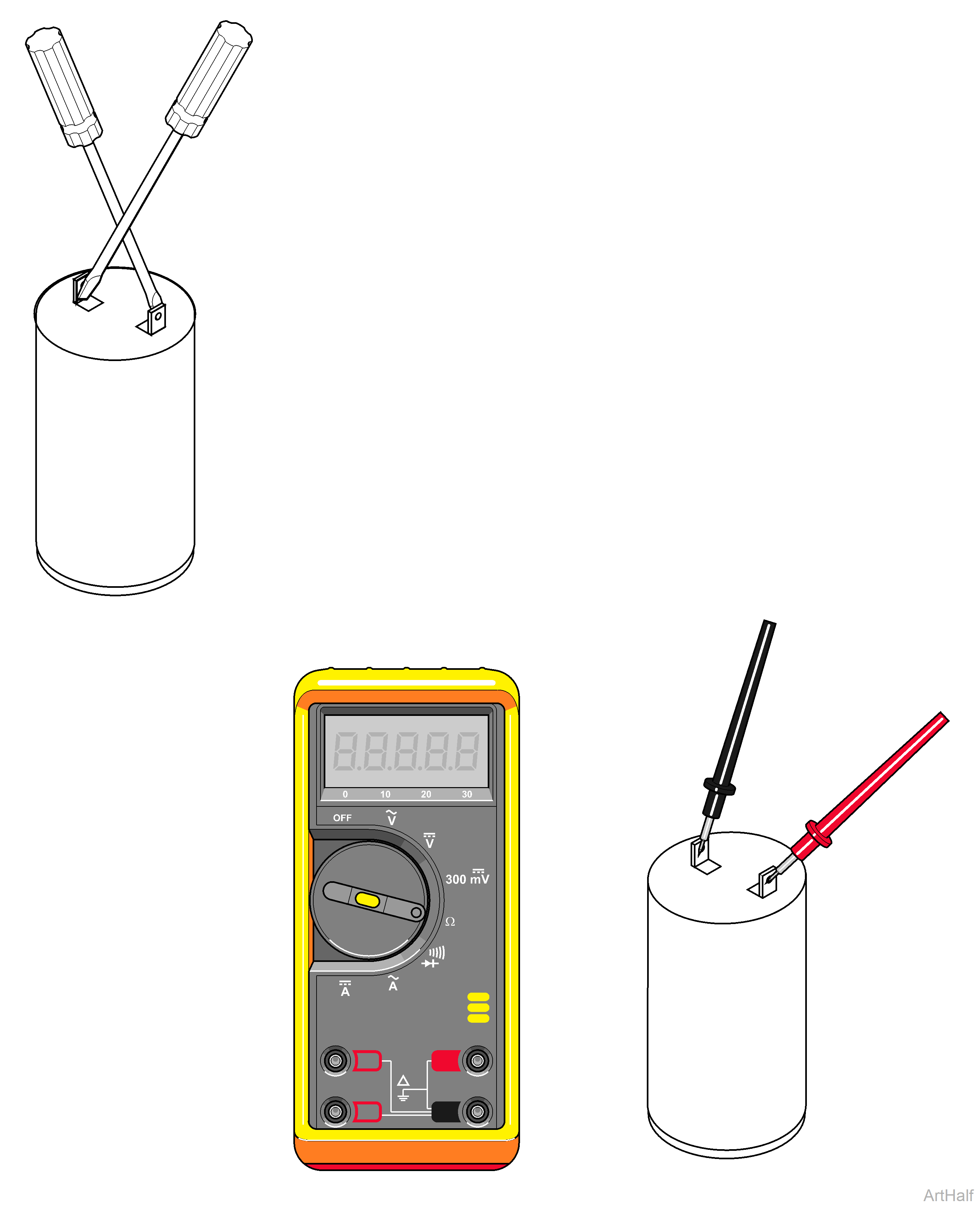

Capacitor Testing

Midmark® 1000 Capacitor

1.Disconnect power. Access run capacitor in lower compartment. Refer to: Lower Compartment.

2.Discharge capacitor by touching screwdrivers to both contacts on the capacitor and to each other.

3.Set meter to Ω reading.

4.Place meter probes on capacitor connectors. Reverse the leads, this should produce the same reading.

Meter Reading	Status	Required Action
“O” or “Open” Reading		Replace Capacitor
Start Low and Increases		Capacitor

Open
