Power Supply 153808 Replacing Fuses Test and Repair
DANGER
To prevent the possibility of electrical shock, always disconnect electrical mains supply to the Power Supply before removing the cover. Failure to comply with these instructions could result in severe personal injury or death.
Refer to: Fuse Specifications
To Replace Fuses
1.Disconnect power.
2.Remove cover. Refer to:Accessing the Power Supply
3.Extract fuse to be replaced.
4.Install new fuse.
5.Install cover and secure with screws and lock washers.
6.Reconnect power to the power supply.

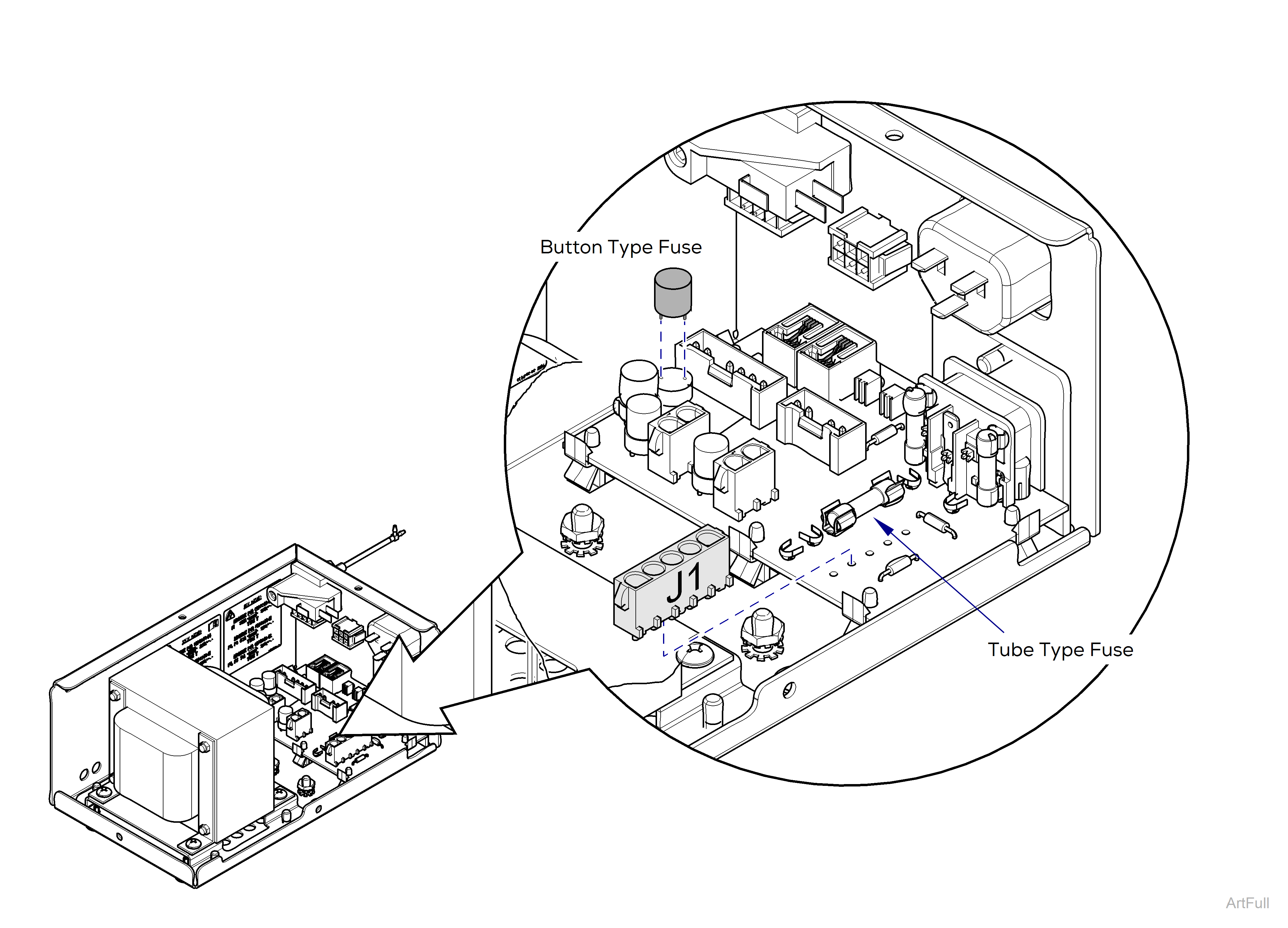

Lift straight up to remove button type fuses.
