Power Supply 153606 and 153642 Access Procedures

153606 and 153642 Power Supply Access

The Power Supply, converts, regulates and distributes electric power from the electrical mains supply to components installed on dental chair and or light.

DANGER

To prevent the possibility of electrical shock, always disconnect electrical mains supply to the Power Supply before removing the cover. Failure to comply with these instructions could result in severe personal injury or death.

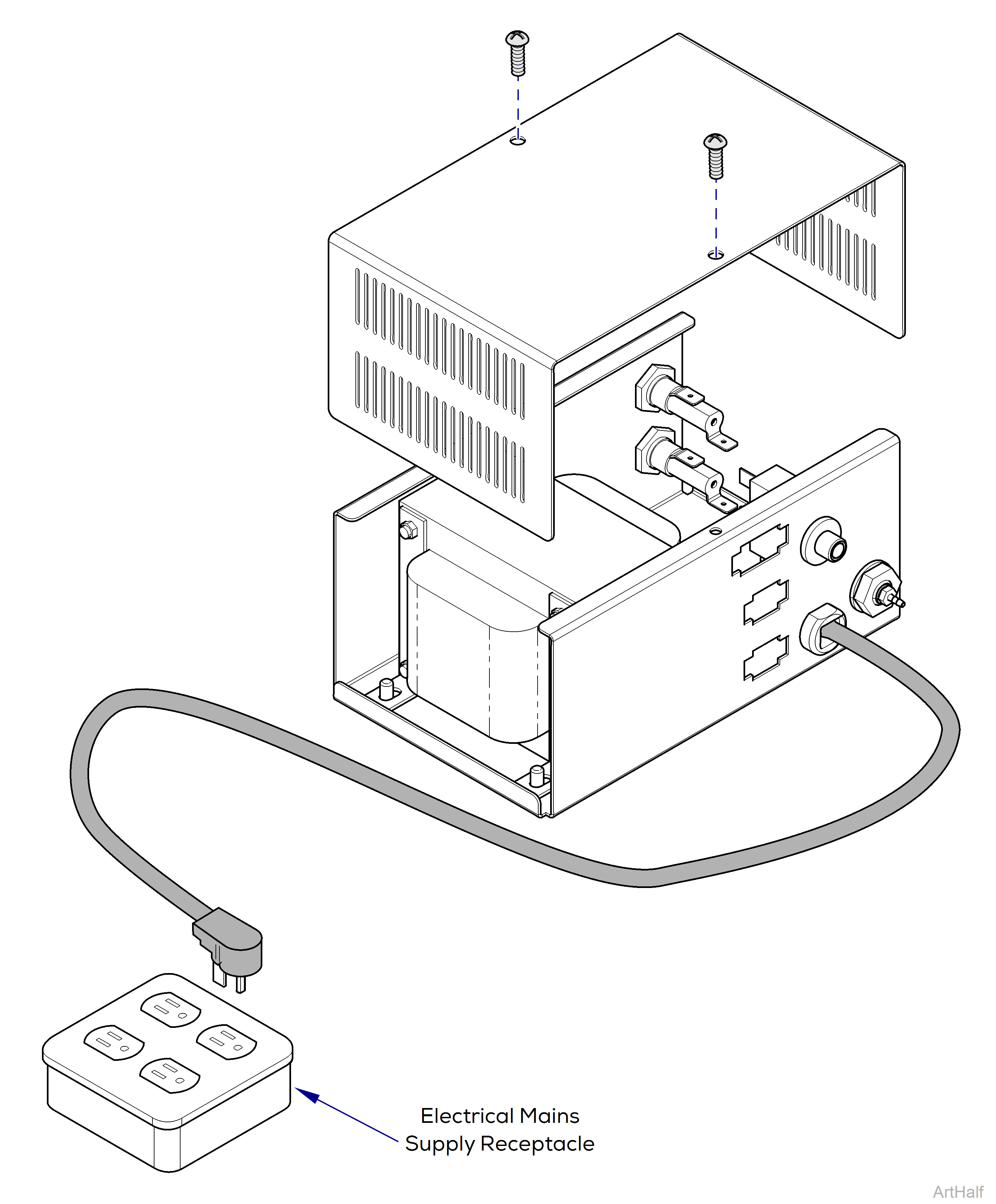

To Access the Power Supply

1.Disconnect power.

2.Remove two screws.

3.Lift cover off power supply.
