Power Supply 153941 (002-2018-XX) Access Procedures

DANGER

To prevent the possibility of electrical shock, always disconnect electrical mains supply to the Power Supply before removing the cover. Failure to comply with these instructions could result in severe personal injury or death.

Power Supply 153941 (002-2018-XX) Access

The Power Supply, converts, regulates and distributes electric power from the electrical mains supply to components installed on Midmark®Dental Chairs.

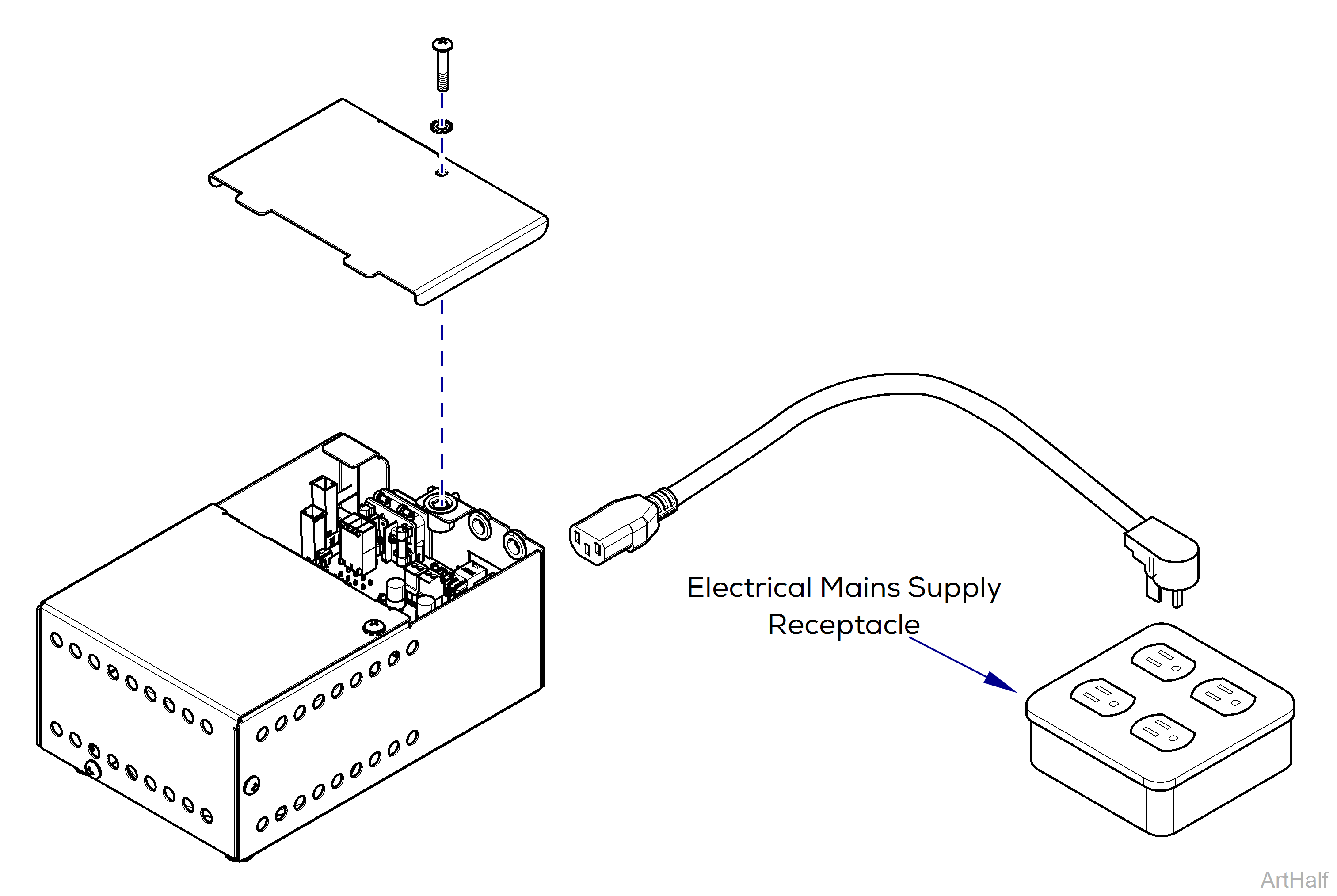

To access the Power Supply

1.Disconnect power.

2.Remove five screws and lock washer from top and one screw and lock washer from top cover

3.Lift top and cover from the Power Supply.
