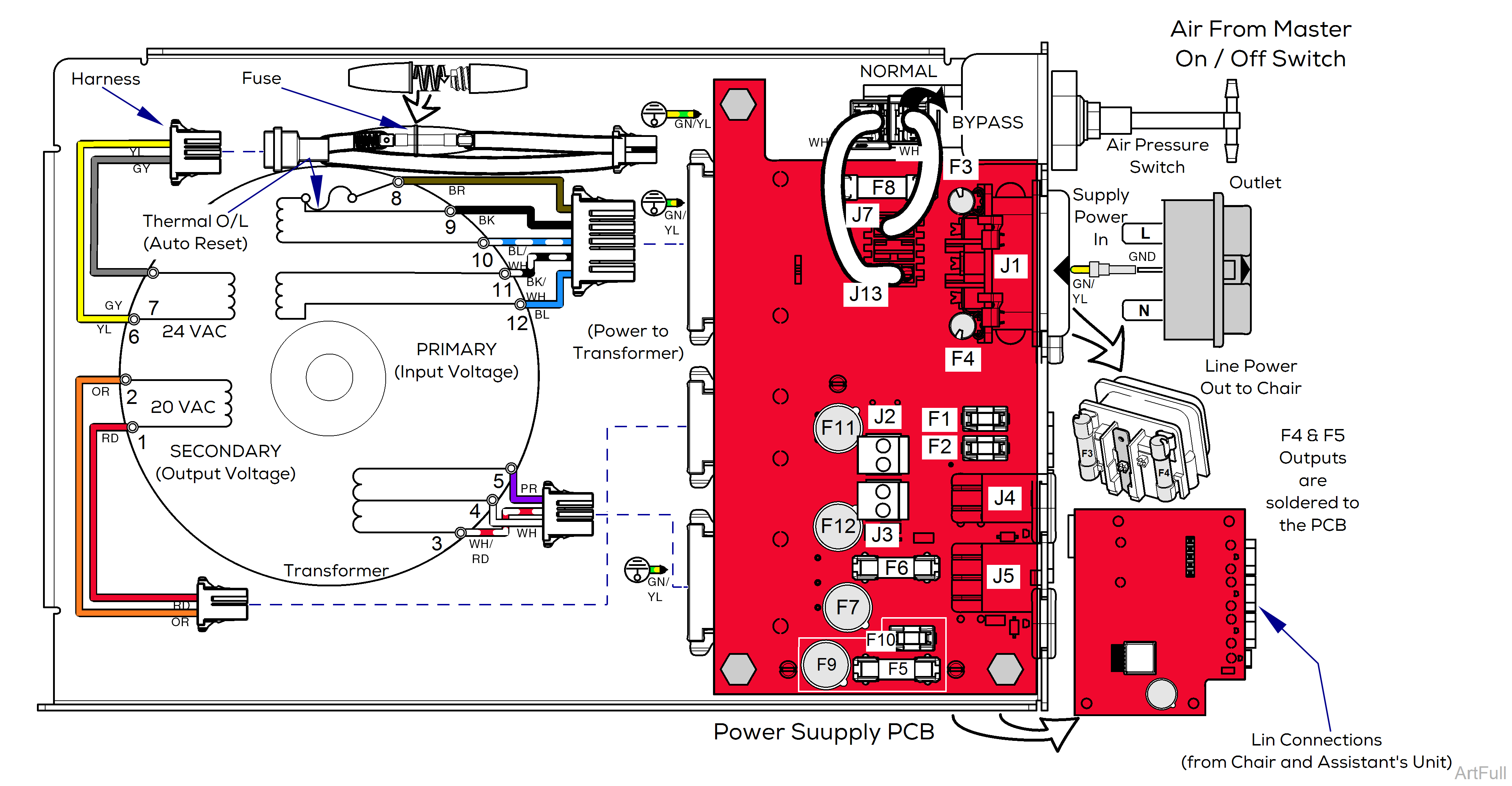

Power Supply 153941 (002-2018-XX) Wiring Diagram
This drawing is for clarity. All leads come out the same side of the transformer.
Equipment Alert
Use care to prevent static discharge when handling PC Boards.
Equipment Alert
230 V~ model requires air pressure to activate chair. If air pressure is unavailable, then plug chair power into supply power cord.
Harness 015-3413-00 - Refer to “A” for other connection
