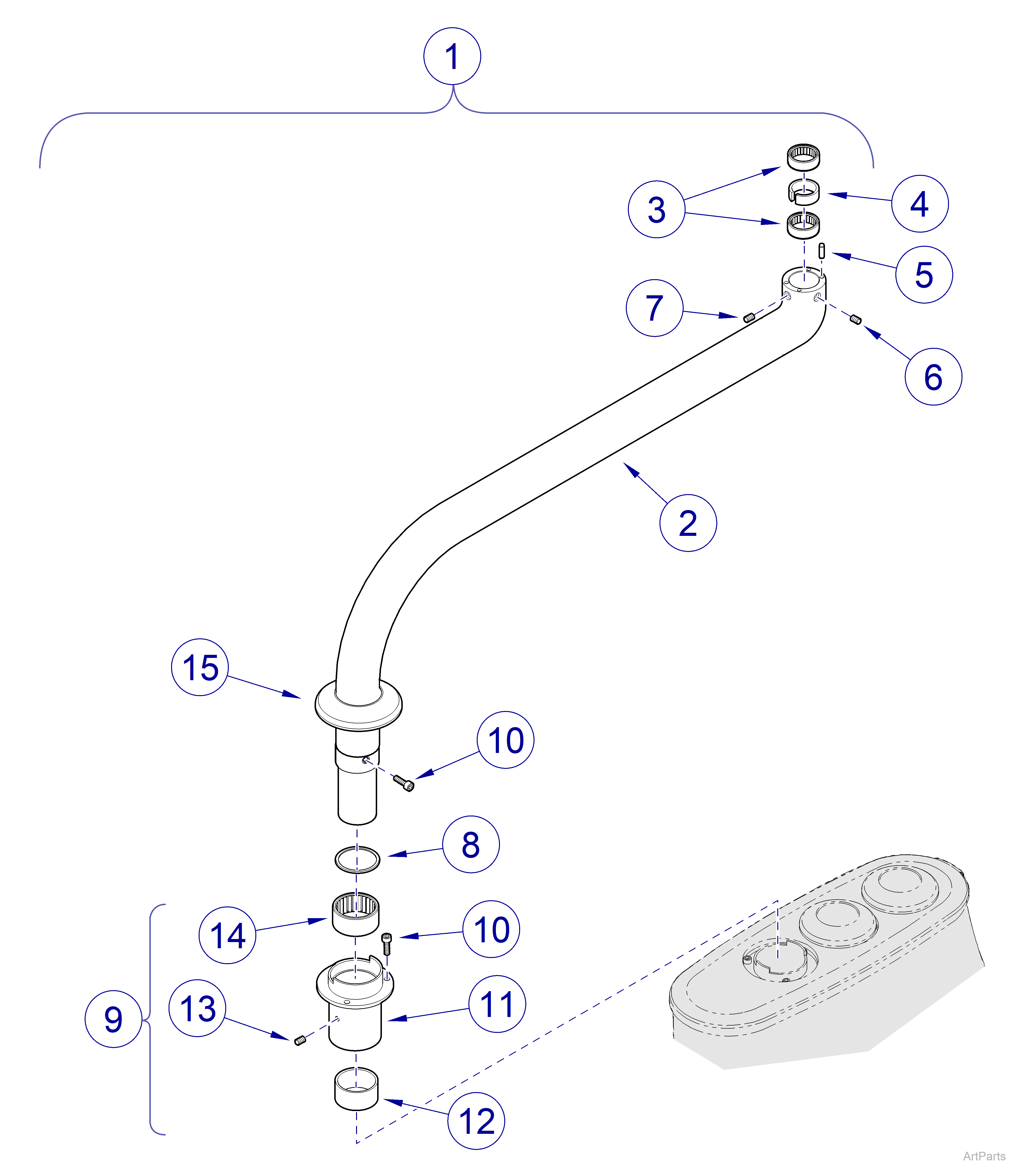

Procenter Console Unit Arm / Bearings
|
Mounted To |
Midmark® Ultra-Series Dental Chair | Elevance® Dental Chair |
| Serial Number | All | All |
| Procenter Console Unit Arm / Bearings | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-2536-00 | Console Mtd. Unit Arm / Bearings - Includes items 2 thru 15 | 1 |
|
2 |
002-0903-02 | Unit Arm Kit - Includes items 2 and 3 | 1 |
|
3 |
016-0856-02 | Needle Bearing | 2 |
|
4 |
016-0837-00 | Slotted Bearing Sleeve | 1 |
|
5 |
122348 | Dowel Pin | 4 |
|
6 |
040-0010-126 | Set Screw |
1 |
|
7 |
040-0010-02 | Set Screw | 1 |
|
8 |
053-1151-01 | Bearing Washer | 1 |
|
9 |
029-2498-00 | Console Bearing Assembly - Includes items 10 thru 14 | 1 |
|
10 |
040-0250-07 | Screw | 4 |
|
11 |
057-0569-00 | Bearing Housing | 1 |
|
12 |
016-0149-20 | Iglide Bearing | 1 |
|
13 |
040-0250-155 | Set Screw | 2 |
|
14 |
016-0856-00 | Needle Bearing | 1 |
|
15 |
053-1221-01 | Trim Ring | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
