1.Access air / water regulators.

In Junction Box / Cabinet Base:

2.Disconnect tubing (1) from fitting (A) of air regulator (2).

3.Disconnect tubing (3) from tubing (4).

4.Disconnect tubing (5) from tubing (6).

5.Disconnect tubing (7) from tubing (8).

6.Remove foot control.

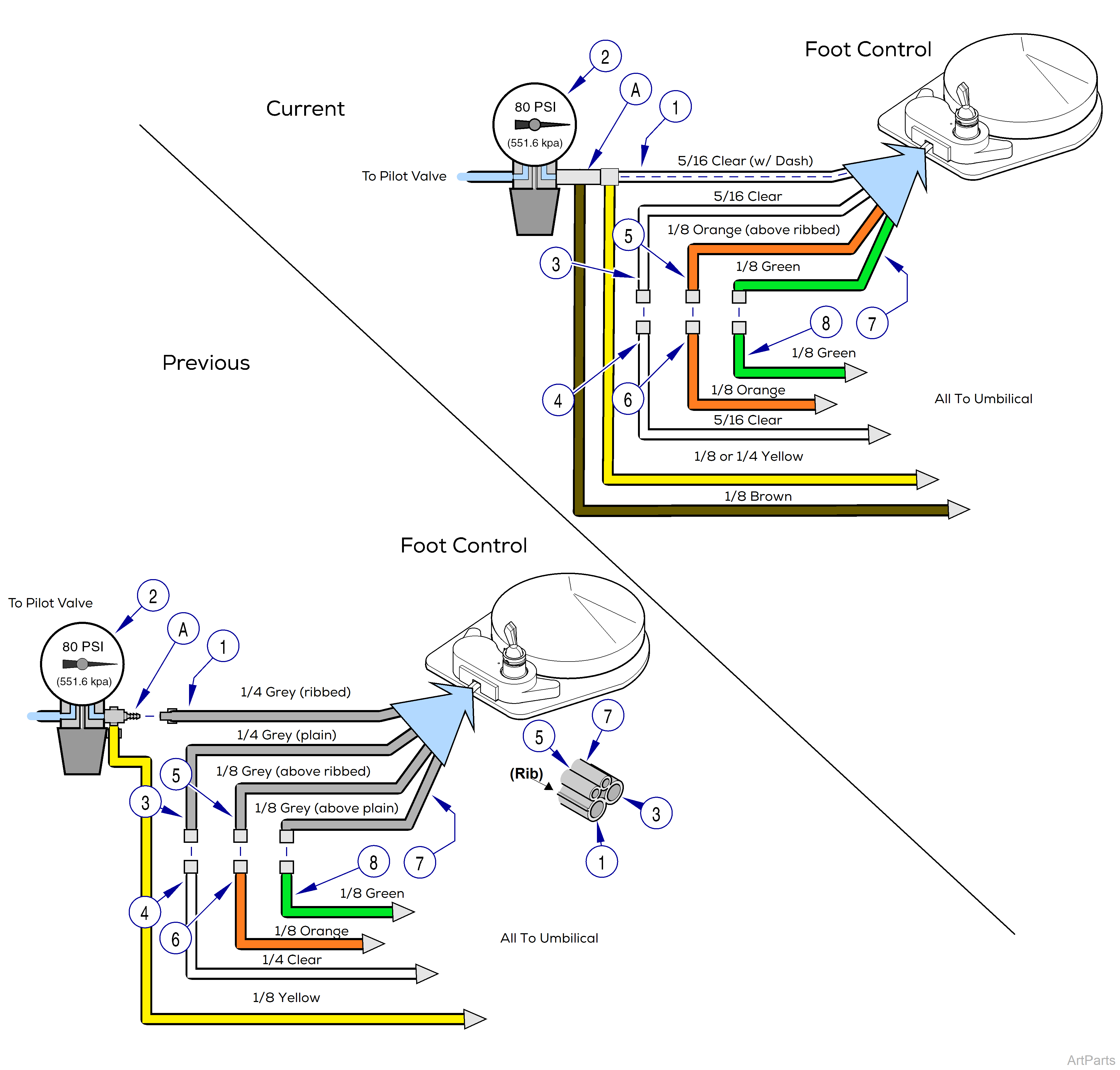

Air to Foot Control

1.Connect tubing (1) from foot control to fitting (A) of air regulator (2). Secure with sleeve.

Handpiece Drive Air

2.Connect tubing (plain) (3) from foot control to tubing (4) from umbilical. Secure with sleeve.

Handpiece Coolant Water Pilot Air

3.Connect tubing (5) from foot control to tubing (6) from umbilical. Secure with uni-clamp.

Handpiece Coolant Air

4.Connect tubing (7) from foot control to tubing (8) from umbilical. Secure with uni-clamp.
