Procenter Systems, 12:00 Casework Mounted Master ON/OFF Switch Valve Test and Repair
Procenter Systems, 12:00 Casework Mounted Master ON/OFF Switch Valve
Removal
1.Turn air manual shut-off valve in cabinet base OFF.

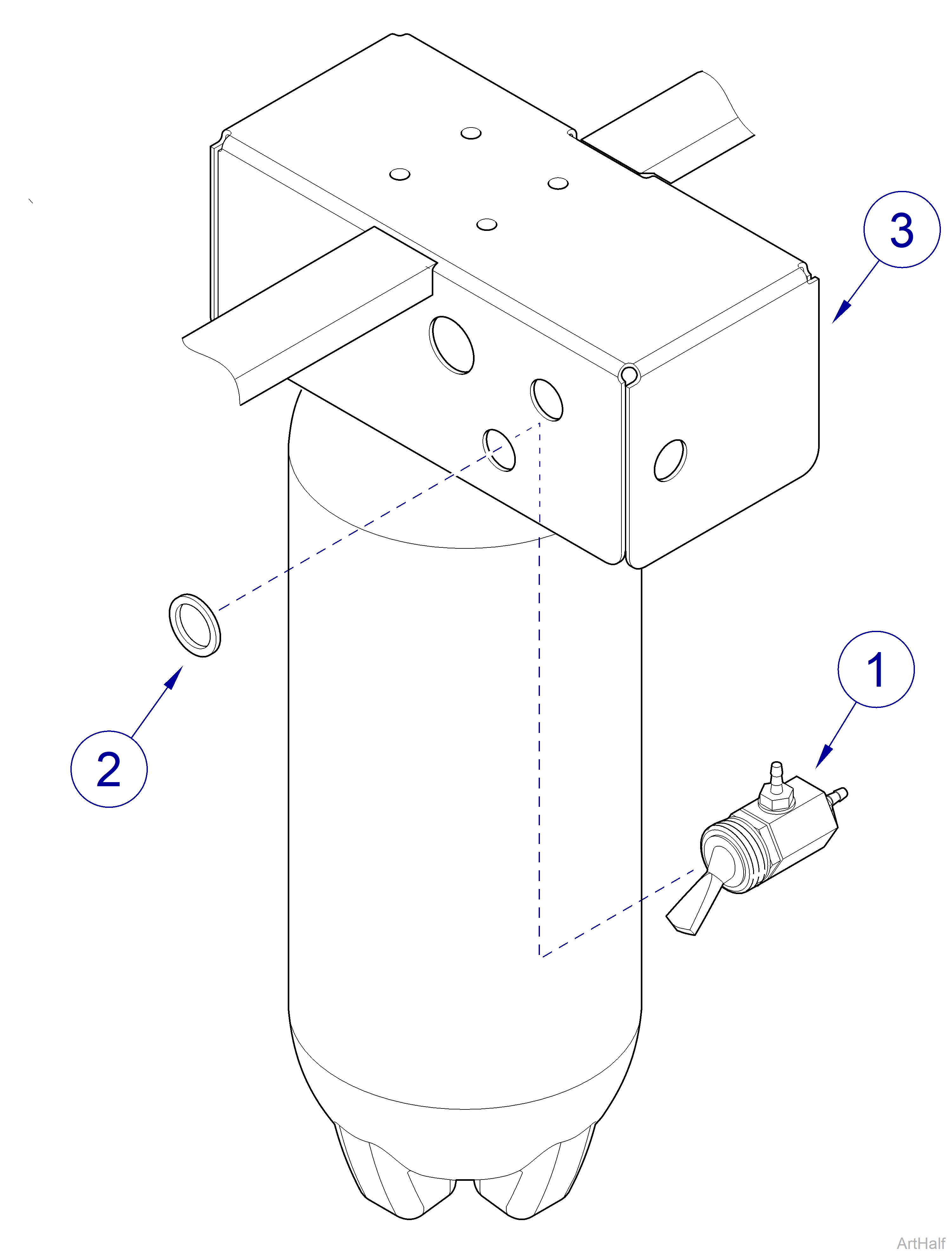

2.Tag and disconnect tubing from toggle valve (1).
3.Hold toggle valve (1) in place and remove trim ring (2); then remove toggle valve (1) from water bottle bracket (3).
Installation
1.Insert toggle valve (1) through water bottle bracket (3) and secure with trim ring (2).
2.Connect tubing to proper fittings of toggle valve (1).
