Procenter Systems, 12:00 Casework Mounted Coolant Water Flush Valve Removal / Installation Test and Repair

Procenter Systems Coolant Water Flush Valve Removal / Installation, 12:00 Mounted

Procenter Systems, 12:00 Casework Mounted Coolant Water Flush Valve Removal / Installation

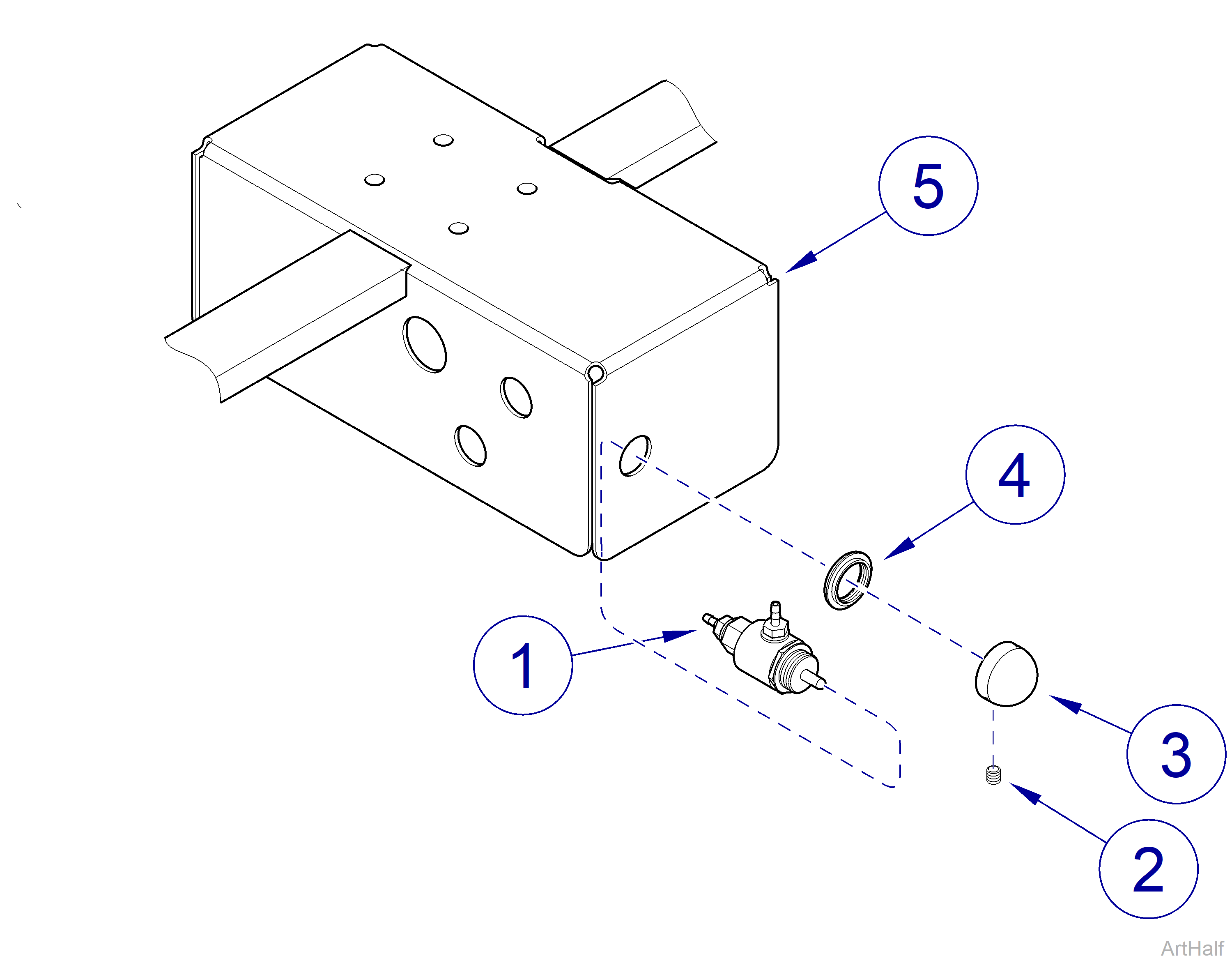

1.Turn Master ON/OFF switch OFF.

2.Tag and disconnect tubing from flush valve (1).

3.Loosen set screw (2) and remove adjustment knob (3).

4.Hold flush valve (1) in place and remove trim ring (4); then remove flush valve (1) from water bottle bracket (5).

1.Insert flush valve (1) through water bottle bracket (5) and secure with trim ring (4).

2.Connect tubing to proper fittings of flush valve (1).

3.Install adjustment knob (3) and tighten set screw (2).
