Procenter Systems Delivery Unit Leveling Adjustment

Procenter Systems Delivery Unit, Chair Mounted Leveling Adjustment

Adjustment

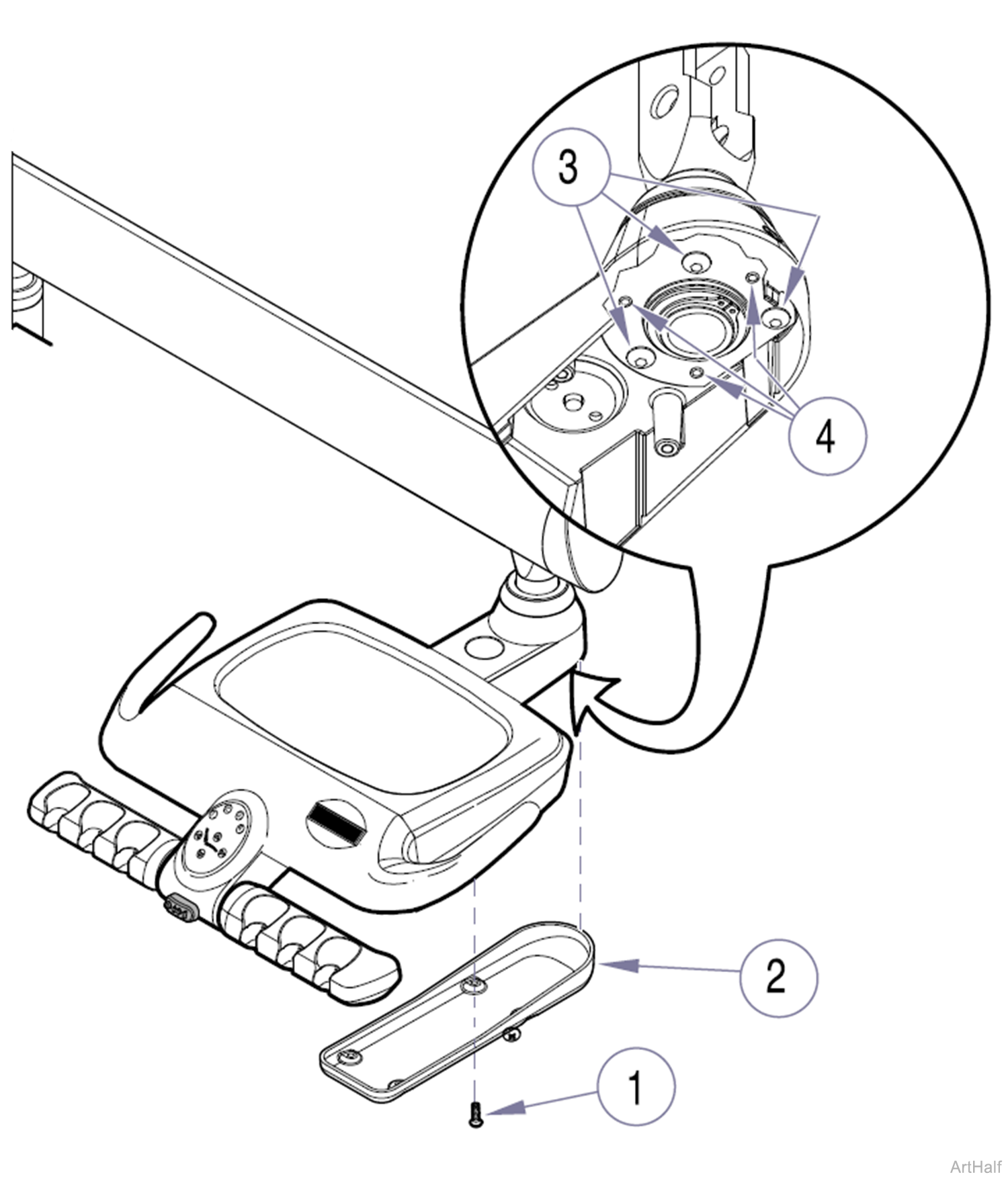

1.Remove four screws (1) and bottom cover (2).

2.Loosen three button-head screws (3) slightly.

3.Place a level on top of delivery unit; then adjust three leveling screws (4) until unit is level.

4.Tighten three button-head screws (3).

5.Replace bottom cover (2) and secure with four screws (1).
