Procenter Systems, LR Delivery Arm Adjustment

Procenter Systems, LR Delivery Arm Leveling Adjustments

Adjustment

1.Remove seat upholstery; then lift seat frame to access connection box.

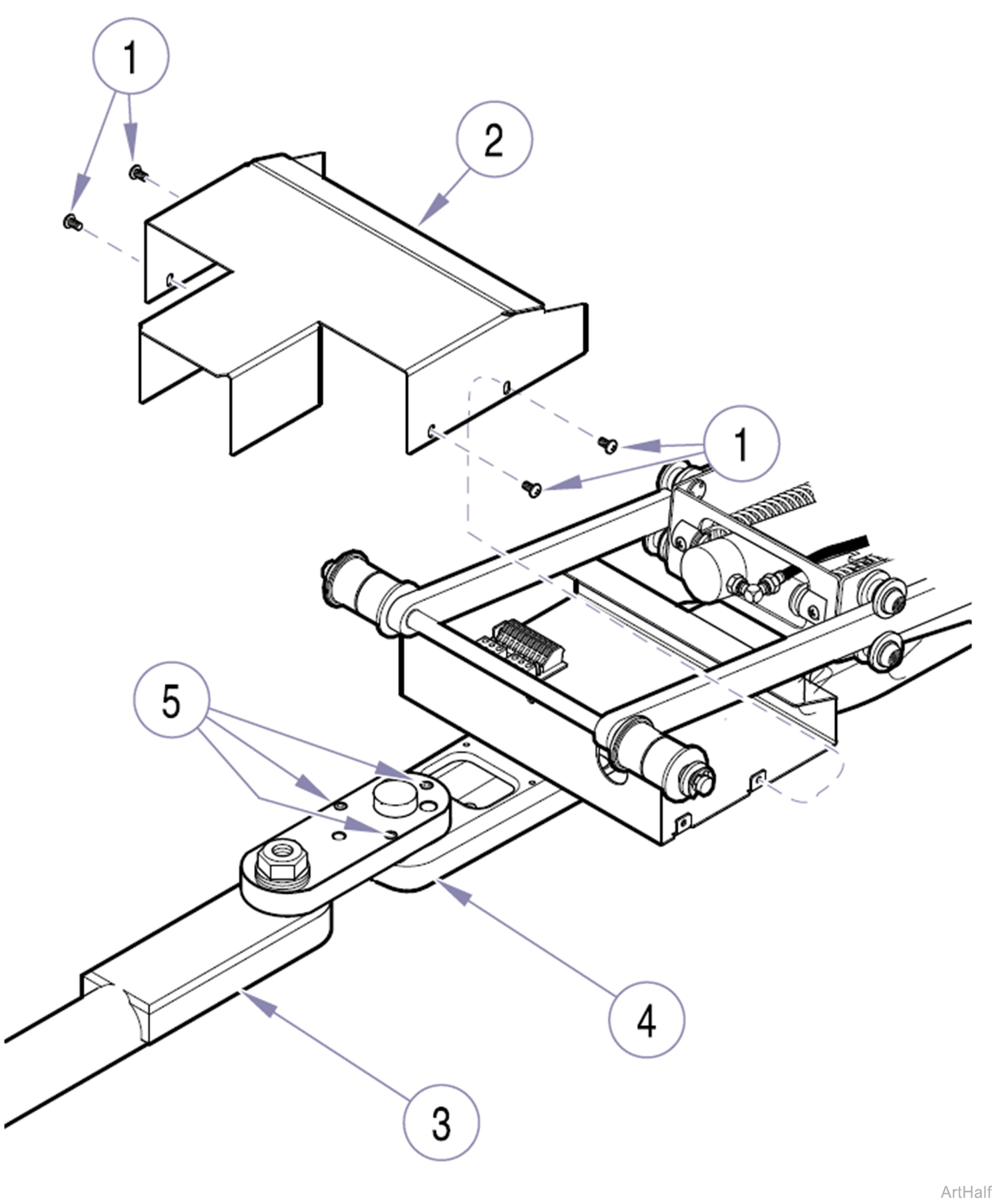

2.Remove four screws (1) and connection box cover (2).

3.Position delivery arm (3) straight out from casting (4) as shown; then adjust three leveling screws (5) until delivery arm is level.

4.Install connection box cover (2) and secure with four screws (1).

5.Lower seat frame and replace seat upholstery.
