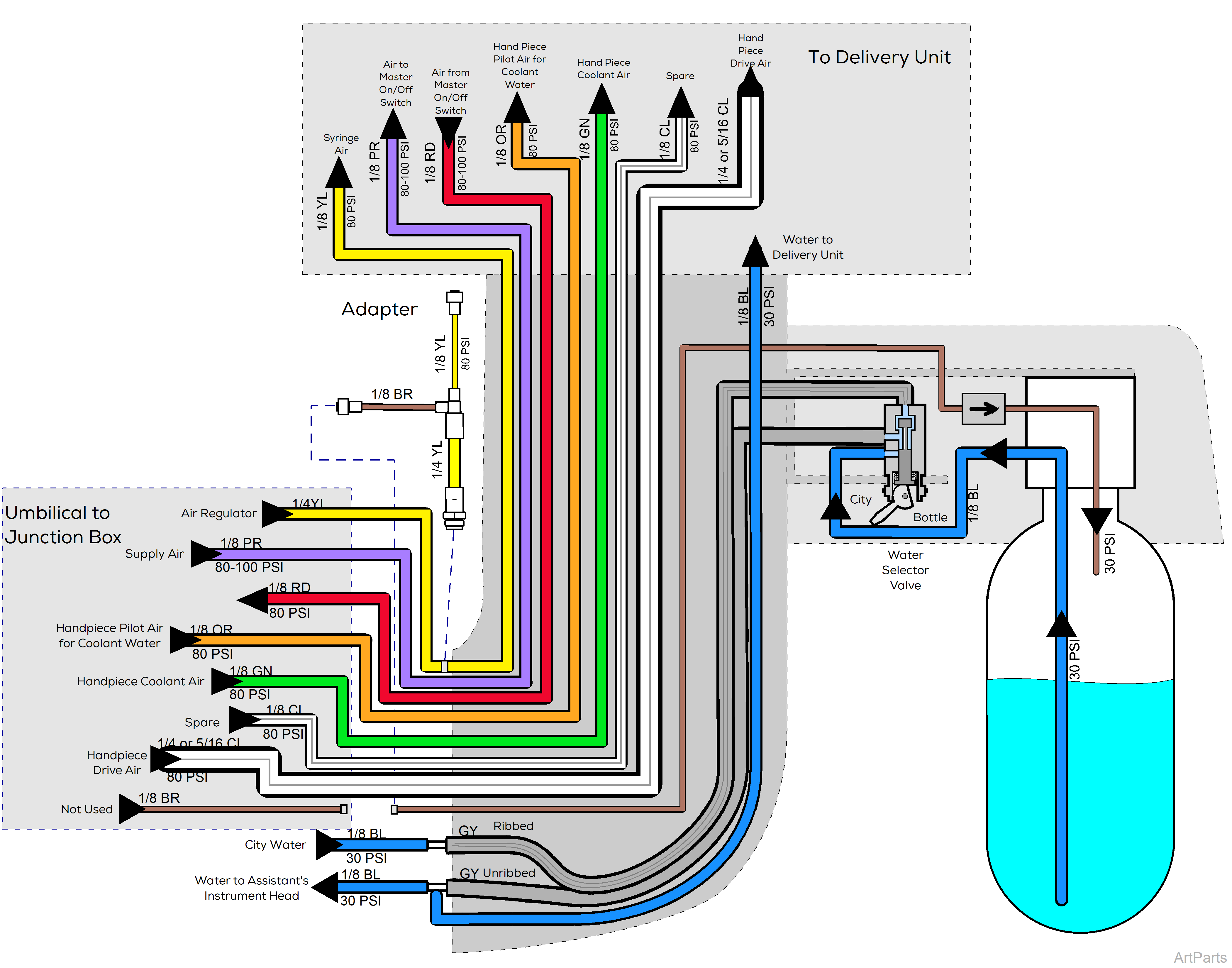

Procenter, Console/LR Mounted on Elevance® Chair Tubing Diagram
Delivery Unit
Lid Assembly
|
Mounted To |
Console / LR |
| Serial Number | All |
Base Assembly
Serial Number Range: V2200 thru V1620896
|
Mounted To |
Console / LR |
| Serial Number | V2200 thru V1620896 |
Serial Number Range: V1620897 thru Present
|
Mounted To |
Console / LR |
| Serial Number | V1620897 thru Present |
Assistant's Units
Standard Unit
|
Mounted To |
Console / Rear Mounted |
| Serial Number | All |
| PSI | kPa |
|---|---|
| 30 | 206.8 |
| 50 | 344.7 |
| 60 | 413.7 |
| 80 | 551.6 |
| 100 | 689.5 |
Compact Unit
|
Mounted To |
Rear Mounted on Cuspidor |
| Serial Number | All |
| PSI | kPa |
|---|---|
| 30 | 206.8 |
| 50 | 344.7 |
| 60 | 413.7 |
| 80 | 551.6 |
| 100 | 689.5 |
Cuspidor
|
Mounted To |
All |
| Serial Number | All |
| PSI | kPa |
|---|---|
| 30 | 206.8 |
| 50 | 344.7 |
| 60 | 413.7 |
| 80 | 551.6 |
| 100 | 689.5 |
Junction Box Supply Connections
Serial Number Range: Prior to V1349187
|
Mounted To |
All |
| Serial Number | Prior to V1349187 |
| PSI | kPa |
|---|---|
| 30 | 206.8 |
| 50 | 344.7 |
| 60 | 413.7 |
| 80 | 551.6 |
| 100 | 689.5 |
Serial Number Range: V1349188 thru Present
|
Mounted To |
All |
| Serial Number | V1349188 thru Present |
| PSI | kPa |
|---|---|
| 30 | 206.8 |
| 50 | 344.7 |
| 60 | 413.7 |
| 80 | 551.6 |
| 100 | 689.5 |
Water Bottle
Console Mounted Unit
Serial Number Range: Prior to V1349187
|
Mounted To |
Console |
| Serial Number | Prior to V1349187 |
| PSI | kPa |
|---|---|
| 30 | 206.8 |
| 50 | 344.7 |
| 60 | 413.7 |
| 80 | 551.6 |
| 100 | 689.5 |
Serial Number Range: V1349188 thru Present
|
Mounted To |
Console |
| Serial Number | V1349188 thru Present |
| PSI | kPa |
|---|---|
| 30 | 206.8 |
| 50 | 344.7 |
| 60 | 413.7 |
| 80 | 551.6 |
| 100 | 689.5 |
LR / Rear Mounted Unit
Serial Number Range: Prior to V1349187
|
Mounted To |
LR / Rear |
| Serial Number | Prior to V1349187 |
| PSI | kPa |
|---|---|
| 30 | 206.8 |
| 50 | 344.7 |
| 60 | 413.7 |
| 80 | 551.6 |
| 100 | 689.5 |
Serial Number Range: V1349188 thru V1515400
|
Mounted To |
LR / Rear |
| Serial Number | V1349188 thru V1515400 |
| PSI | kPa |
|---|---|
| 30 | 206.8 |
| 50 | 344.7 |
| 60 | 413.7 |
| 80 | 551.6 |
| 100 | 689.5 |
Serial Number Range: V1515401 thru Present
|
Mounted To |
LR / Rear |
| Serial Number | V1515401 thru Present |
| PSI | kPa |
|---|---|
| 30 | 206.8 |
| 50 | 344.7 |
| 60 | 413.7 |
| 80 | 551.6 |
| 100 | 689.5 |
