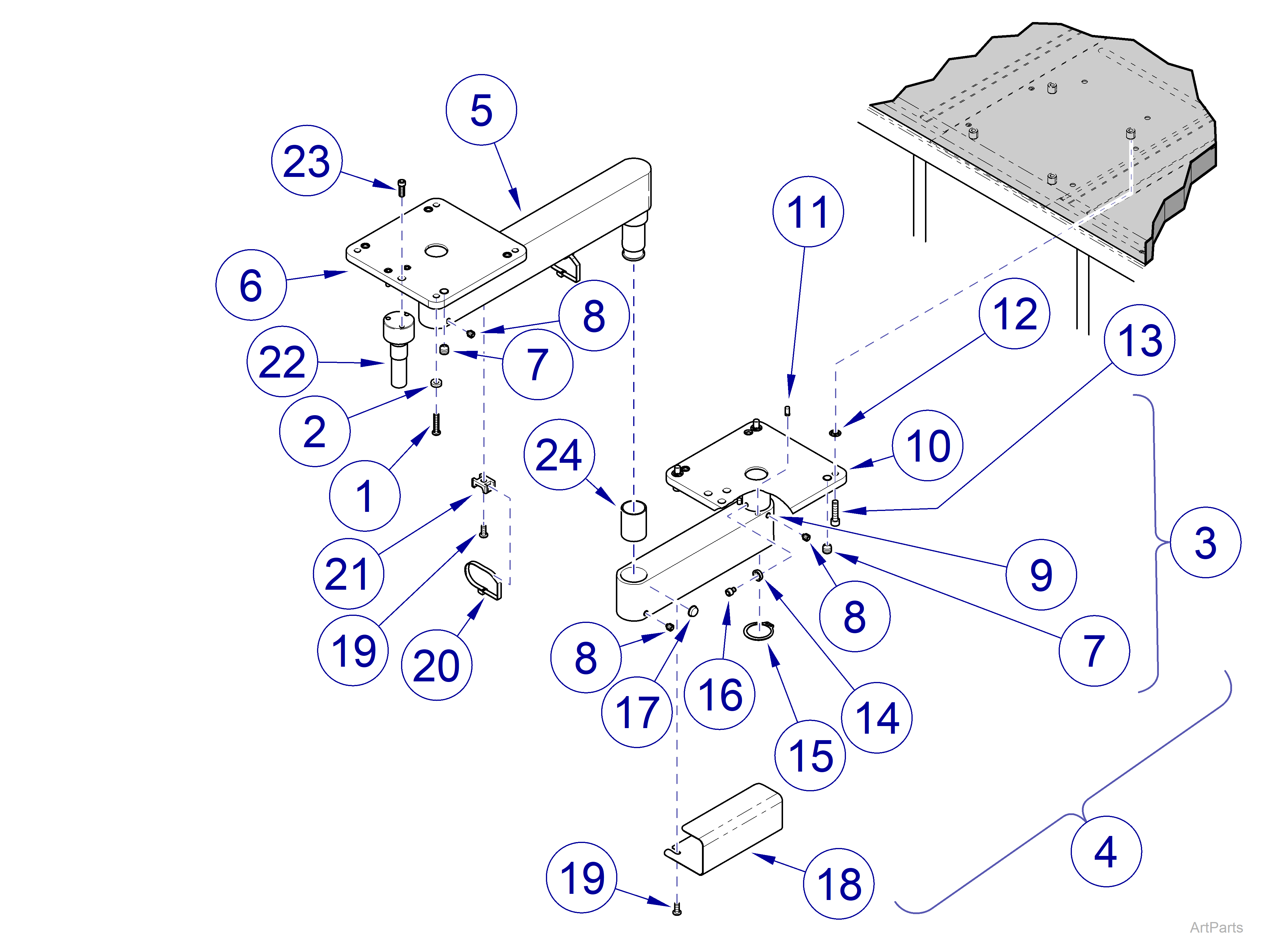

Procenter Cabinet Mount Arm for 12:00 and FTC
Serial Number Range: PZ1000 thru Present and V733200 thru V842127
|
Model |
153659 |
| Serial Number | PZ1000 thru Present and V733200 thru V842127 |
| Procenter Cabinet Mount Arm for 12:00 and FTC | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0010-44 | Screw Phillips Pan Head #10-24 x 1” | 4 |
|
2 |
045-0001-97 | #10 Plain Washer | 4 |
|
3 |
Work Surface Mount Arm Assembly- includes items 7 thru 10 | 1 | |
|
4 |
029-2765-00 |
Cabinet Mount Arm Assembly- includes items 9 thru 17 | NLA |
|
5 |
002-10990-00 | Work Surface Mount Arm Assembly - Includes items 8 and 24 | 1 |
|
6 |
030-1634-00 |
Work Surface Pivot Mount | NSS |
|
7 |
040-0375-69 | Set Screw 3/8-16 x 3/8” | 9 |
|
8 |
040-0250-155 | Brass Tip Set Screw 1/4-20 x 1/4” | AR |
|
9 |
002-10988-00 | Cabinet Mount Arm - Includes items 8, 11, 17 and 24 | 1 |
|
10 |
030-1668-00 | Cabinet Pivot Weldment | 1 |
|
11 |
042-0067-00 | Groove Pin 3/16” x 5/8” | 2 |
|
12 |
042-0201-00 | Push Retainer | 4 |
|
13 |
102975 | Screw Socket Head 1/4-20 x 1” | 4 |
|
14 |
053-1187-00 | Base Cover Screw #10 | 1 |
|
15 |
042-0056-00 | Retaining Ring | 1 |
|
16 |
040-0010-87 | Screw #10-32 x 1/4” | 1 |
|
17 |
053-0013-00 | Self Adhesive Bumper | 2 |
|
18 |
050-5280-50 | Tube Guide | 1 |
|
19 |
121980-5 | Screw #10-24 x 1/2” | 4 |
|
20 |
102308 | Cable Tie | 2 |
|
21 |
016-0889-00 | Mounting Platform Cable Tie | 2 |
|
22 |
057-0855-00 | Instrument Pivot Pin | 1 |
|
23 |
040-0010-108 | Screw #10-32 x 5/8” | 3 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

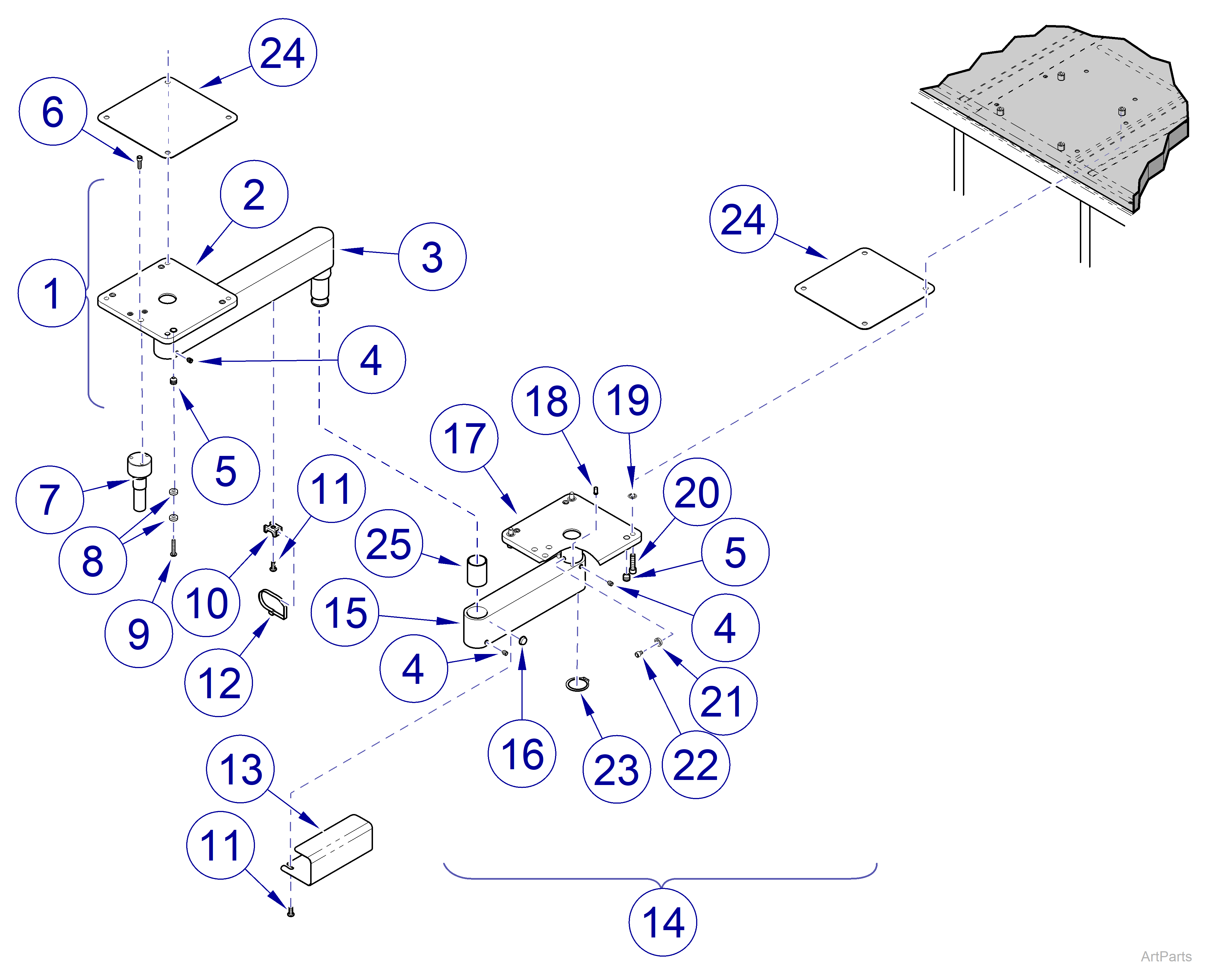

Serial Number Range: V842128 thru Present
|
Model |
153659 |
| Serial Number | V842128 thru Present |
| Procenter Cabinet Mount Arm for 12:00 and FTC | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Work Surface Mount Arm Assembly- includes items 2 thru 5 | 1 | |
|
2 |
030-1634-00 |
Work Surface Mount Arm Assembly | NSS |
|
3 |
002-10990-00 | Work Surface Pivot Mount - Includes items 4 and 25 | 1 |
|
4 |
040-0250-155 |
Brass Tip Set Screw 1/4-20 x 1/4” |
9 |
|
5 |
040-0375-69 |
Set Screw 3/8-16 x 3/8” |
AR |
|
6 |
040-0010-108 | Screw #10-32 x 5/8” | 3 |
|
7 |
057-0855-00 | Instrument Pivot Pin | 1 |
|
8 |
045-0001-92 | Plain Washer 1/4” | 8 |
|
9 |
040-0010-44 | Screw - Phillips Pan Head #10-24 x 1” | 4 |
|
10 |
016-0889-00 | Mounting Platform Cable Tie | 2 |
|
11 |
121980-5 | Screw #10-24 x 1/2” | 4 |
|
12 |
102308 | Cable Tie | 2 |
|
13 |
050-5280-50 | Tube Guide | 1 |
|
14 |
029-4203-00 | Cabinet Mount Arm Assembly -includes items 15 thru 23 | 1 |
|
15 |
002-10988-00 | Cabinet Mount Arm - Includes items 4, 16, 18 and 25 | 1 |
|
16 |
053-0013-00 | Self Adhesive Bumper | 2 |
|
17 |
030-1668-00 | Cabinet Pivot Weldment | 1 |
|
18 |
042-0067-00 | Groove Pin 3/16” x 5/8” | 2 |
|
19 |
042-0201-00 | Push Retainer | 4 |
|
20 |
102975 | Screw - Socket Head 1/4-20 x 1” | 4 |
|
21 |
053-1187-00 | Screw - Base Cover #10 | 1 |
|
22 |
040-0010-87 | Screw #10-32 x 1/4” | 1 |
|
23 |
042-0056-00 | Retaining Ring | 1 |
|
24 |
050-6913-00-216 | Leveling Plate | 2 |
|
25 |
016-0076-32 | DU Bushing 1" x 1-1/2" | 3 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
