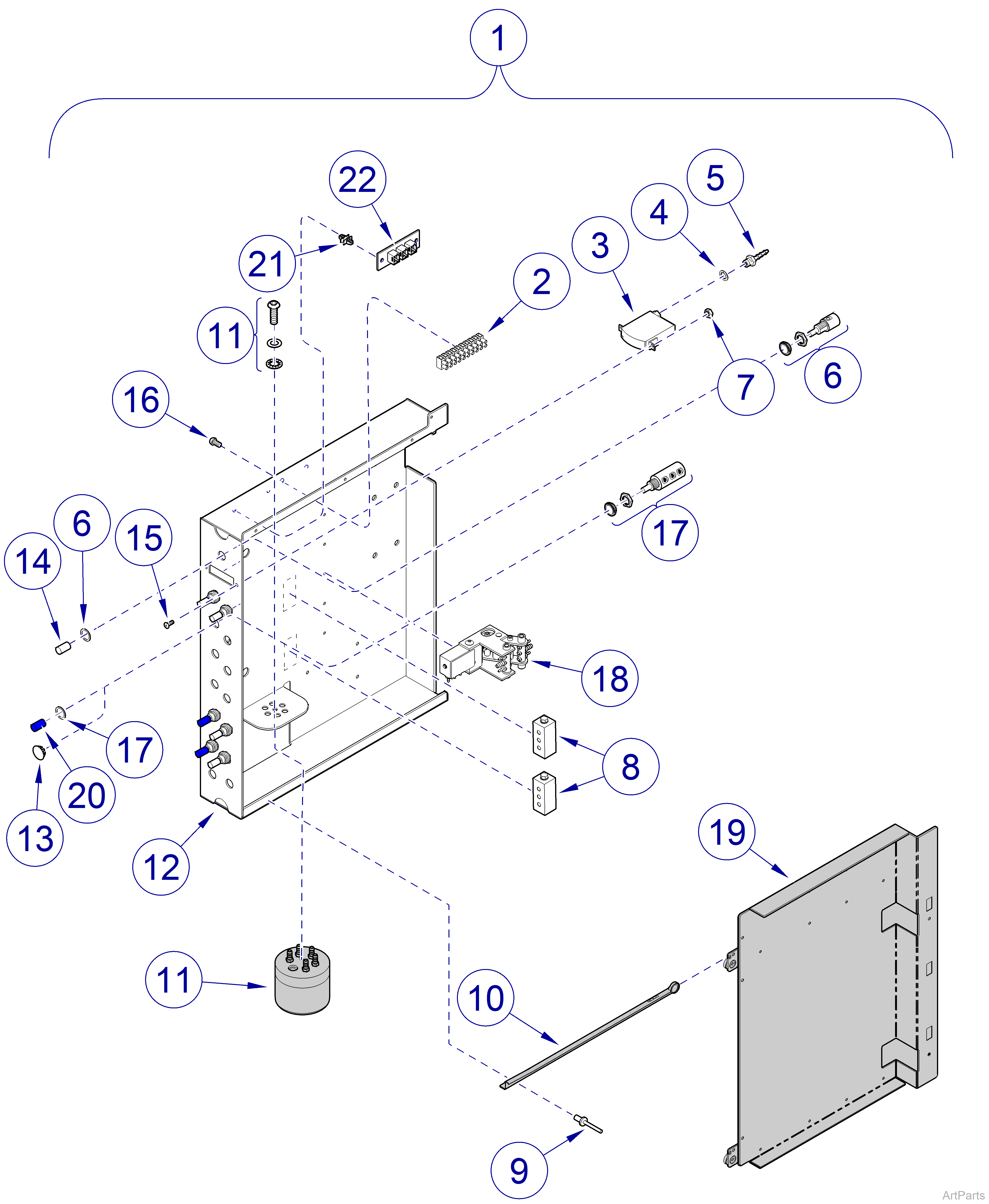

Procenter Control Panel for 12:00 and FTC
Serial Number Range: PZ1000 thru Present and V2200 thru V60632
|
Model |
153659 |
| Serial Number | PZ1000 thru Present and V2200 thru V60632 |
| Procenter Control Panel for 12:00 and FTC | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-2760-00 | Delivery System Control - includes items 2 thru 16 | 1 |
|
2 |
015-1457-00 | Terminal Block | 1 |
|
3 |
016-0839-01 | Pressure Gauge | 1 |
|
4 |
045-0001-130 | Hard Fiber Washer | 2 |
|
5 |
109714 | Barb Fitting | 1 |
|
6 |
029-2449-01 | Air Control Valve | 1 |
|
7 |
111102 | Nut #6-32 | 2 |
|
8 |
029-2585-00 | Manifold Assembly | 2 |
|
9 |
042-0010-15 | Pop Rivet | 6 |
|
10 |
002-1056-00 | Drawer Runner | 2 |
|
11 |
Refer to: | Air/Oil Separator Assembly | - |
|
12 |
050-5200-50 | 12:00 Control Panel | 1 |
|
13 |
053-1915-00 | Hole Plug | AR |
|
14 |
053-1165-00 | Fluted Control Knob | AR |
|
15 |
040-0006-98 | Screw #6-32 x 3/8” | 2 |
|
16 |
040-0006-80 | Screw #6-32 x 1/2” | 2 |
|
17 |
029-3411-00 | Water Control Valve | AR |
|
18 |
002-1880-00 | Kink Valve Assembly | AR |
|
19 |
Refer to: | Side Mount 12:00 / FTC | - |
|
20 |
053-1165-01 | Blue Fluted Control Knob | AR |
|
21 |
053-1455-00 | Dual Snap On PCB Standoff for Dr. Unit Only | 2 |
|
22 |
015-1776-00 | Chair Control Connector Board for Dr. Unit Only | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V60633 thru V203632
|
Model |
153659 |
| Serial Number | V60633 thru V203632 |
| Procenter Control Panel for 12:00 and FTC | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-2760-00 | Delivery System Control - includes items 2 thru 16 | 1 |
|
2 |
015-1457-00 | Terminal Block | 1 |
|
3 |
016-0839-01 | Pressure Gauge | 1 |
|
4 |
045-0001-130 | Hard Fiber Washer | 2 |
|
5 |
109714 | Barb Fitting | 1 |
|
6 |
029-2449-01 | Air Control Valve | 1 |
|
7 |
111102 | Nut #6-32 | 2 |
|
8 |
029-2585-00 | Manifold Assembly | 2 |
|
9 |
042-0010-15 | Pop Rivet | 6 |
|
10 |
002-1056-00 | Drawer Runner | 2 |
|
11 |
Refer to: | Air/Oil Separator Assembly | - |
|
12 |
050-5200-50 | 12:00 Control Panel | 1 |
|
13 |
053-1915-00 | Hole Plug | AR |
|
14 |
053-1165-00 | Fluted Control Knob | AR |
|
15 |
040-0006-98 | Screw #6-32 x 3/8” | 2 |
|
16 |
040-0006-80 | Screw #6-32 x 1/2” | 2 |
|
17 |
029-3411-00 | Water Control Valve | AR |
|
18 |
002-1880-00 | Kink Valve Assembly | AR |
|
19 |
Refer to: | Side Mount 12:00 / FTC | - |
|
20 |
053-1165-01 | Blue Fluted Control Knob | AR |
|
21 |
053-1455-00 | Dual Snap On PCB Standoff for Dr. Unit Only | 2 |
|
22 |
015-1776-00 | Chair Control Connector Board for Dr. Unit Only | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

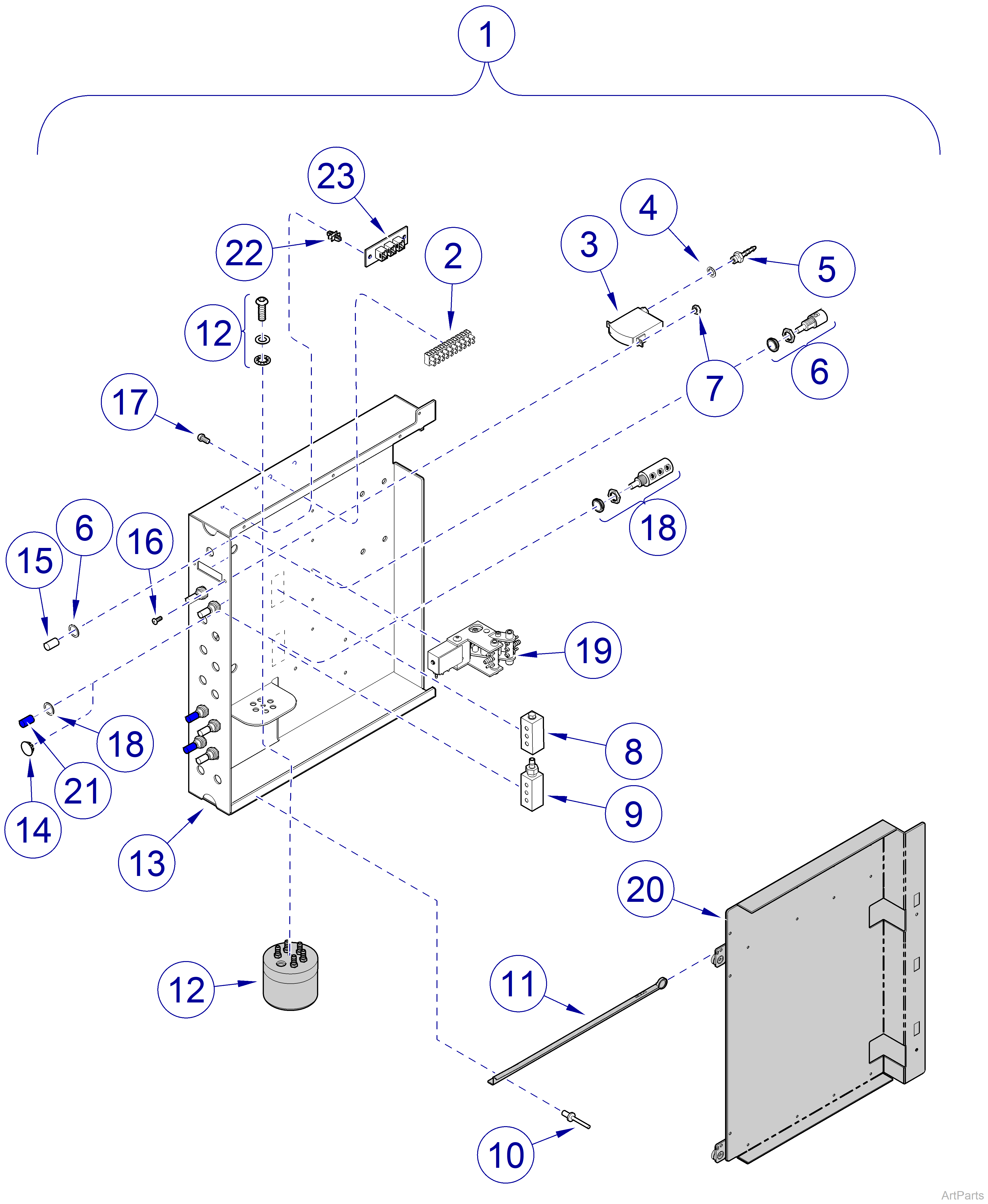

Serial Number Range: V203633 thru V842127
|
Model |
153659 |
| Serial Number | V203633 thru V842127 |
| Procenter Control Panel for 12:00 and FTC | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-2760-00 | Delivery System Control - includes items 2 thru 17 | 1 |
|
2 |
015-1457-00 | Terminal Block | 1 |
|
3 |
016-0839-01 | Pressure Gauge | 1 |
|
4 |
045-0001-130 | Hard Fiber Washer | 2 |
|
5 |
109714 | Barb Fitting | 1 |
|
6 |
029-2449-01 | Air Control Valve | 1 |
|
7 |
111102 | Nut #6-32 | 2 |
|
8 |
029-2585-00 | Manifold Assembly | 1 |
|
9 |
029-3643-00 | Manifold Assembly with Barbed Fitting | 1 |
|
10 |
042-0010-15 | Pop Rivet | 6 |
|
11 |
002-1056-00 | Drawer Runner | 2 |
|
12 |
Refer to: | Air/Oil Separator Assembly | - |
|
13 |
050-5200-50 | 12:00 Control Panel | 1 |
|
14 |
053-1915-00 | Hole Plug | AR |
|
15 |
053-1165-00 | Fluted Control Knob | AR |
|
16 |
040-0006-98 | Screw #6-32 x 3/8” | 2 |
|
17 |
040-0006-80 | Screw #6-32 x 1/2” | 2 |
|
18 |
029-3411-00 | Water Control Valve | AR |
|
19 |
002-1880-00 | Kink Valve Assembly | AR |
|
20 |
Refer to: | Side Mount 12:00 / FTC | - |
|
21 |
053-1165-01 | Blue Fluted Control Knob | AR |
|
22 |
053-1455-00 | Dual Snap On PCB Standoff for Dr. Unit Only | 2 |
|
23 |
015-1776-00 | Chair Control Connector Board for Dr. Unit Only | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

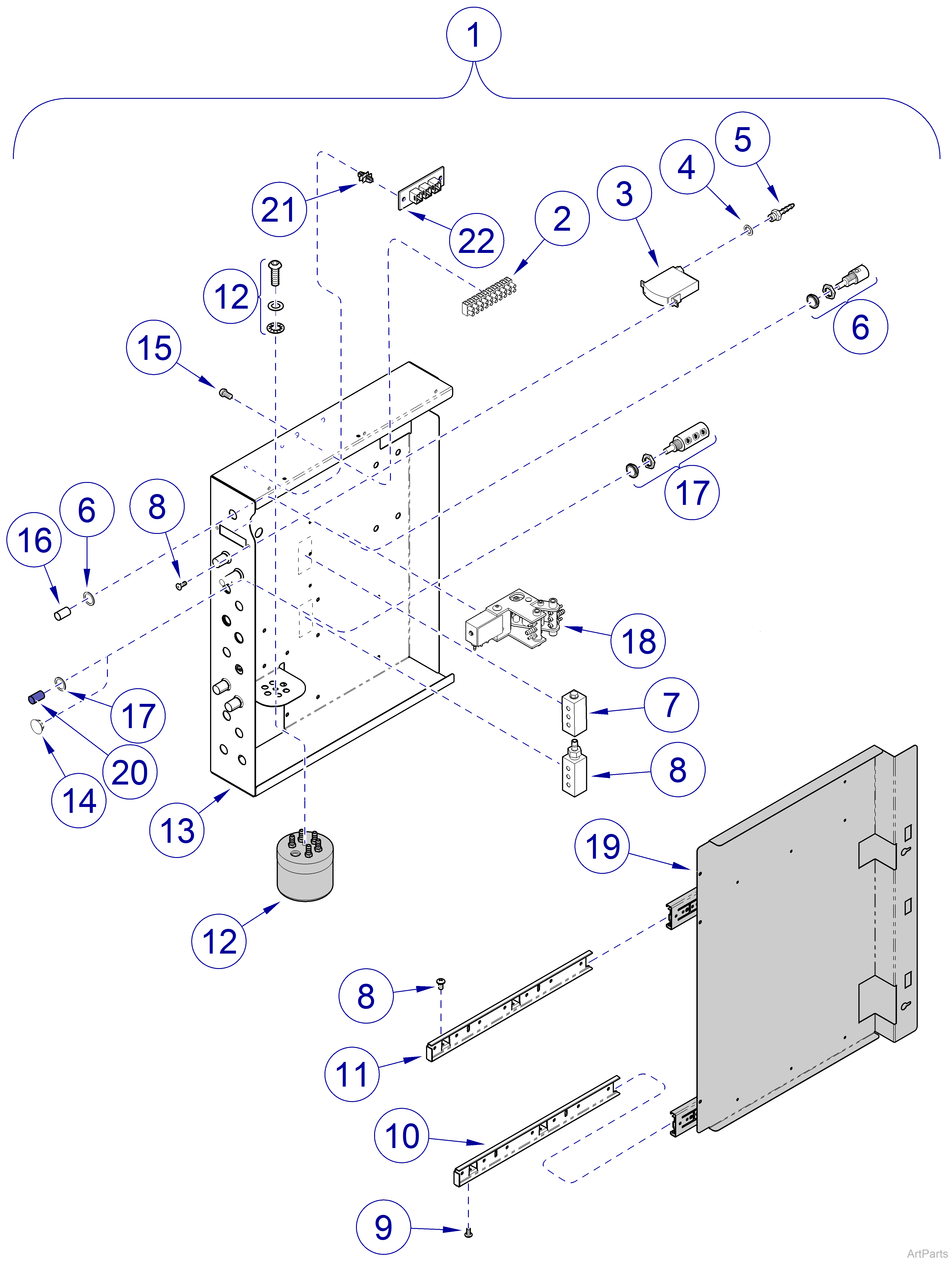

Serial Number Range: V842128 thru V1858143
|
Model |
153659 |
| Serial Number | V842128 thru V1858143 |
| Procenter Control Panel for 12:00 and FTC | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Delivery System Control Options- includes items 2 thru 13 and 15 | ||
| 002-10437-01 | LH Mounts | 1 | |
| 002-10437-00 | RH Mount - Shown | 1 | |
|
2 |
015-1457-00 | Terminal Block | 1 |
|
3 |
016-0839-01 | Pressure Gauge | 1 |
|
4 |
045-0001-130 | Hard Fiber Washer | 2 |
|
5 |
109714 | Barb Fitting | 1 |
|
6 |
029-2449-01 | Air Control Valve | 1 |
|
7 |
029-2585-00 | Manifold Assembly | 1 |
|
8 |
029-3643-00 | Manifold Assembly with Barbed Fitting | 1 |
|
9 |
040-0010-109 | Screw #10-24 x 3/8” | 6 |
|
10 |
016-1279-02 | Inner Slide, RH Cabinet Member | 1 |
|
11 |
016-1279-01 | Inner Slide, LH Cabinet Member | 1 |
|
12 |
Refer to: | Air/Oil Separator Assembly | - |
|
13 |
12:00 Control Panel Options | ||
| 050-7857-00-216 | RH Mount | 1 | |
| 050-7889-00-216 | LH Mount | 1 | |
|
14 |
053-1915-00 | Hole Plug | AR |
|
15 |
040-0006-80 | Screw #6-32 x 1/2” | 2 |
|
16 |
053-1165-00 | Fluted Control Knob | AR |
|
17 |
029-3411-00 | Water Control Valve | AR |
|
18 |
002-1880-00 | Kink Valve Assembly | AR |
|
19 |
Refer to: | Side Mount 12:00 / FTC | - |
|
20 |
053-1165-01 | Blue Fluted Control Knob | AR |
|
21 |
053-1455-00 | Dual Snap On PCB Standoff for Dr. Unit Only | 2 |
|
22 |
015-1776-00 | Chair Control Connector Board for Dr. Unit Only | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

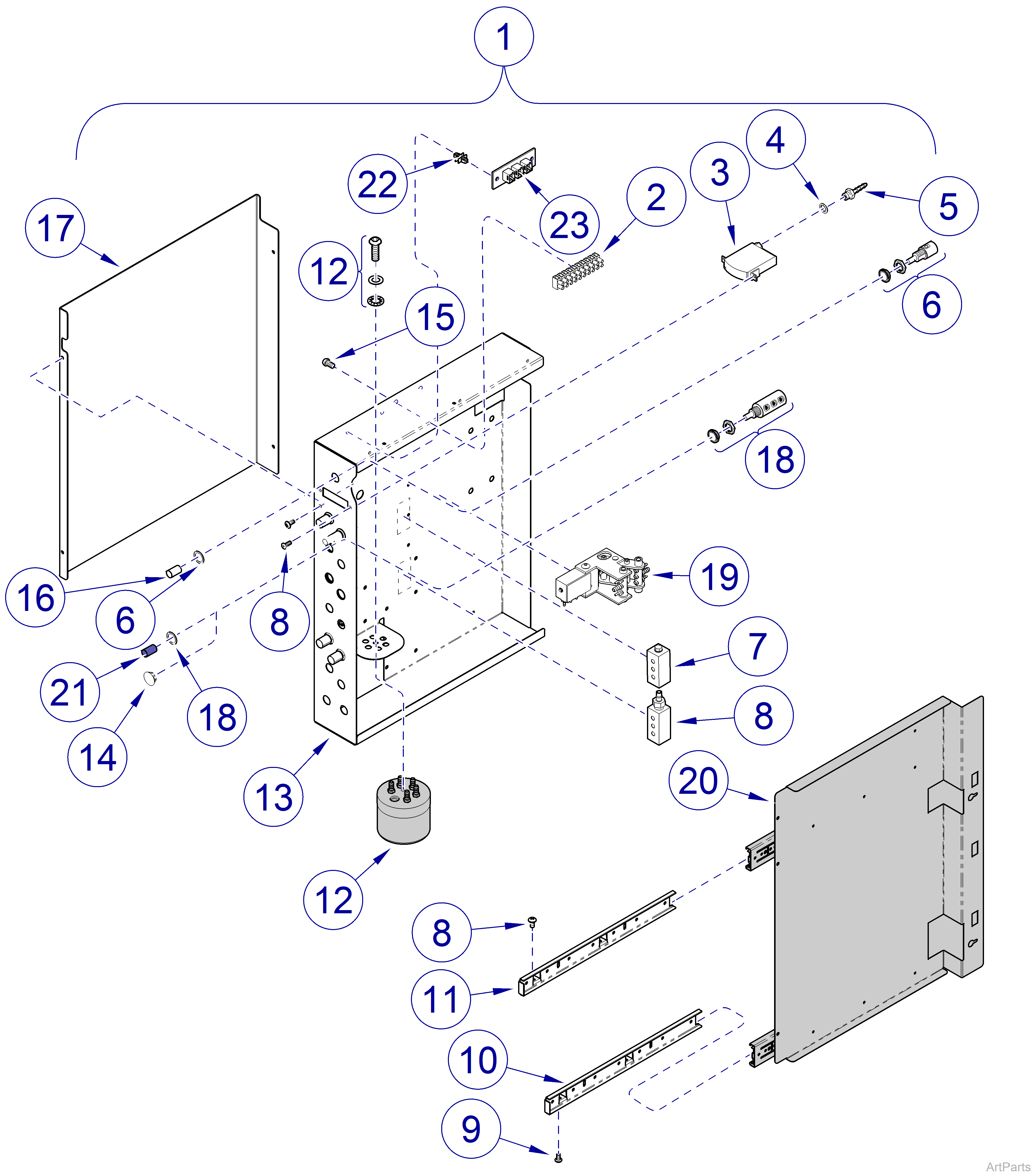

Serial Number Range: V1858144 thru Present
|
Model |
153659 |
| Serial Number | V1858144 thru Present |
| Procenter Control Panel for 12:00 and FTC | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Delivery System Control Options- includes items 2 thru 13 and 15 | ||
| 002-10437-01 | LH Mount | 1 | |
| 002-10437-00 | RH Mount - Shown | 1 | |
|
2 |
015-1457-00 | Terminal Block | 1 |
|
3 |
016-0839-01 | Pressure Gauge | 1 |
|
4 |
045-0001-130 | Hard Fiber Washer | 2 |
|
5 |
109714 | Barb Fitting | 1 |
|
6 |
029-2449-01 | Air Control Valve | 1 |
|
7 |
029-2585-00 | Manifold Assembly | 1 |
|
8 |
029-3643-00 | Manifold Assembly with Barbed Fitting | 1 |
|
9 |
040-0010-109 | Screw #10-24 x 3/8” | 10 |
|
10 |
016-1279-02 | Inner Slide, RH Cabinet Member | 1 |
|
11 |
016-1279-01 | Inner Slide, LH Cabinet Member | 1 |
|
12 |
Refer to: | Air/Oil Separator Assembly | - |
|
13 |
12:00 Control Panel Options | ||
| 050-7857-00-216 | RH Mount | 1 | |
| 050-7889-00-216 | LH Mount | 1 | |
|
14 |
053-1915-00 | Hole Plug | AR |
|
15 |
040-0006-80 | Screw #6-32 x 1/2” | 2 |
|
16 |
053-1165-00 | Fluted Control Knob | AR |
|
17 |
Control Unit Cover Options | ||
| 050-8181-00-216 | RH Side Cover | 1 | |
| 050-8181-01-216 | LH Side Cover - Shown | 1 | |
|
18 |
029-3411-00 | Water Control Valve | AR |
|
19 |
002-1880-00 | Kink Valve Assembly | AR |
|
20 |
Refer to: | Side Mount 12:00 / FTC | - |
|
21 |
053-1165-01 | Blue Fluted Control Knob | AR |
|
22 |
053-1455-00 | Dual Snap On PCB Standoff for Dr. Unit Only | 2 |
|
23 |
015-1776-00 | Chair Control Connector Board for Dr. Unit Only | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
