Procenter Control Box for Assistant's Only Duo Flex Units

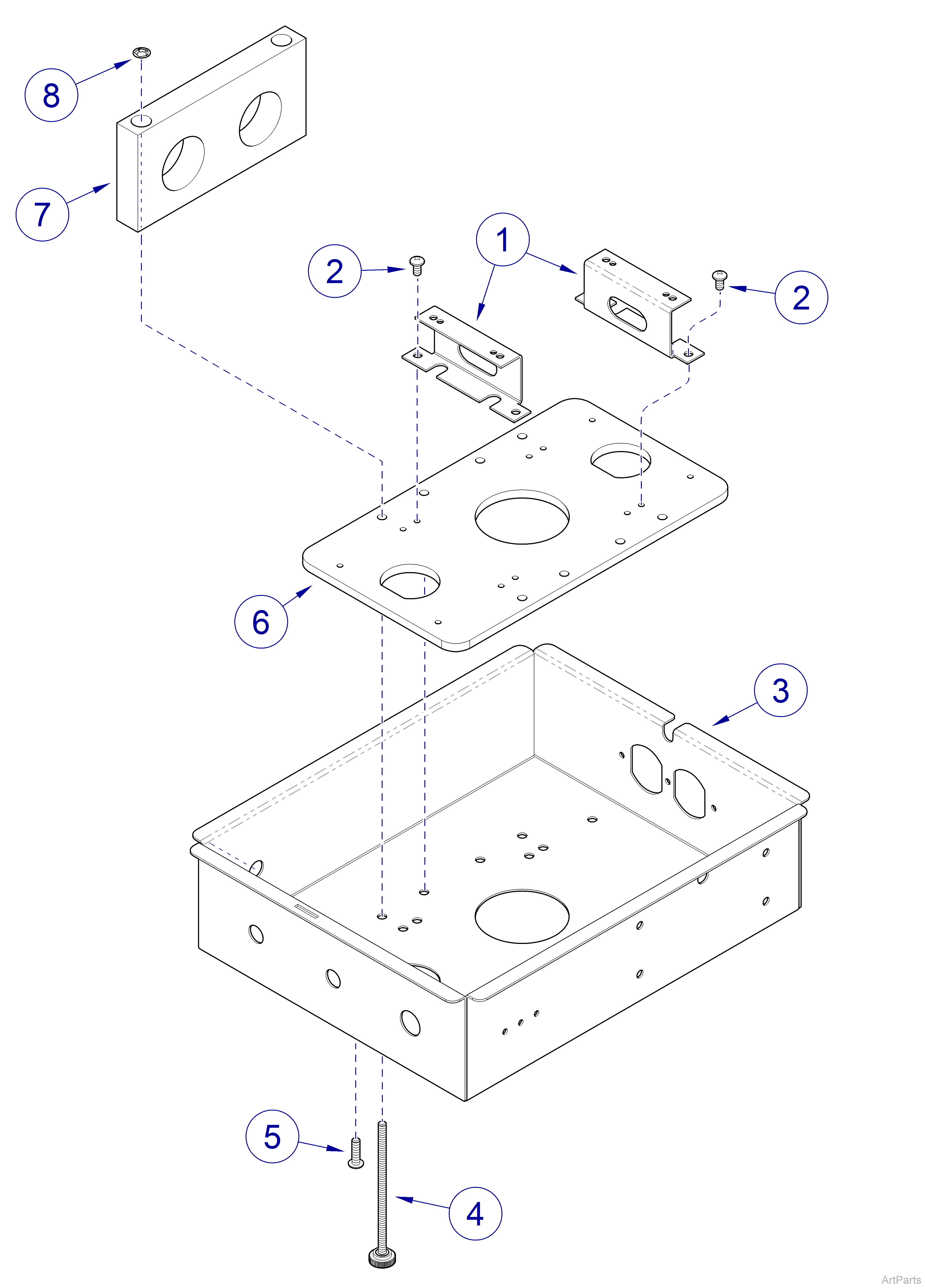

Housing Components for Duo Flex Units Assistant's Only Control Box
|
Model |
153706 |
| Serial Number | All |
| Procenter Housing Components for Duo Flex Units Assistant's Only Control Box | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
050-5947-50 | Bracket | 2 |
|
2 |
040-0010-11 | Screw #10-24 x 3/8” | 8 |
|
3 |
030-1503-50 | Control Box Weldment | 1 |
|
4 |
040-0010-160 |
Thumbscrew Knob | NLA |
|
5 |
040-0010-11 | Screw #10-24 x 3/4” | 8 |
|
6 |
050-5898-50 |
Leveling Plate | NLA |
|
7 |
051-1049-50 | Work Surface Mount Bracket | 2 |
|
8 |
042-0201-01 | Push Retainer | 4 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

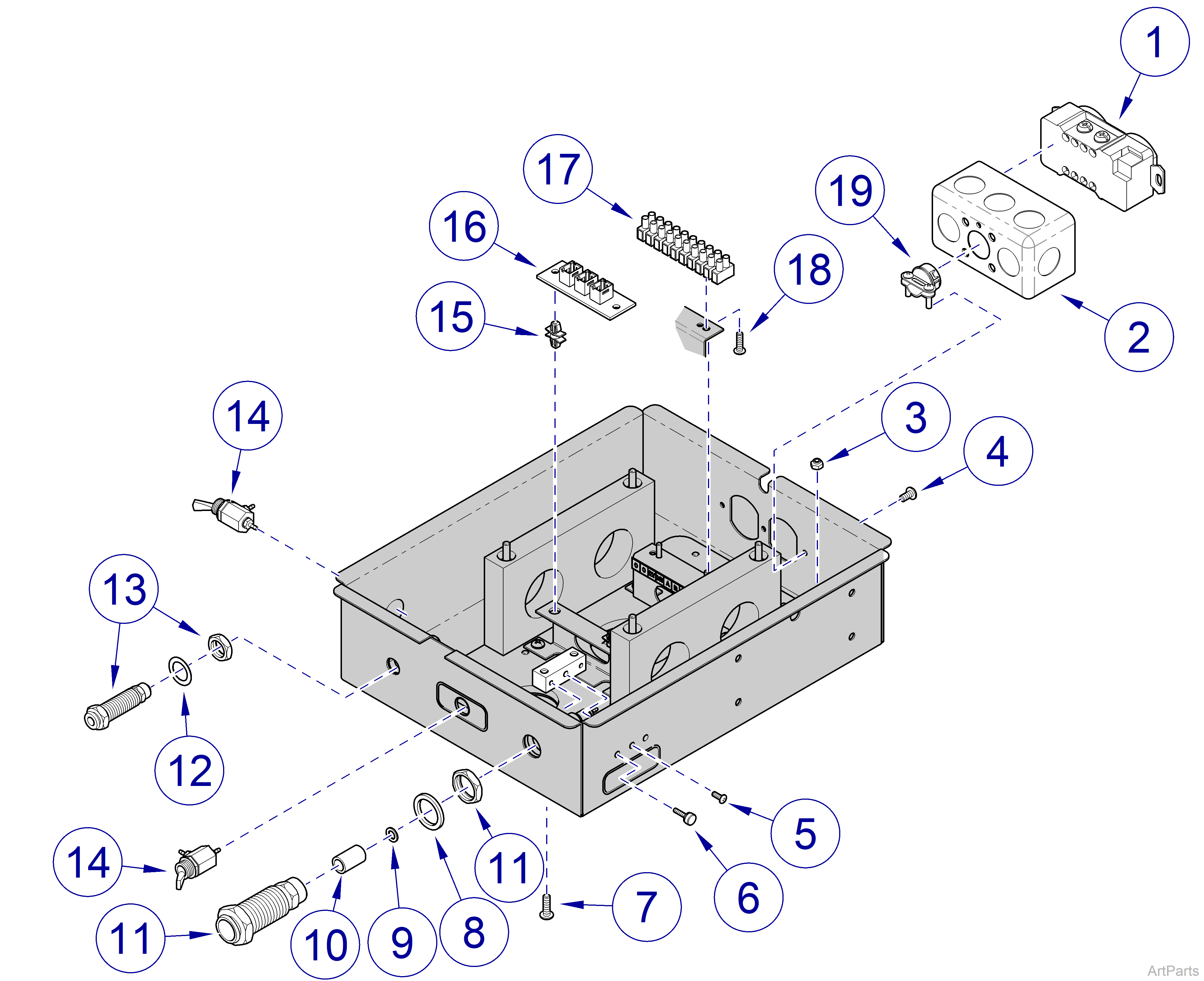

Electrical Components for Duo Flex Units Assistant's Only Control Box
|
Model |
153706 |
| Serial Number | All |
| Procenter Electrical Components for Duo Flex Units Assistant's Only Control Box | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
015-0083-01 | Duplex Receptacle | 1 |
|
2 |
102958 | Electrical Box | 1 |
|
3 |
122357 | Lock Nut #10-32 | 1 |
|
4 |
121698-5 | Screw #6-32 x 3/8” | 3 |
|
5 |
040-0006-98 | Screw | 1 |
|
6 |
149680 | Adjustment Screw | 2 |
|
7 |
040-0010-159 | Screw #10-24 x 5/8” | 4 |
|
8 |
122181 | Washer | 1 |
|
9 |
117660 | Gasket | 1 |
|
10 |
121108 | Kwik Connect Adapter | 1 |
|
11 |
121107 | Coupler w/ shutoff | 1 |
|
12 |
121807 | Washer | 1 |
|
13 |
137258 | Coupling | 2 |
|
14 |
120169 | 3-way Toggle Valve | 2 |
|
15 |
053-1455-00 | Standoff | 2 |
|
16 |
015-1776-00 | Chair Control Connector Board | 1 |
|
17 |
015-1457-00 | Terminal Block | 1 |
|
18 |
040-0006-80 | Screw #6-32 x 1/2” | 2 |
|
19 |
015-2104-00 | Connector | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
