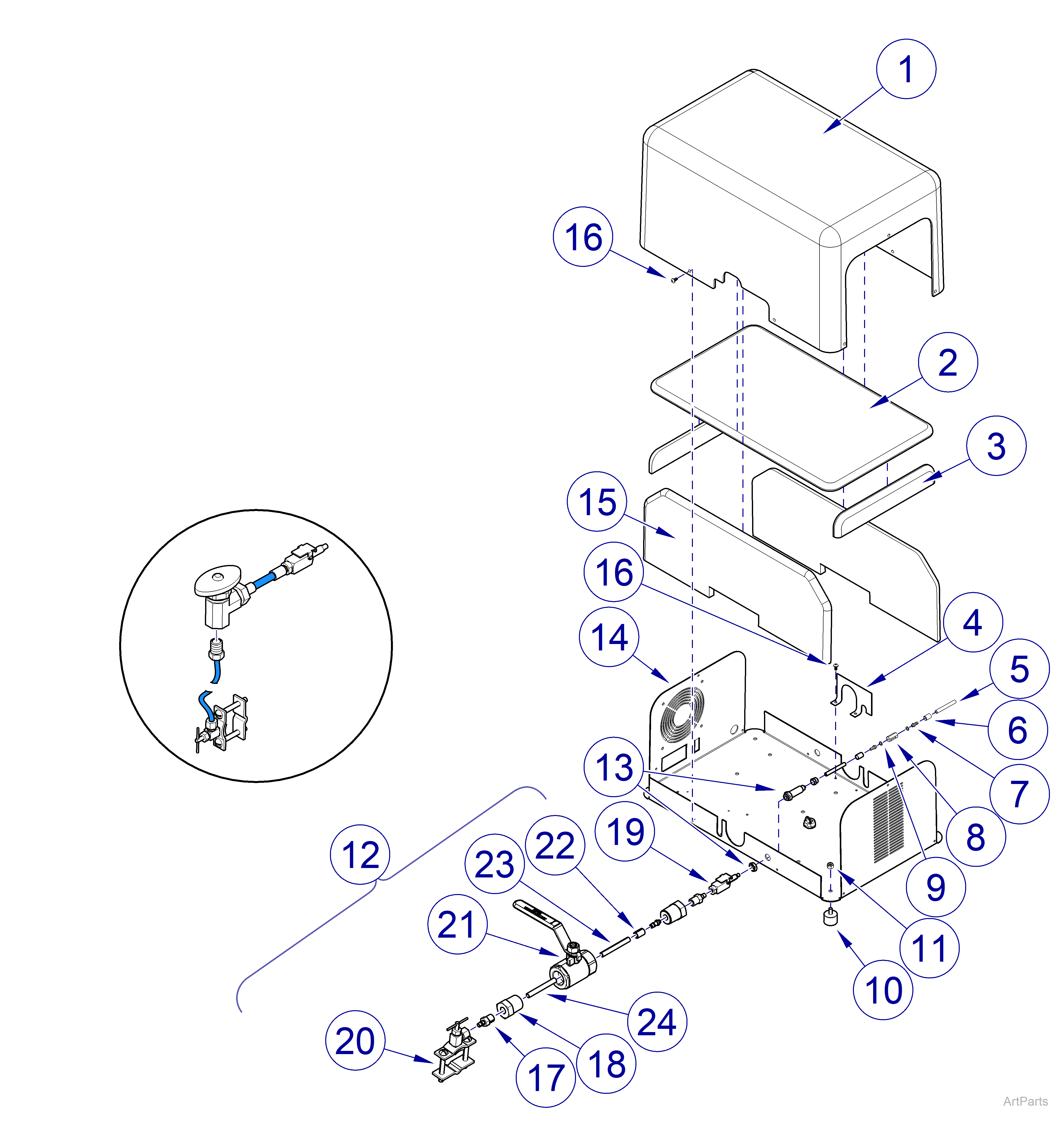

VetPro® Solo Sound Cover and Water Connection Assemblies
|
Model |
VetPro® Solo | 8006-001 |
| Serial Number | 0905SOL0001 thru 0910SOL0015 | V759502 thru Present |
| VetPro® Solo Sound Cover and Water Connection Assemblies | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
053-2083-00-216 | Power Unit Cover | 1 |
|
2 |
054-0581-00 | Sound Dampening w/ Adhesive Back Foam | 1 |
|
3 |
054-0583-00 | Sound Dampening w/ Adhesive Back Foam | 2 |
|
4 |
050-7743-00-341 | Umbilical Clamp | 2 |
|
5 |
Tubing and Fittings | NLA | |
|
6 |
Tubing and Fittings | NLA | |
|
7 |
Tubing and Fittings | NLA | |
|
8 |
016-1243-00 | Water Check Valve | 2 |
|
9 |
Tubing and Fittings | NLA | |
|
10 |
77007026 | Sandwich Mount | 4 |
|
11 |
62400706 | Lock Nut 1/4-20 | 4 |
|
12 |
029-4884-00 | Power Unit Water Supply - Includes items 17 thru 24 | 1 |
|
13 |
137258 | FEM OD Coupling | 2 |
|
14 |
050-7742-00 | Base Power Unit | 1 |
|
15 |
054-0582-00 | Sound Dampening w/ Adhesive Back Foam | 2 |
|
16 |
040-0010-109 | Screw 10-24 x 3/8” | 10 |
|
17 |
014-0553-00 | Barbed Fitting 3/16 X 1/8 NPT | 2 |
|
18 |
014-0672-00 | Brass Bushing 1/2 X 1/8 | 2 |
|
19 |
016-1249-00 | Quick Connect w/ auto shut off | 1 |
|
20 |
016-1252-00 | Self-piercing Saddle Valve | 1 |
|
21 |
10378600 | Ball Valve 1/2 NPT | 1 |
|
22 |
10591900 | 10-32 Male Thread to tube | 1 |
|
23 |
117480 | Sleeve Clamp | 3 |
|
24 |
177524 | Blue Tubing 1/4 OD X 0.159 ID | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
