VetPro® Solo Electrical Components
|
Model |
VetPro® Solo | 8006-001 |
| Serial Number | 0905SOL0001 thru 0910SOL0015 | V759502 thru Present |
Older units have a thermostat without mounting bracket. The new kit, Item 8, has a bracket so the new thermostat fits on older units.

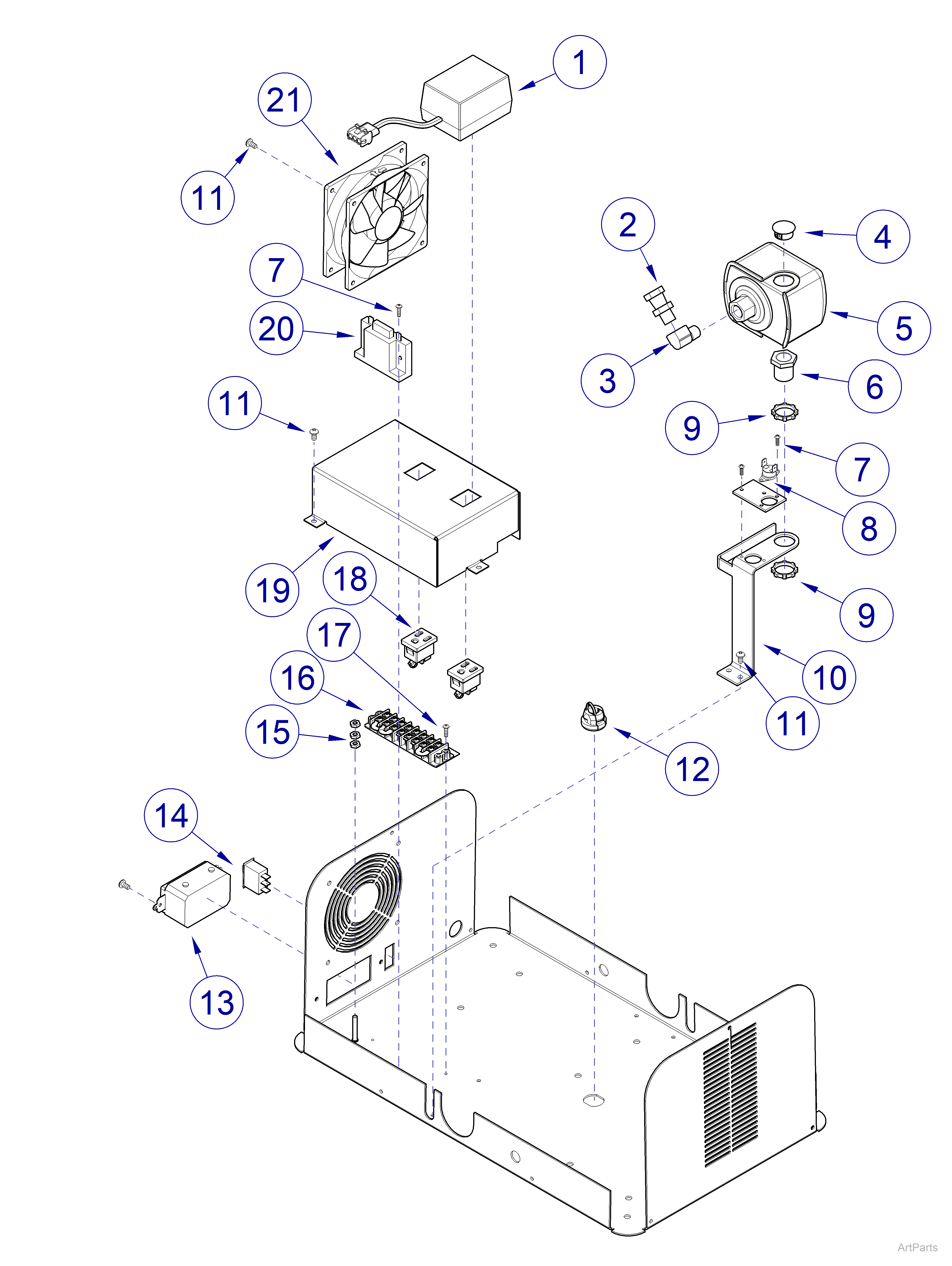

| VetPro® Solo Electrical Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
20232300 | Power Supply | 1 |
|
2 |
20224306 | Adapter | 1 |
|
3 |
62900712 | Street Elbow 1/4” NPT W/SEAL | 1 |
|
4 |
77001090 | Hole Plug | 1 |
|
5 |
77005143 | Pressure Switch | 1 |
|
6 |
77001095 | Conduit Nipple 1/2” X 1” LG | 1 |
|
7 |
040-0006-99 | Screw 6-32 X 1/2 | 4 |
|
8 |
015-2991-00 | Thermostat Replacement Kit - Includes item 7 and Bracket | 4 |
|
9 |
77001094 | Conduit Locknut 1/2” | 2 |
|
10 |
050-7740-00-216 | Pressure Switch Bracket | 1 |
|
11 |
040-0010-109 | Screw 10-24 X 3/8” | 9 |
|
12 |
62885204 | Strain Relief | 1 |
|
13 |
10572000 | GFIC Receptacle | 1 |
|
14 |
10572200 | Circuit Breaker Switch | 1 |
|
15 |
BNT20210 | Keps Lock Nut 10-32 | 3 |
|
16 |
Terminal Strip | 1 | |
|
17 |
040-0006-99 | Screw 6-32 x 1/2” | 2 |
|
18 |
015-3386-00 | Snap-In Receptacle | 2 |
|
19 |
050-7739-00-216 | Power Unit Electrical Enclosure | 1 |
|
20 |
10597500 |
Timer | NLA |
|
21 |
Fan | 1 | |
|
22 |
77001176 | Jumper on Terminal Strip - Not Shown | 3 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
