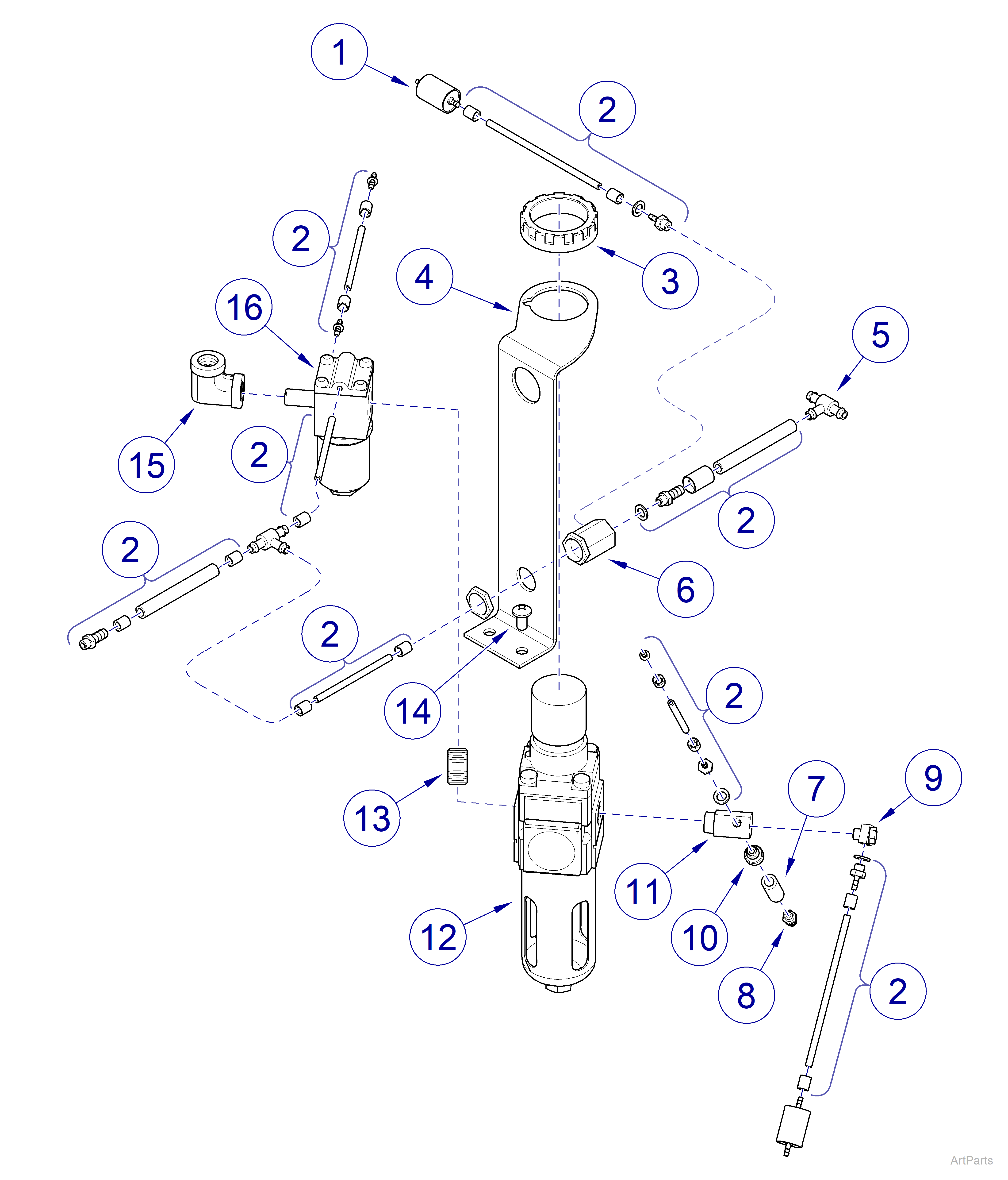

VetPro® Solo Air Regulator System
Serial Number Range: 0905SOL0001 thru 0910SOL0015 and
V759502 thru V784999
|
Model |
VetPro® Solo | 8006-001 |
| Serial Number | 0905SOL0001 thru 0910SOL0015 | V759502 thru V784999 |
| VetPro® Solo Air Regulator System | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
122743 | 3-Way Tee | 1 |
|
2 |
002-1660-00 | Water Regulator Kit - Includes uniclamps | 2 |
|
3 |
Tubing and Fittings | NLA | |
|
4 |
016-1242-00 | Pilot Valve | 1 |
|
5 |
014-0542-01 | Barb Fitting 3/16” to 3/16” | 1 |
|
6 |
S059-00155 | Tubing 0.312 OD x 0.188 ID | 1 |
|
7 |
10591900 | Male Thread to Tube 10-32 | 1 |
|
8 |
117352 | Fitting | 1 |
|
9 |
10589200 | Shut-off Assembly Regulator | 1 |
|
10 |
77002047 | Closed Nipple | 1 |
|
11 |
040-0010-109 | Screw 10-24 X 3/8” | 2 |
|
12 |
62906101 | 90 Elbow FEM X FEM 1/8NPT | 1 |
|
13 |
20230900 | Master Pilot Shut-off | 1 |
|
14 |
050-7741-00-216 | Regulator Bracket | 1 |
|
15 |
014-0659-00 | Mounting Nut - Regulator | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

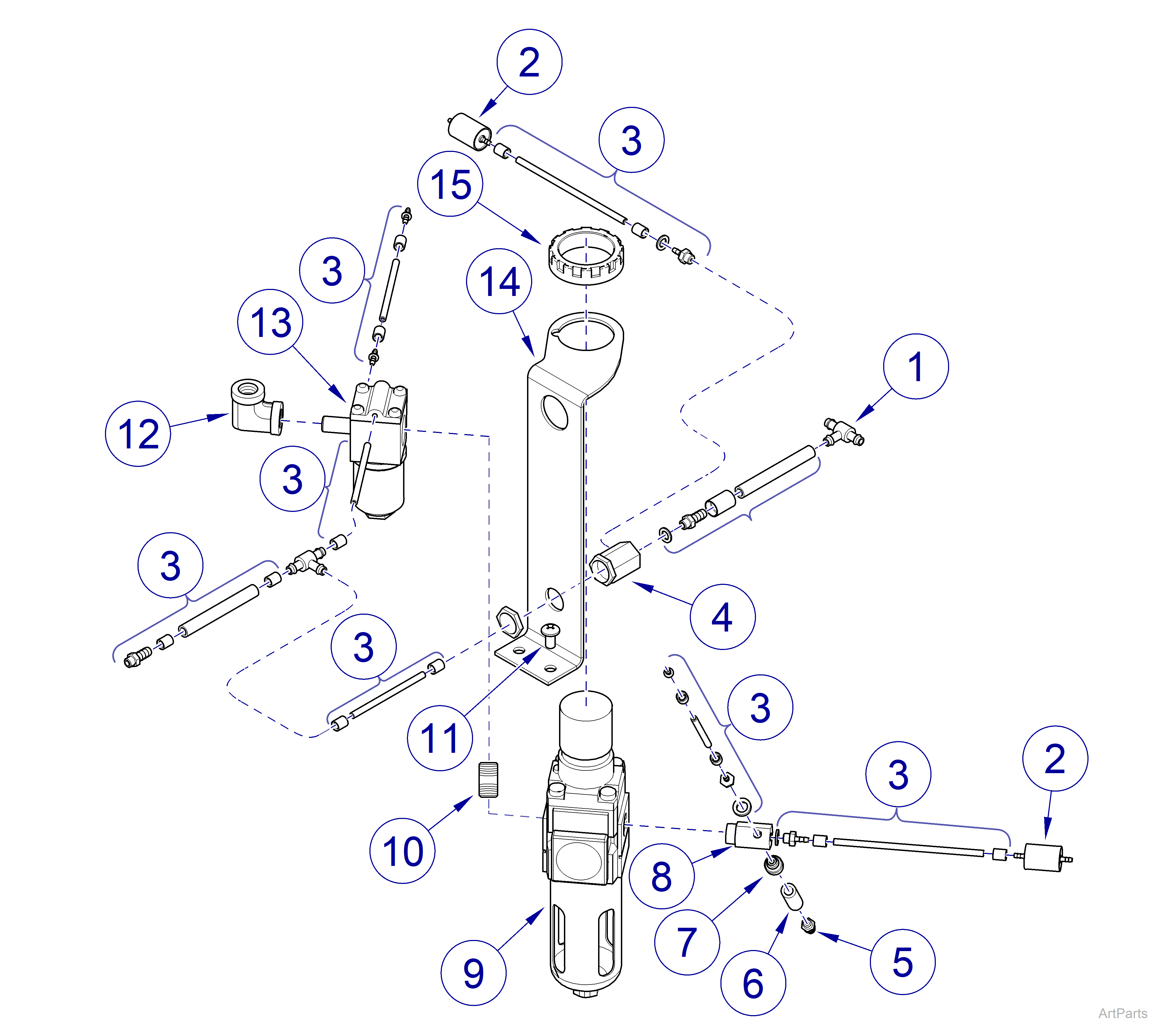

Serial Number Range: V785000 thru Present
|
Model |
8006-001 |
| Serial Number | V785000 thru Present |
| VetPro® Solo Air Regulator System | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1660-00 | Water Regulator Kit - Includes uniclamps | 2 |
|
2 |
Tubing and Fittings | NLA | |
|
3 |
014-0659-00 | Mounting Nut - Regulator | 1 |
|
4 |
050-7741-00-216 | Regulator Bracket | 1 |
|
5 |
122743 | 3-Way Tee | 1 |
|
6 |
016-1242-00 | Pilot Valve | 1 |
|
7 |
S059-00155 | Tubing 0.312 OD x 0.188 ID | 1 |
|
8 |
014-0542-01 | Barb Fitting 3/16” to 3/16” | 1 |
|
9 |
016-0888-00 | 90° Swivel Fitting 10-32 | 1 |
|
10 |
10591900 | Fitting 10-32 X 3/16” Barb | 1 |
|
11 |
117352 | Fitting | 1 |
|
12 |
10589200 | Air Regulator Assembly | 1 |
|
13 |
77002047 | Closed Nipple | 1 |
|
14 |
040-0010-109 | Screw 10-24 X 3/8” | 2 |
|
15 |
62906101 | 90° Elbow FEM X FEM 1/8 NPT | 1 |
|
16 |
20230900 | Master Pilot Shut-off | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
