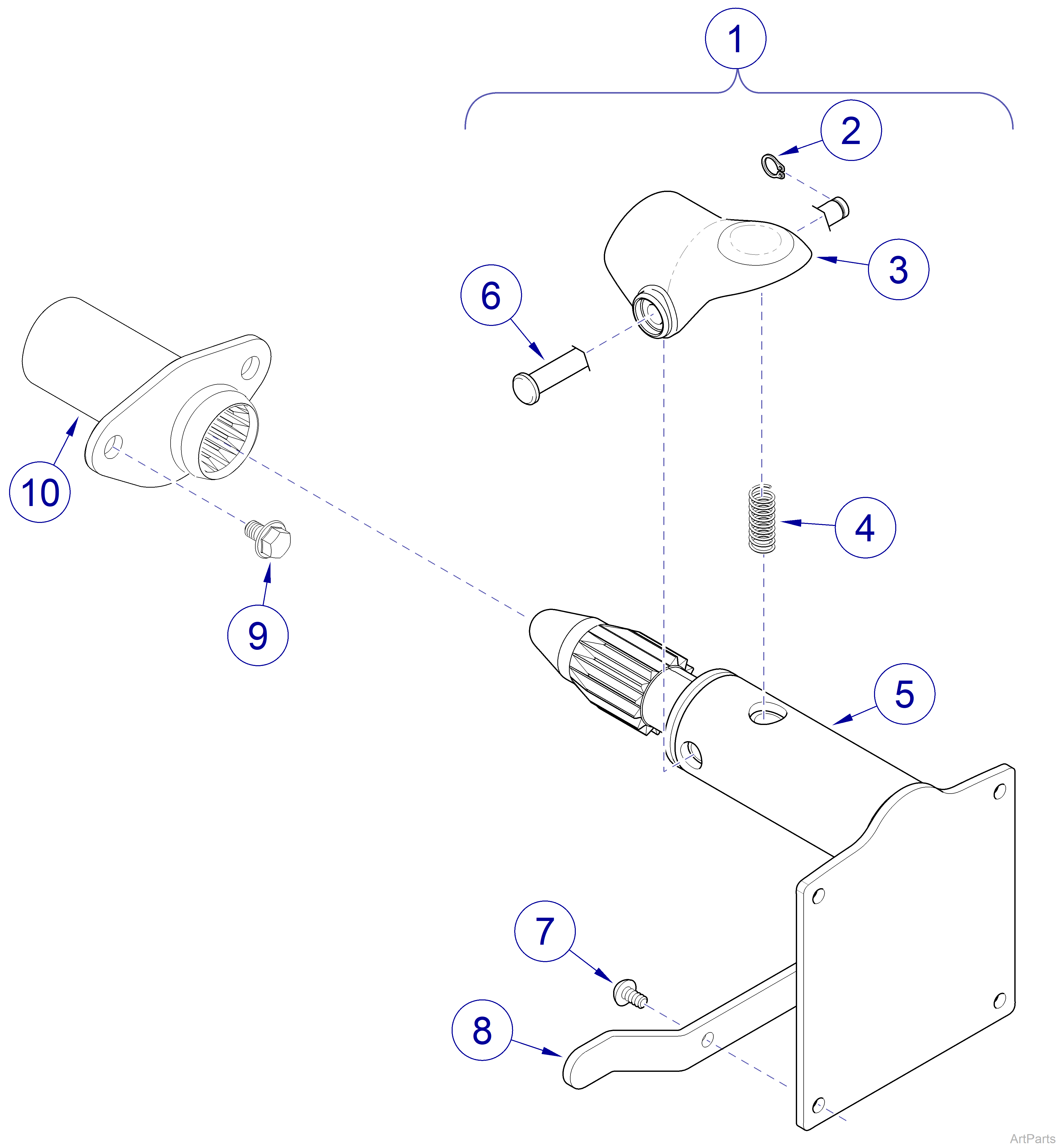

253 Light Extended Spline Mount System 9A455
|
Model |
9A455001 |
| Serial Number | All |
| 253 Light Extended Spline Mount System 9A455 | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-5162-01 | Extended Spline Assembly - Includes items 2 thru 6 | 1 |
|
2 |
042-0056-05 | Clip Ring | 1 |
|
3 |
053-1339-00 | Retainer Clip | 1 |
|
4 |
025-0042-11 | Compression Spring | 1 |
|
5 |
030-1900-01-216 | Extended Spline Mount Weldment | 1 |
|
6 |
042-0606-00 | Clevis Pin | 1 |
|
7 |
042-0112-08 | Screw M4 x .7 x 12 mm | 4 |
|
8 |
050-7979-00-216 | Cord Restraint | 1 |
|
9 |
040-0312-79 | Screw 5/16-18 x 3/4” | 2 |
|
10 |
030-1561-02 | Socket Weldment | 1 |
|
11 |
9A455001 | Extended Spline Mount System - Includes items 1 thru 10 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
