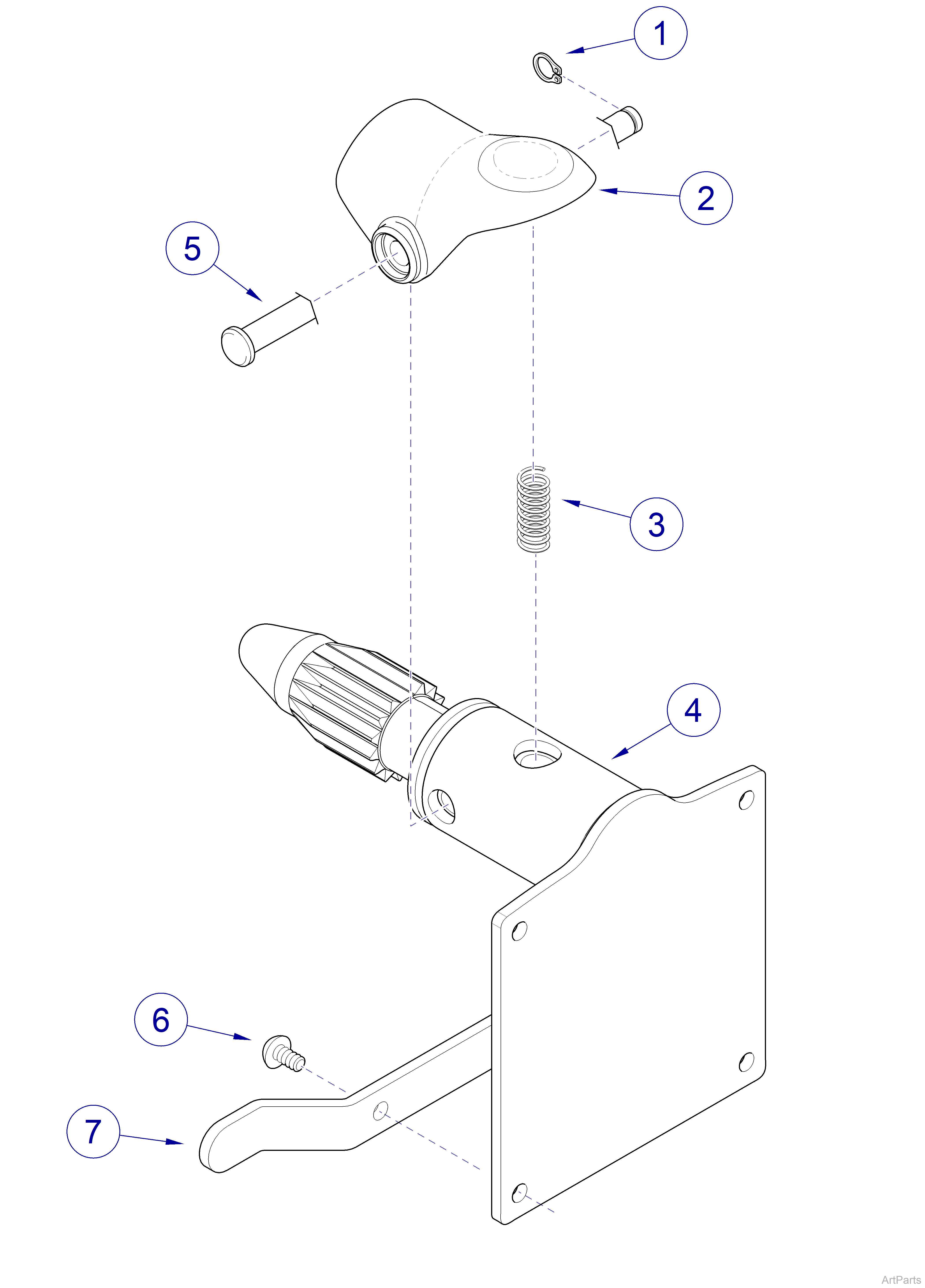

253 Light 28” Spline Mount Hardware 9A624
|
Model |
9A624001 |
| Serial Number | All |
| 253 Light 28” Spline Mount Hardware 9A624 | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
042-0056-05 | Clip Ring | 1 |
|
2 |
053-1339-00-813 | Retainer Clip | 1 |
|
3 |
025-0042-11 | Compression Spring | 1 |
|
4 |
030-1900-00-813 | Spline Mount Weldment | 1 |
|
5 |
042-0606-00 | Clevis Pin | 1 |
|
6 |
042-0112-08 | Screw M4 x .7 x 12 mm | 4 |
|
7 |
050-7979-00-813 | Cord Restraint | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
