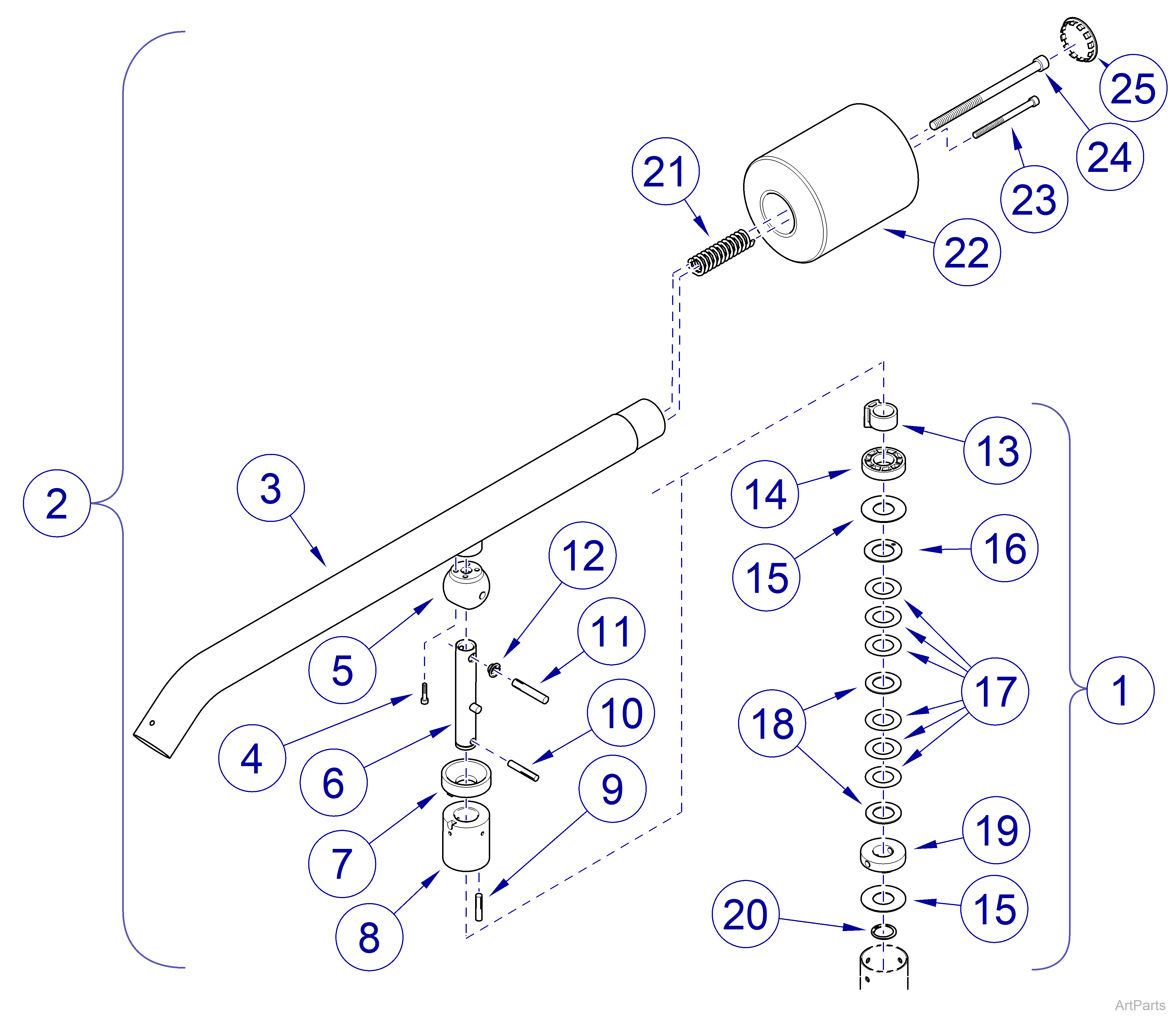

255 LED Mobile Procedure Light Cross Tube Assembly and Ballast Components
|
Model |
255 -005, -007, -025, -027 |
| Serial Number | All |
| 255 LED Mobile Procedure Light Cross Tube Assembly and Ballast Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-10299-00 | Cross Tube Assembly - includes items 3 - 20 | 1 |
|
2 |
Cross Tube Kit Options | ||
| Ritter for 255-005 and -007 - Includes Items 3 - 25 | 1 | ||
| Midmark for 255-025 and -027 - Includes Items 3 - 25 | 1 | ||
|
3 |
Cross Tube Weldment | NSS | |
|
4 |
040-0008-30 | Screw 8-32 x 3/4” - apply thread locking adhesive #042-0646-00 - Torque: 24 in-lbs (2.7 N•M) | 4 |
|
5 |
057-1447-00 | Ball Pivot | 1 |
|
6 |
030-1074-00 | Ball Pivot Shaft Weldment | 1 |
|
7 |
053-0798-00 | Ball Pivot Brake | 1 |
|
8 |
057-0766-00 | Ball Pivot Housing | 1 |
|
9 |
042-0157-00 | Groove Pin | 1 |
|
10 |
042-0157-01 | Groove Pin | 1 |
|
11 |
042-0157-03 | Groove Pin | 1 |
|
12 |
016-1570-03 | DU Flange Bearing | 2 |
|
13 |
002-0562-00 | Ball Pivot Stop Kit - Includes Replacement Items 11 and 12 | 1 |
|
14 |
053-0800-00 | Ball Pivot Bearing | 1 |
|
15 |
045-0001-111 | Washer | 2 |
|
16 |
016-1662-00 | DP4 Thrust Washer | 1 |
|
17 |
045-0001-110 | Wave Washer | 6 |
|
18 |
045-0001-112 | Washer | 2 |
|
19 |
057-0414-00 | Ball Pivot Cam | 1 |
|
20 |
042-0101-05 | Retaining Ring | 1 |
|
21 |
025-0042-21 | Compression Spring | 1 |
|
22 |
Ballast Kit Options | ||
| Ritter for 255-005 and -007 - Includes Item 25 | 1 | ||
| MIdmark for 255-025 and -027 - Includes Item 25 | 1 | ||
|
23 |
040-0250-192 | Screw 1/4”-20 x 3-1/4” | 1 |
|
24 |
040-0375-91 | Screw 3/8”-16 x 6” | 1 |
|
25 |
016-1615-00 | Hole Plug | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
