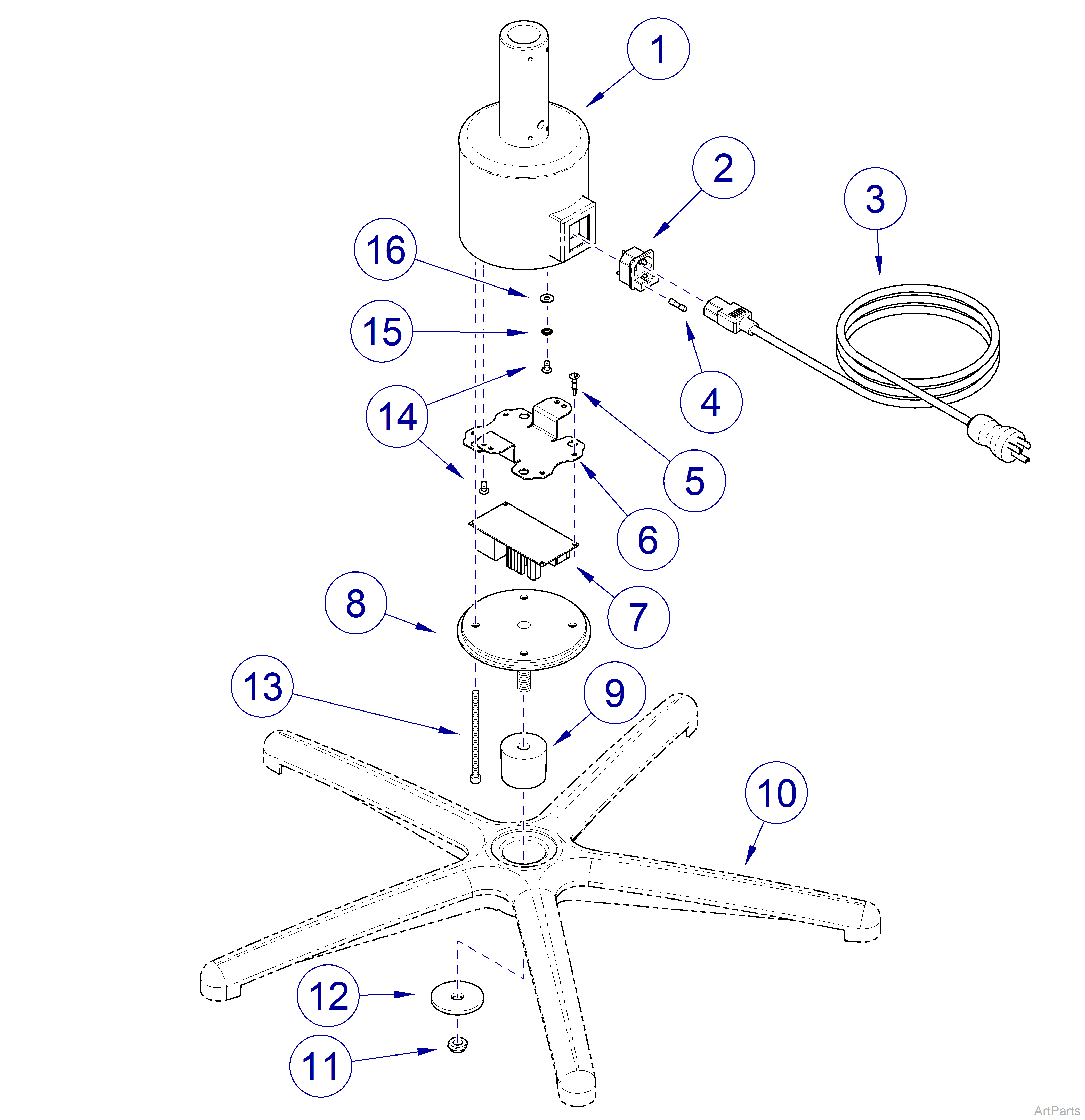

255 LED Mobile Procedure Light Power Supply / Housing
|
Model |
255 -005, -007, -025, -027 |
| Serial Number | All |
002-2026-00 mounting hardware kit for base casting includes Items 9, 11 and 12. If light was made on January 12, 2016 or before, then order Item 8 in addition to the 002-2026-00 kit.
| 255 LED Mobile Procedure Light Power Supply / Housing | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
030-1239-00 | Top Plate Weldment | 1 |
|
2 |
015-1362-00 | AC Inlet | 1 |
|
3 |
015-1338-01 | Cordset | 1 |
|
4 |
015-0346-56 | Fuse 1.6A, 250V, Slo-Blo | 2 |
|
5 |
053-2311-00 | PC Board Standoff | 4 |
|
6 |
050-9407-00 | Power Supply Bracket | 1 |
|
7 |
002-1890-00 | Power Supply | 1 |
|
8 |
030-1087-00 | Bottom Plate Weldment | 1 |
|
9 |
053-2663-01 | Base Insert | 1 |
|
10 |
Refer to: | Base / Vertical Tube | - |
|
11 |
041-0500-02 | Lock Nut 1/2” - 20 | 1 |
|
12 |
050-3829-01-312 | Spacer Disk | 1 |
|
13 |
040-0250-147 | Screw 1/4” - 20 x 4” | 4 |
|
14 |
040-0010-45 |
Screw 10-24 x 3/8” | NLA |
|
15 |
045-0001-31 | Lock Washer #10 | 1 |
|
16 |
045-0001-00 | Washer #10 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
