255 LED Procedure Light Cross Tube / Bearing Assembly
|
Model |
255 -001 to -004, -006 and -021 to -024 |
| Serial Number | All |
|

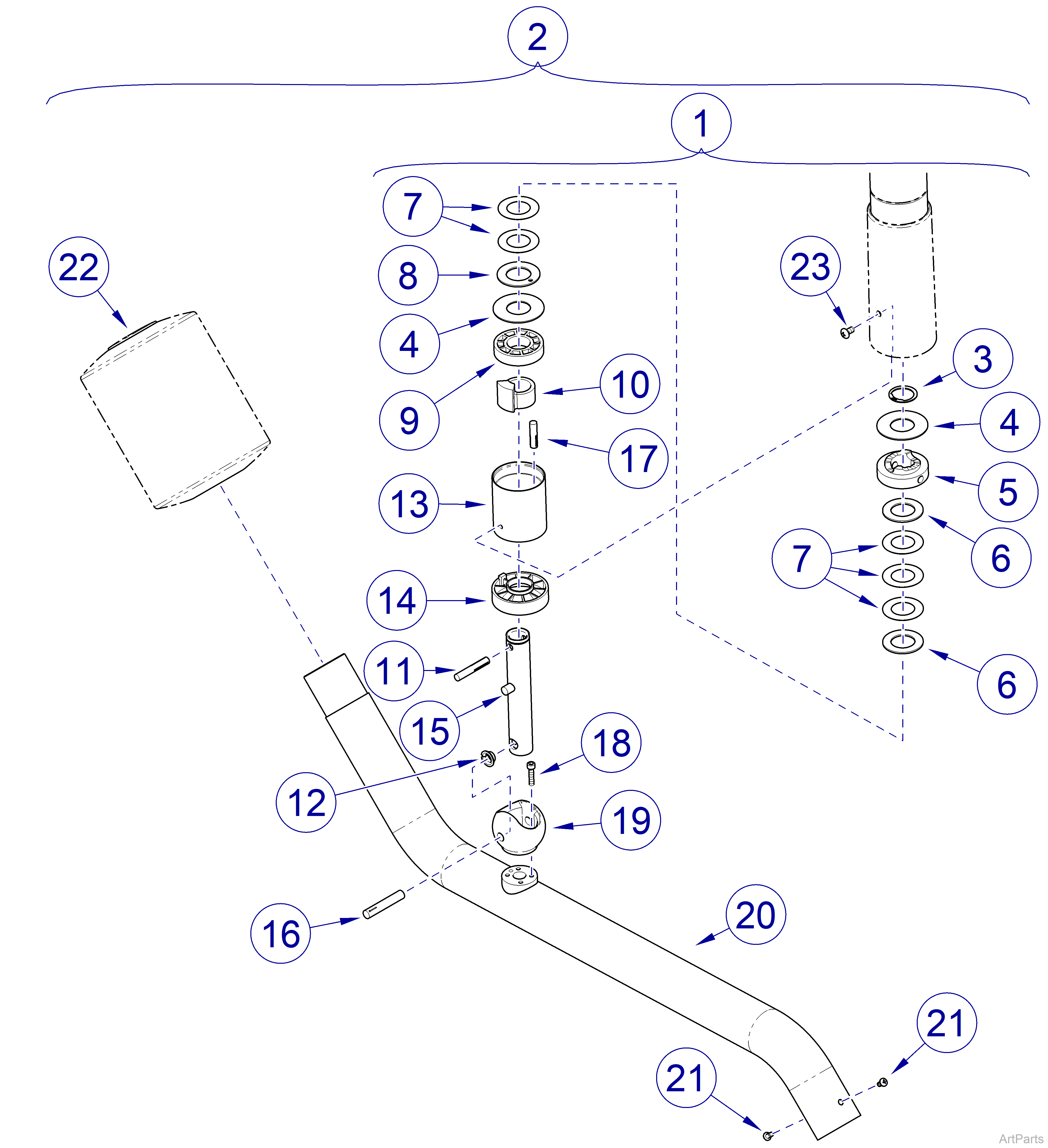

255 LED Procedure Light Cross Tube / Bearing Assembly |
|||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-10086-00 | Cross Tube / Bearing Assembly - includes items 3 - 20 | 1 |
|
2 |
Cross Tube Kit Options | ||
| Ritter for 255-001 to -004 - Includes Items 3 - 22 | 1 | ||
| Midmark for 255-021 and -024 - Includes Items 3 - 22 | 1 | ||
|
3 |
042-0101-05 | Retaining Ring | 1 |
|
4 |
045-0001-111 | Washer | 2 |
|
5 |
057-0414-00 | Ball Pivot Cam | 1 |
|
6 |
045-0001-112 | Wave Washer | 5 |
|
7 |
045-0001-110 | Washer | 3 |
|
8 |
016-1662-00 | DP Thrust Washer | 1 |
|
9 |
053-0800-00 | Ball Pivot Bearing | 1 |
|
10 |
053-0799-00 | Ball Pivot Stop Kit - includes items 11 and 12 | 1 |
|
11 |
042-0157-01 | Groove Pin | 1 |
|
12 |
016-1570-03 | DU Flange Bearing | 2 |
|
13 |
057-0766-00 | Ball Pivot Housing | 1 |
|
14 |
053-0798-00 | Ball Pivot Brake | 1 |
|
15 |
030-1074-00 | Ball Pivot Shaft Weldment | 1 |
|
16 |
042-0157-03 | Groove Pin - not reusable | 1 |
|
17 |
042-0157-00 | Groove Pin | 1 |
|
18 |
040-0008-30 | Screw - apply thread locking adhesive #042- 0646-00 - Torque: 24 in-lbs (2.7 N•M) | 4 |
|
19 |
057-1447-00 | Ball Pivot | 1 |
|
20 |
030-2192-00-337 | Cross Tube Weldment | 1 |
|
21 |
Screw | 2 | |
|
22 |
Refer to: | Ballast Components | - |
|
23 |
Screw 10 - 24 x 3/8” | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
