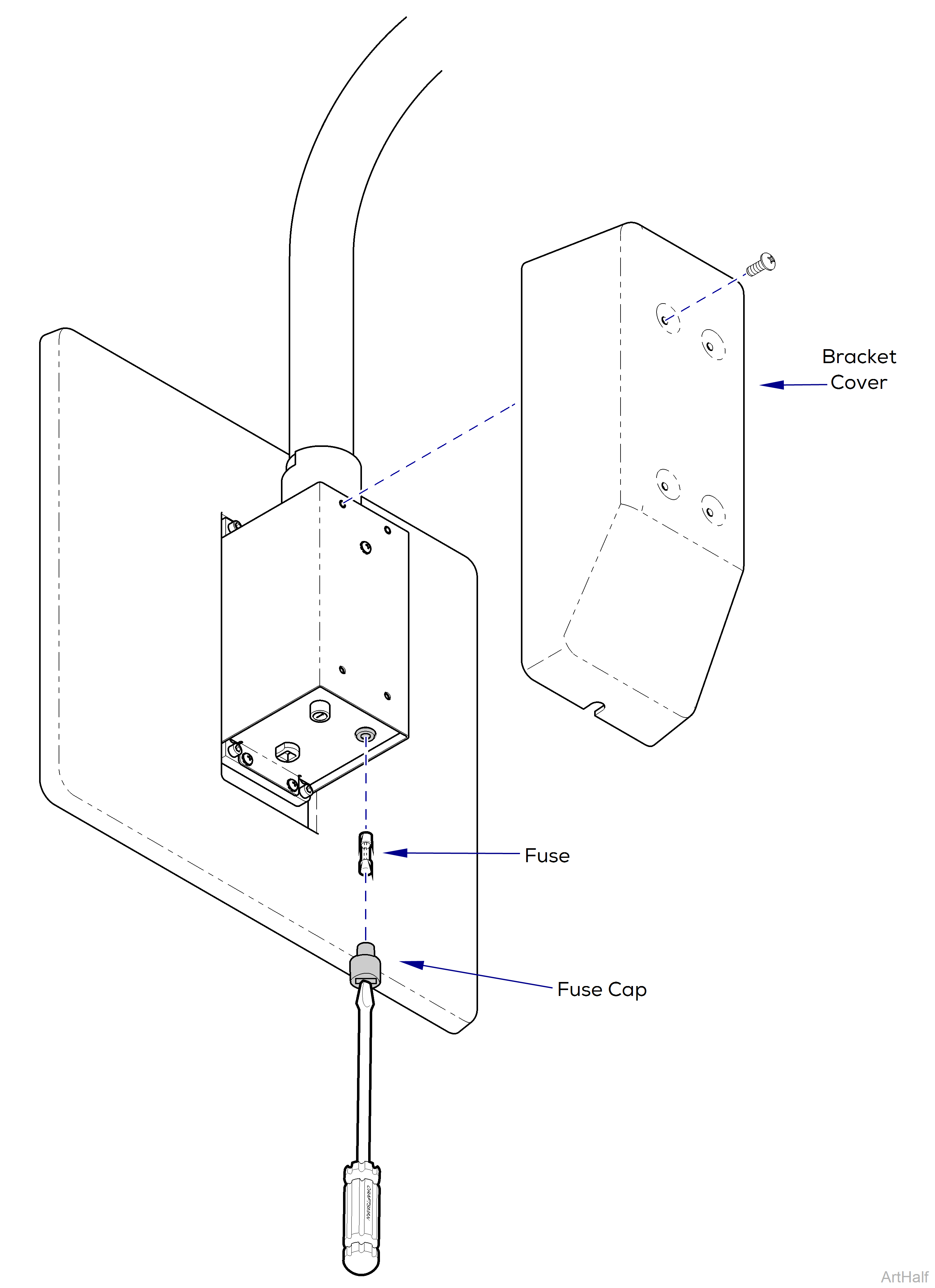

255 Light Replace the Fuse

Inspect the fuse to determine if it is faulty.

1.Turn light off.

2.Turn off facility power breaker so there is no power in customer supplied wiring.

3.Remove screws, then bracket cover.

4.Using a flat-bladed screwdriver, rotate fuse cap counter-clockwise 1/4 turn, while pushing upward.

5.Remove fuse from fuse cap and inspect.

6.Insert fuse into fuse cap.

7.Using a flat-bladed screwdriver, rotate fuse cap clockwise 1/4 turn, while pushing into fuse socket.

8.Install bracket cover.

9.Connect power and verify operation.
