354 Light Replacing A Bulb Test and Repair
The maximum bulb wattage for this light is 150 Watts. There is a risk of fire if this limit is exceeded. Use Midmark part number 002-0605-00.
•To prevent electrical shock, the light must be in STANDBY mode.
•Allow the light to cool before removing bulb.
•Move the lighthead away from the exam site to prevent contaminants from falling into the area.
Halogen bulbs are sensitive to body oils. Do not touch the front glass portion of the bulb. If the glass portion of the bulb is handled, wipe with a clean soft lint-free cloth. Wipe with alcohol, then pat dry.

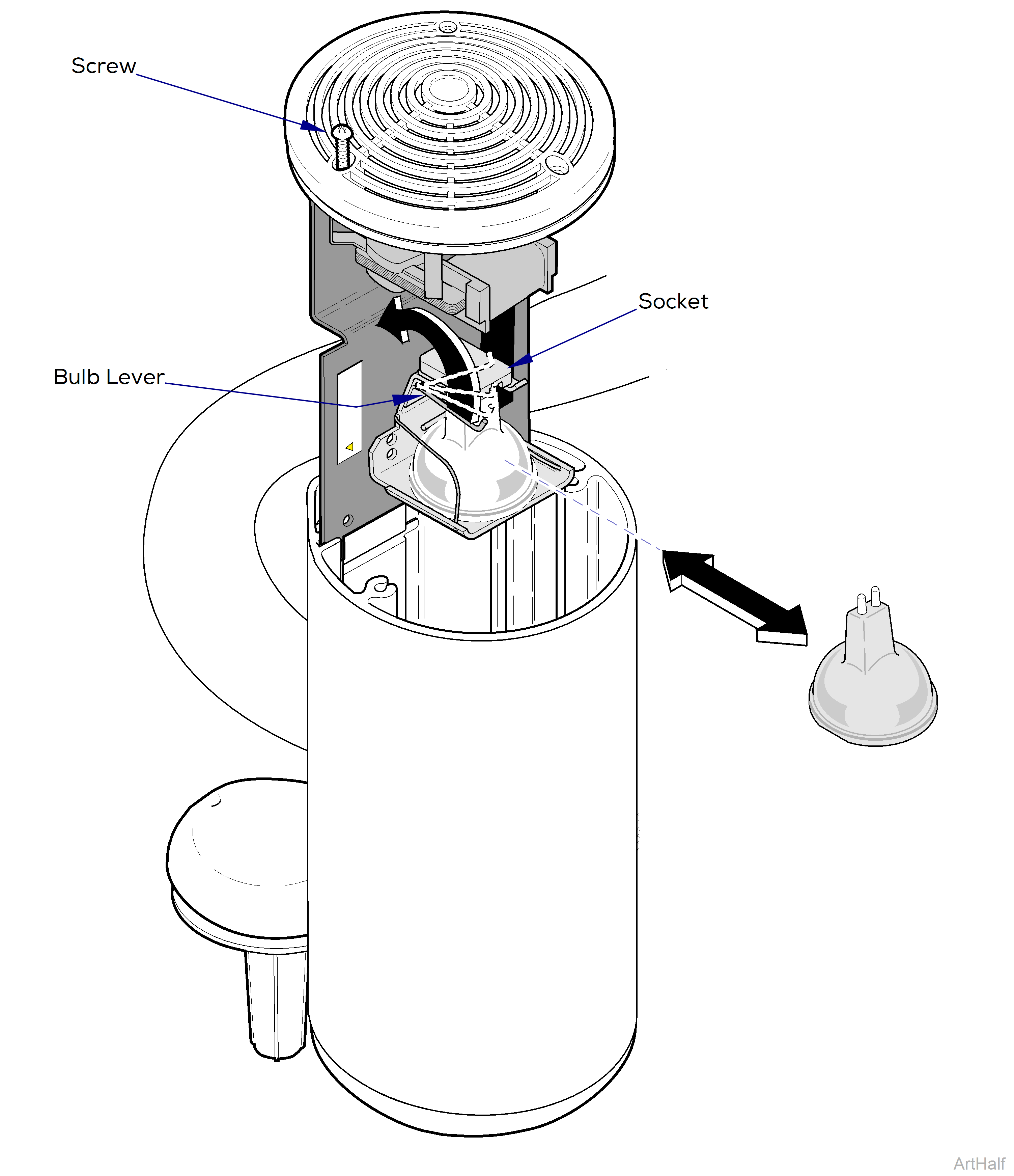

To Remove Old Bulb
1.Turn light switch to STANDBY.
2.Loosen one phillips screw on top of lighthead. Do not attempt to remove this screw.
3.Slide bulb carriage out of housing.
4.Lift the bulb lever upward, then remove bulb.
To Install New Bulb
1.Push the bulb lever down.
2.Align two prongs on bulb with slots in socket, then push bulb inward until it is secure.
3.Slide the bulb carriage into housing.
4.Tighten phillips screw.
