354 Light Lighthead Brake Adjustments
WARNING
Screws securing lamp tube / lighthead must installed properly. Failure to do so may allow lighthead to fall, resulting in injury.

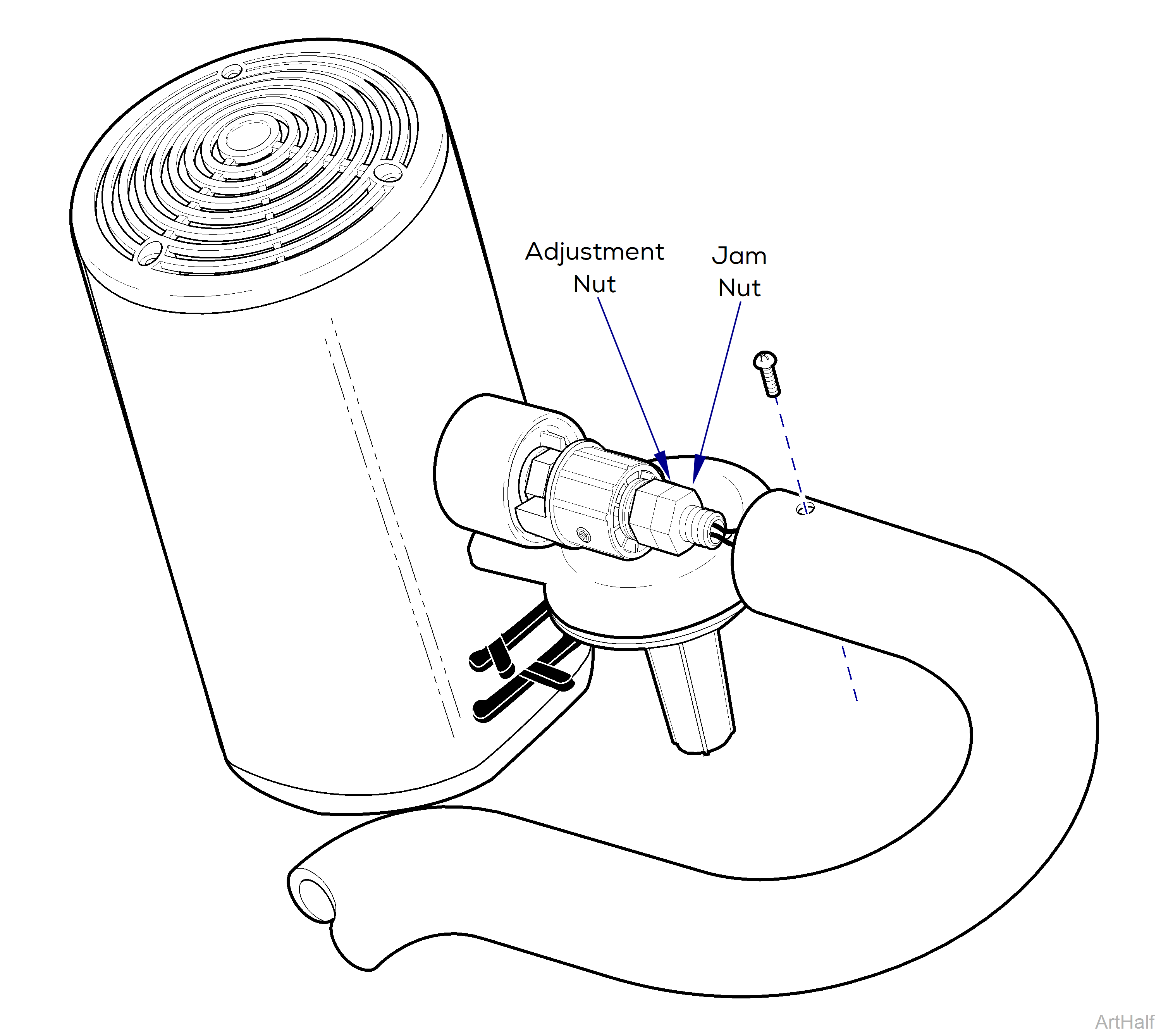

To Adjust Lighthead Brake Tension
1.Remove two screws.
2.Separate lamp tube from lighthead.
3.Loosen jam nut.
4.Loosen / tighten adjustment nut as necessary.
5.Hold adjustment nut in place, then tighten jam nut 20-30 ft-lbs (27-40.7 N•m).
6.Reattach lamp tube / lighthead, secure with two screws.
7.Check for proper operation. Repeat if necessary.
