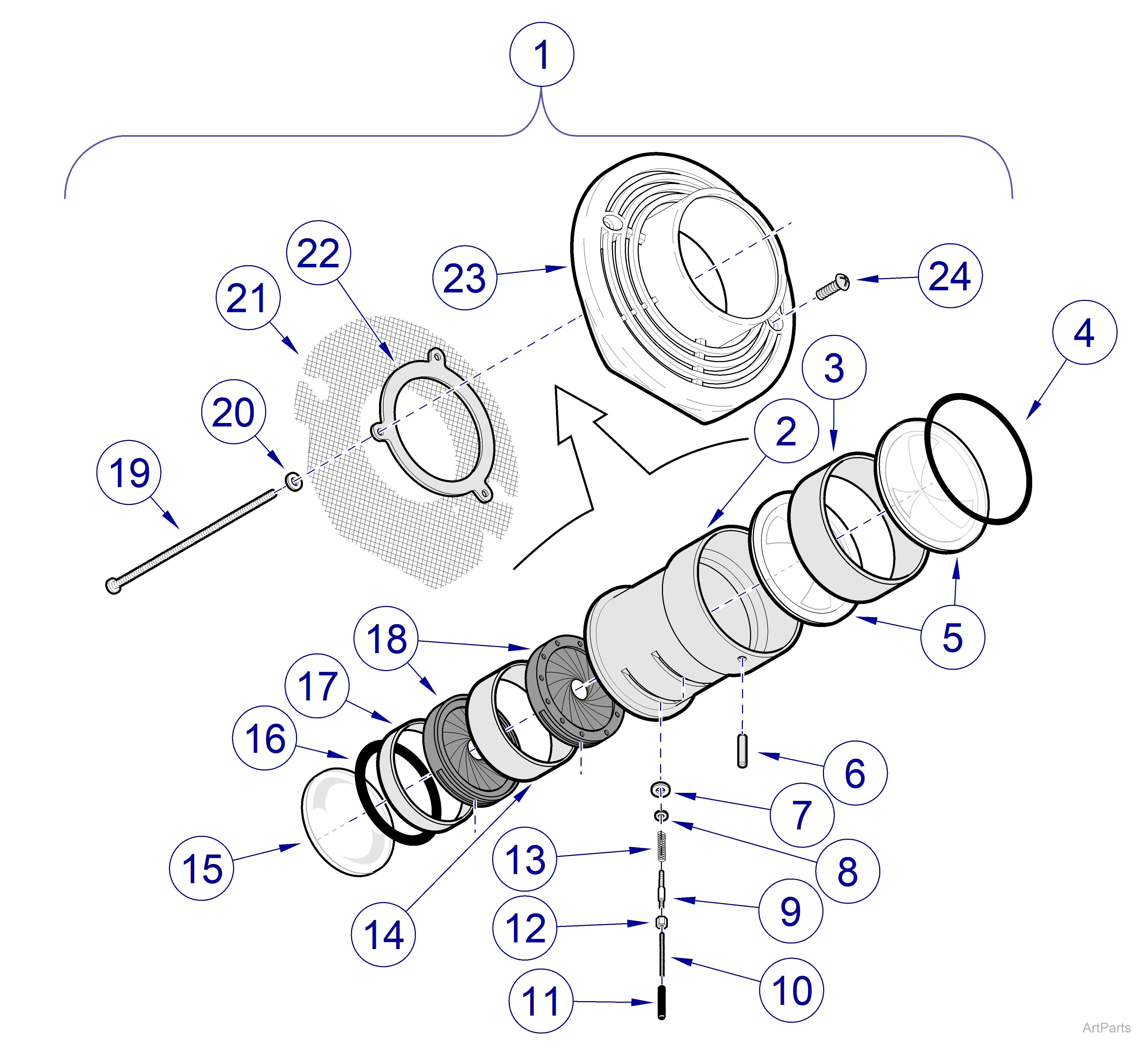

354 Light Optic Assembly
|
Model |
354 |
| Serial Number | All |
| 354 Light Optic Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-2394-00 | Optic Assembly - Includes items 2 thru 23 | 1 |
|
2 |
052-0309-00 | Optic Housing | 1 |
|
3 |
052-0307-00 | Lens Spacer | 1 |
|
4 |
014-0176-39 | O-ring | 1 |
|
5 |
053-0942-00 | Lens | 2 |
|
6 |
505-703705 | Roll Pin | 1 |
|
7 |
045-0001-93 | Washer | 2 |
|
8 |
045-0001-120 | Washer | 2 |
|
9 |
057-0505-00 | Iris Lever Shank | 2 |
|
10 |
040-0004-20 | Set Screw | 2 |
|
11 |
053-0268-03 | Vinyl End Cap | 2 |
|
12 |
041-0036-00 | Coupling Nut | 2 |
|
13 |
525-0024-14 | Spring | 2 |
|
14 |
052-0308-00 | Iris Spacer | 1 |
|
15 |
053-1045-00 | Cover Glass - Color Corrected | 1 |
|
16 |
014-0176-38 | O-ring | 1 |
|
17 |
052-0321-00 | Cover Spacer | 1 |
|
18 |
016-0751-00 | 50mm Iris Diaphragm | 2 |
|
19 |
040-0006-87 | Screw | 3 |
|
20 |
045-0001-21 | Washer | 3 |
|
21 |
016-0753-00 | Screen | 1 |
|
22 |
050-4025-00 | Retaining Disk | 1 |
|
23 |
053-0949-00 | Front Cover | 1 |
|
24 |
040-0006-55 | Screw | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
