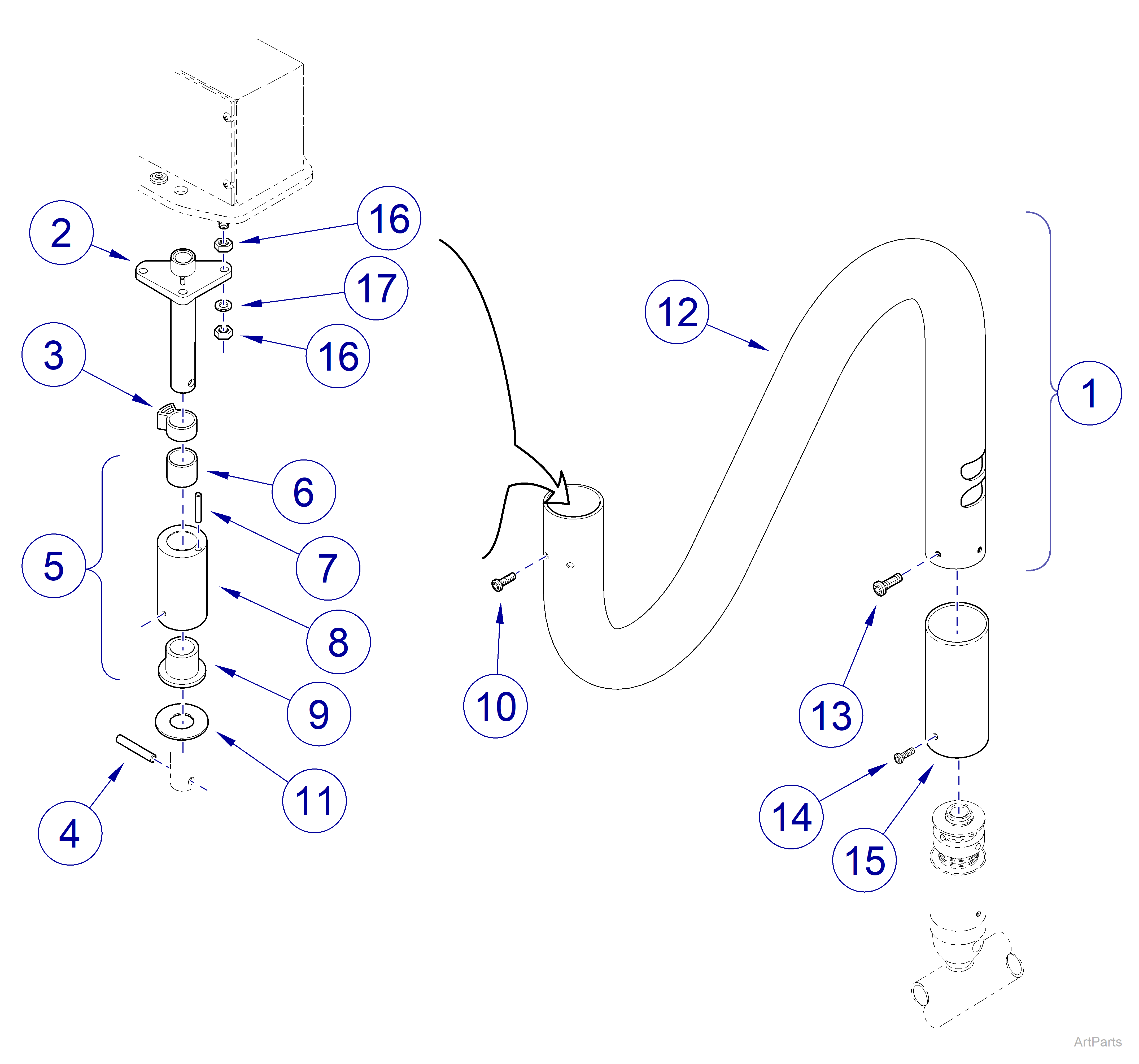

355 Light, Down Tube Assembly
Serial Number Range: All prefixes: KN, KP, KS, KT, LY, LZ, MA, MB, MD, ME,
MS1000 thru MS4246, MT1000 thru MT1090, MX1000 thru MX1112, and
MZ1000 thru MZ1167
|
Model |
355 |
|
Serial Number |
All prefixes: KN, KP, KS, KT, LY, LZ, MA, MB, MD, ME, MS1000 thru MS4246, MT1000 thru MT1090, MX1000 thru MX1112, and MZ1000 thru MZ1167 |
| 355 Light, Down Tube Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Down Tube Assembly Options - Includes items 2 thru 12 | ||
| 002-0572-00
|
Down Tube Assembly for 8 footceiling | 1 | |
|
|
002-0571-00 | Down Tube Assembly for 9 ft. ceiling | 1 |
|
2 |
030-1007-00 | Main Shaft Weldment | 1 |
|
3 |
002-0561-00 | Main Pivot Stop Kit - Includes item 7 | 1 |
|
4 |
042-0157-01 | Groove Pin | 1 |
|
5 |
029-1935-00 | Main Bearing Assembly - Includes items 6 thru 9 | 1 |
|
6 |
016-0540-02 | DX Bearing | 1 |
|
7 |
Groove Pin | NSS | |
|
8 |
057-0412-00 | Main Pivot Housing | 1 |
|
9 |
016-0131-15 | Flanged Bearing | 1 |
|
10 |
040-0010-109 |
Screw - Apply thread locking adhesive #042-0024-03 Torque: 45 in-lbs 5 N•M |
2 |
|
11 |
045-0001-113 | Washer | 1 |
|
12 |
Down Tube Options | ||
| 052-0314-00 | Down Tube for 8 ft. ceiling | 1 | |
| 052-0264-00 | Down Tube for 9 ft. ceiling | 1 | |
|
13 |
040-0010-109 | Screw | 2 |
|
14 |
040-0008-91 | Screw #8-32 x 3/8” | 1 |
|
15 |
053-0807-00 | Ball Pivot Sleeve | 1 |
|
16 |
041-0375-01 | Nut - Qty: single / double light | 6 / 12 |
|
17 |
045-0001-09 | Lockwasher - Qty: single / double light | 3 / 6 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: MS4247 thru MS99999, MT1091 thru MT99999,
MX1113 thru MX99999
MZ1168 thru MZ99999, and
V2200 thru present
|
Model |
355 |
| Serial Number | MS4247 thru MS99999, MT1091 thru MT99999, MX1113 thru MX99999, MZ1168 thru MZ99999, and V2200 thru present |
| 355 Light, Down Tube Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Down Tube Assembly Options - Includes items 2 thru 12 | ||
| 002-0572-00
|
Down Tube Assembly for 8 ft. ceiling | 1 | |
|
|
002-0571-00 | Down Tube Assembly for 9 ft. ceiling | 1 |
| 002-0885-00 | Down Tube Assembly for 10 ft. ceiling | 1 | |
|
2 |
030-1007-00 | Main Shaft Weldment | 1 |
|
3 |
002-0561-00 | Main Pivot Stop Kit - Includes item 7 | 1 |
|
4 |
042-0157-01 | Groove Pin | 1 |
|
5 |
029-1935-00 | Main Bearing Assembly - Includes items 6 thru 9 | 1 |
|
6 |
016-0540-02 | DX Bearing | 1 |
|
7 |
Groove Pin | NSS | |
|
8 |
057-0412-00 | Main Pivot Housing | 1 |
|
9 |
016-0131-15 | Flanged Bearing | 1 |
|
10 |
040-0010-109 |
Screw - Apply thread locking adhesive #042-0024-03 Torque: 45 in-lbs 5 N•M |
2 |
|
11 |
045-0001-113 | Washer | 1 |
|
12 |
Down Tube Options | ||
| 052-0314-00 | Down Tube for 8 ft. ceiling | 1 | |
| 052-0264-00 | Down Tube for 9 ft. ceiling | 1 | |
|
13 |
040-0010-109 | Screw | 2 |
|
14 |
040-0010-124 | Screw #10-24 x 3/8” | 1 |
|
15 |
053-0807-00 | Ball Pivot Sleeve | 1 |
|
16 |
041-0375-01 | Nut - Qty: single / double light | 6 / 12 |
|
17 |
045-0001-09 | Lockwasher - Qty: single / double light | 3 / 6 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
